ESM-QM57
32 ESM- QM57 User ’s Manual

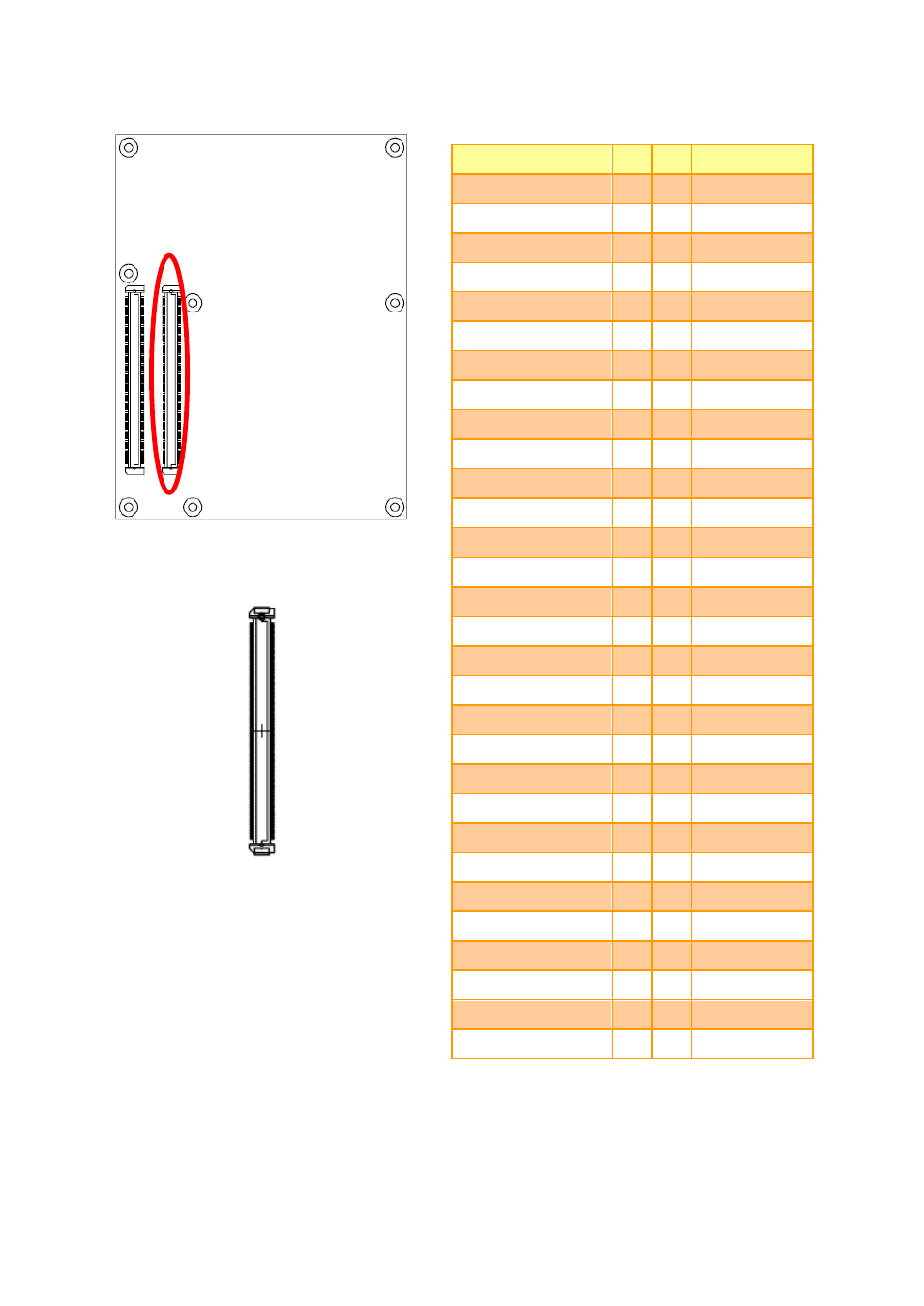

(Rear side)
Signal PIN PIN Signal
PEG_RX3 C61 D61 PEG_TX3
PEG_RX#3 C62 D62 PEG_TX#3
DDPB_AUX+ C63 D63 DDPC_AUX+
DDPB_AUX- C64 D64 DDPC_AUX-
PEG_RX4 C65 D65 PEG_TX4
PEG_RX#4 C66 D66 PEG_TX#4
HDMIC_CTRL_CLK C67 D67 GND
PEG_RX5 C68 D68 PEG_TX5
PEG_RX#5 C69 D69 PEG_TX#5
GND C70 D70 GND
PEG_RX6 C71 D71 PEG_TX6
PEG_RX#6 C72 D72 PEG_TX#6
SDVO/
HDMIB_CTRL_DATA
C73 D73
SDVO/
HDMIB_CTRL_CLK
PEG_RX7 C74 D74 PEG_TX7
PEG_RX#7 C75 D75 PEG_TX#7
GND C76 D76 GND
HDMIC_CTRL_DATA C77 D77 PDIAG_S
PEG_RX8 C78 D78 PEG_TX8
PEG_RX#8 C79 D79 PEG_TX#8
GND C80 D80 GND
PEG_RX9 C81 D81 PEG_TX9
PEG_RX#9 C82 D82 PEG_TX#9
HDMIB_HPD C83 D83 NC
GND C84 D84 GND
PEG_RX10 C85 D85 PEG_TX10
PEG_RX#10 C86 D86 PEG_TX#10
GND C87 D87 GND
PEG_RX11 C88 D88 PEG_TX11
PEG_RX#11 C89 D89 PEG_TX#11
GND C90 D90 GND
