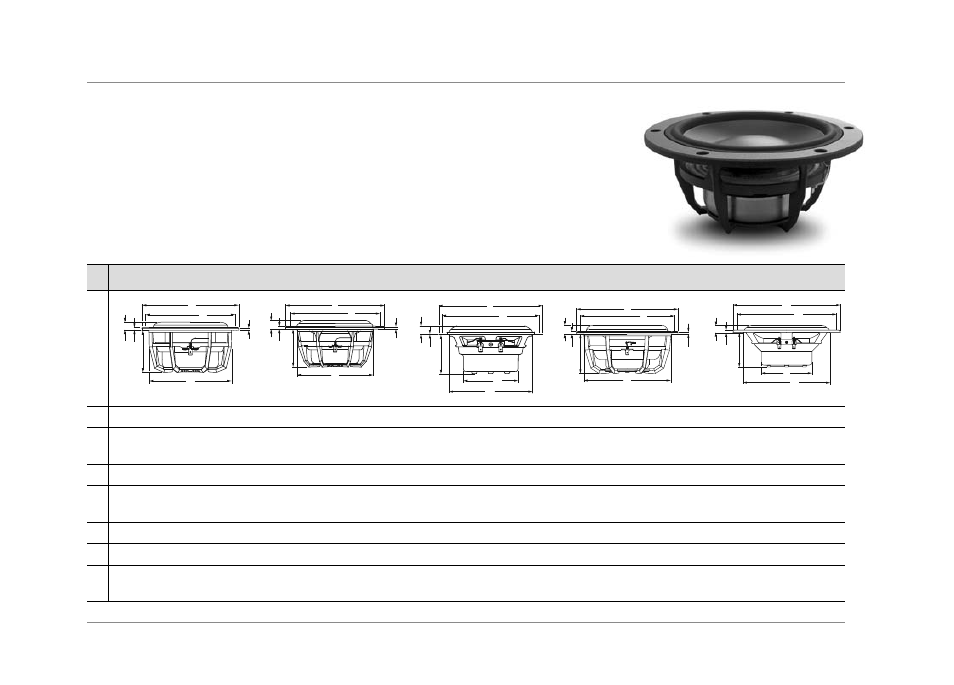

Technical specifications
8 Esotec / Esotar 2 Series
Woofers Esotec
MW 152 MW 162 MW 162 GT MW 172 MW 182
1 max. Ø 145.5 mm max. Ø 175 mm max. Ø 166 mm max. Ø 200 mm max. Ø 239 mm
2 6 holes: Ø 4.3 mm
on Ø 134.5 mm
6 holes: Ø 4.3 mm
on Ø 158 mm
4 holes: Ø 7.5 mm
on Ø 155 mm
6 holes: Ø 4.2 mm
on Ø 185.75 mm
6 holes: Ø 4.5 mm
on Ø 219 mm
3 3 mm 3 mm Ø 88 mm 4.2 mm Ø 113 mm
4 Mounting hole
min. Ø 124.5 mm
Mounting hole
min. Ø 136 mm
Baffle hole
min. Ø 134 mm
Mounting hole
min. Ø 172 mm
Mounting hole
min. Ø 195 mm
5 63 mm 67 mm 62 mm 77.9 mm 75 mm
6 4.3 mm 5 mm 1.5 mm 5.4 mm 5.9 mm
7 13 mm
(at max. cone excursion)
15 mm
(at max. cone excursion)
15 mm
(at max. cone excursion)
17 mm
(at max. cone excursion)
16 mm
(at max. cone excursion)
