Avalue LPC-1009 User Manual
Page 23
Quick Reference Guide
LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 23

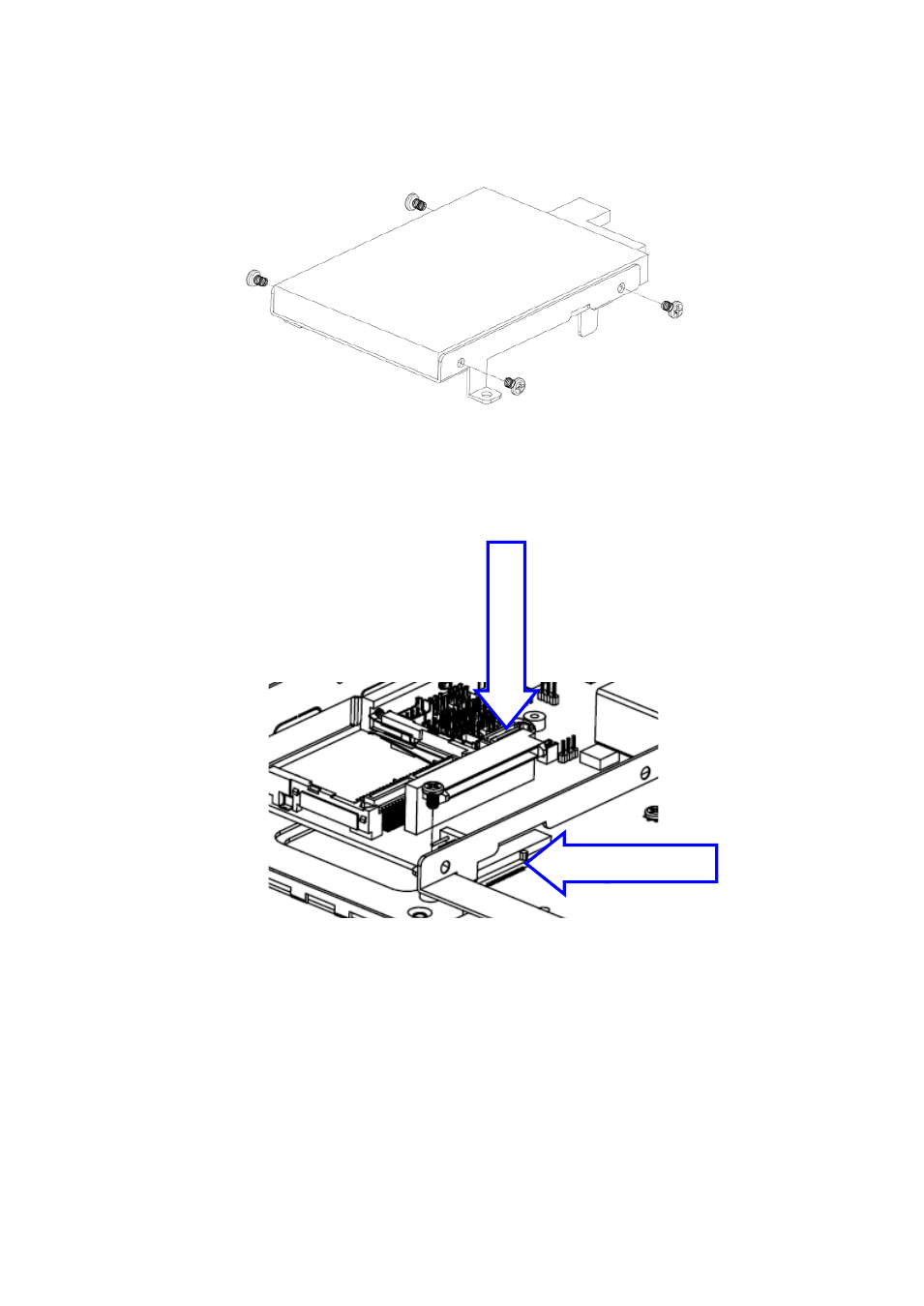

Step 3-2. Insert the HDD into the bracket and fasten 4 screws.
Step 3-3.
SATA HDD Installation:
By default, the SATA cables had been inserted to the
according connectors. Just connect to SATA HDD with the two cables.
S
AT
A con
n
e
cto
r 1
MPCIE connector
2
