Avalue LPC-1009 User Manual
Page 22
LPC-1009/1209/1509/1709/1909 Series
22 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide
2.3 Installing Hard Disk & Memory (For LPC-1509/1709/1909)
Step 1.
Memory Installation:

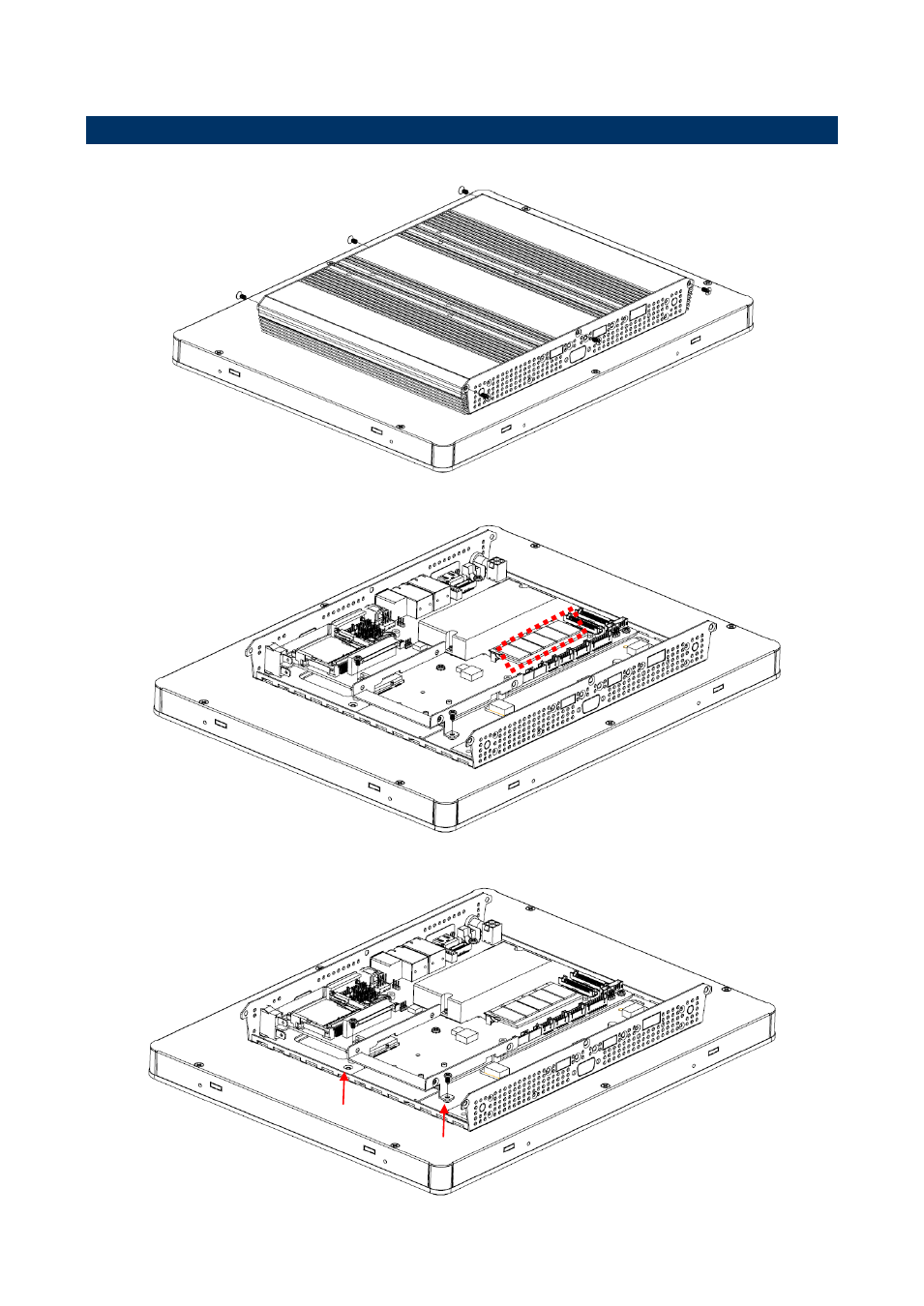

Unfasten 6 screws from the case to take off the top chassis.
Step 2. Insert the SODIMM into the memory socket.
Step 3-1.
HDD Installation:
Unfasten 2 screws of the HDD bracket and take it off.
