Quick Reference Guide
LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 21

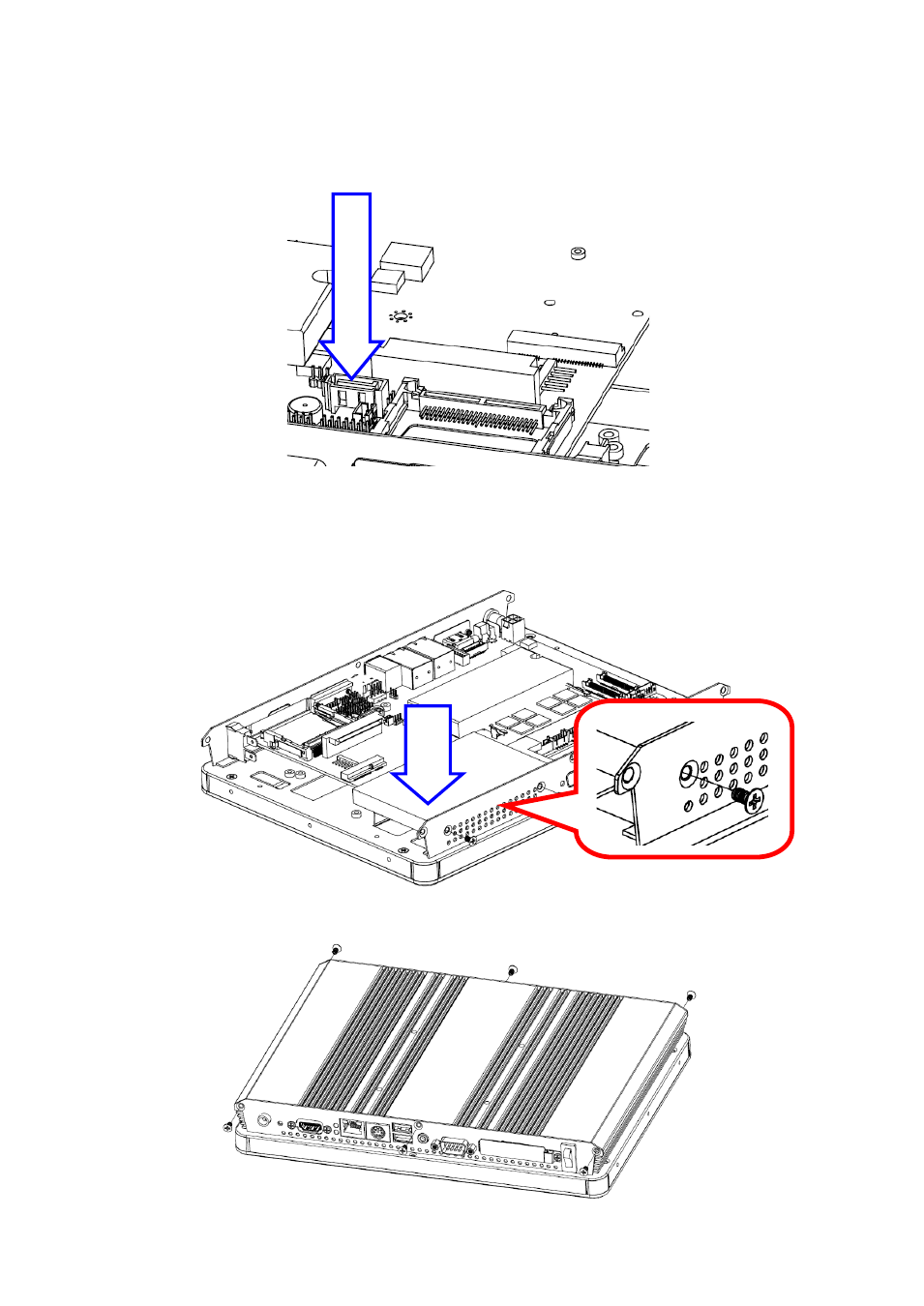

Step 3-1. SATA HDD Installation: By default, the SATA cables had been inserted to the
according connectors. Just connect to SATA HDD with the two cables.
Step 3-2. Insert the HDD into the Drive Bay. Remember to place the HDD down to the
bottom exactly in order to screw the device tightly.
Step 4. Place back the chassis with 6 screws locked.
HDD
S
AT
A con
n
e
cto
r 1
