ACP-IMX6POS

User’s Manual

ACP-IMX6POS

User’s Manual 21

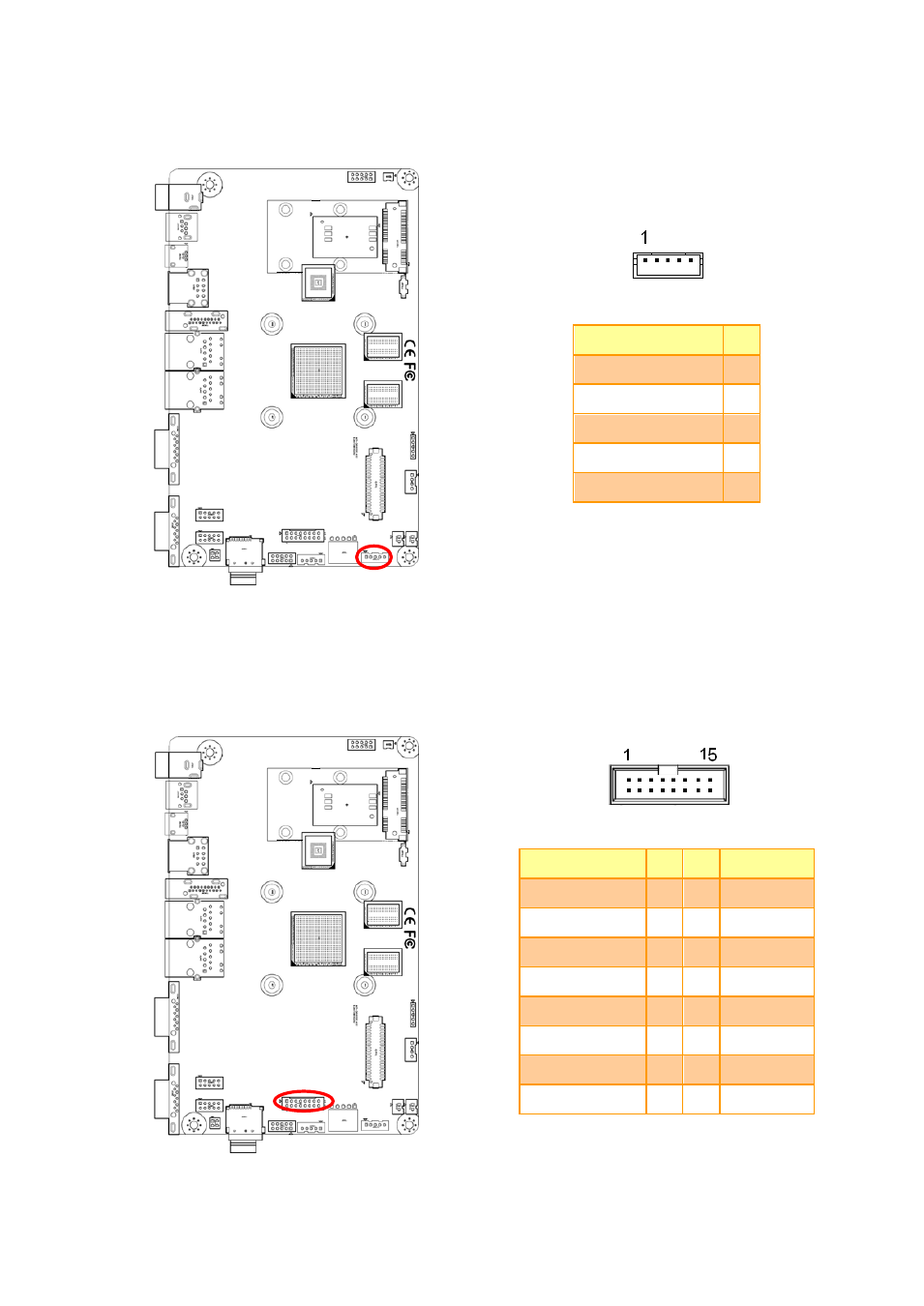

2.3.10

LCD inverter connector (JBKLT1)

Signal

PIN

+12V

1

GND

2

BPEN(3.3V)

3

BKLCTL(3.3V)

4

+5V

5

2.3.11

VGA connector (JVGA1)

Signal

PIN PIN

Signal

+5V

1

2

VRED

GND

3

4

VGREEN

NC

5

6

VBLUE

VDATA

7

8

NC

VHS

9

10

GND

VVS

11

12

GND

VCLK

13

14

GND

GND

15

16

GND
