2.3.2

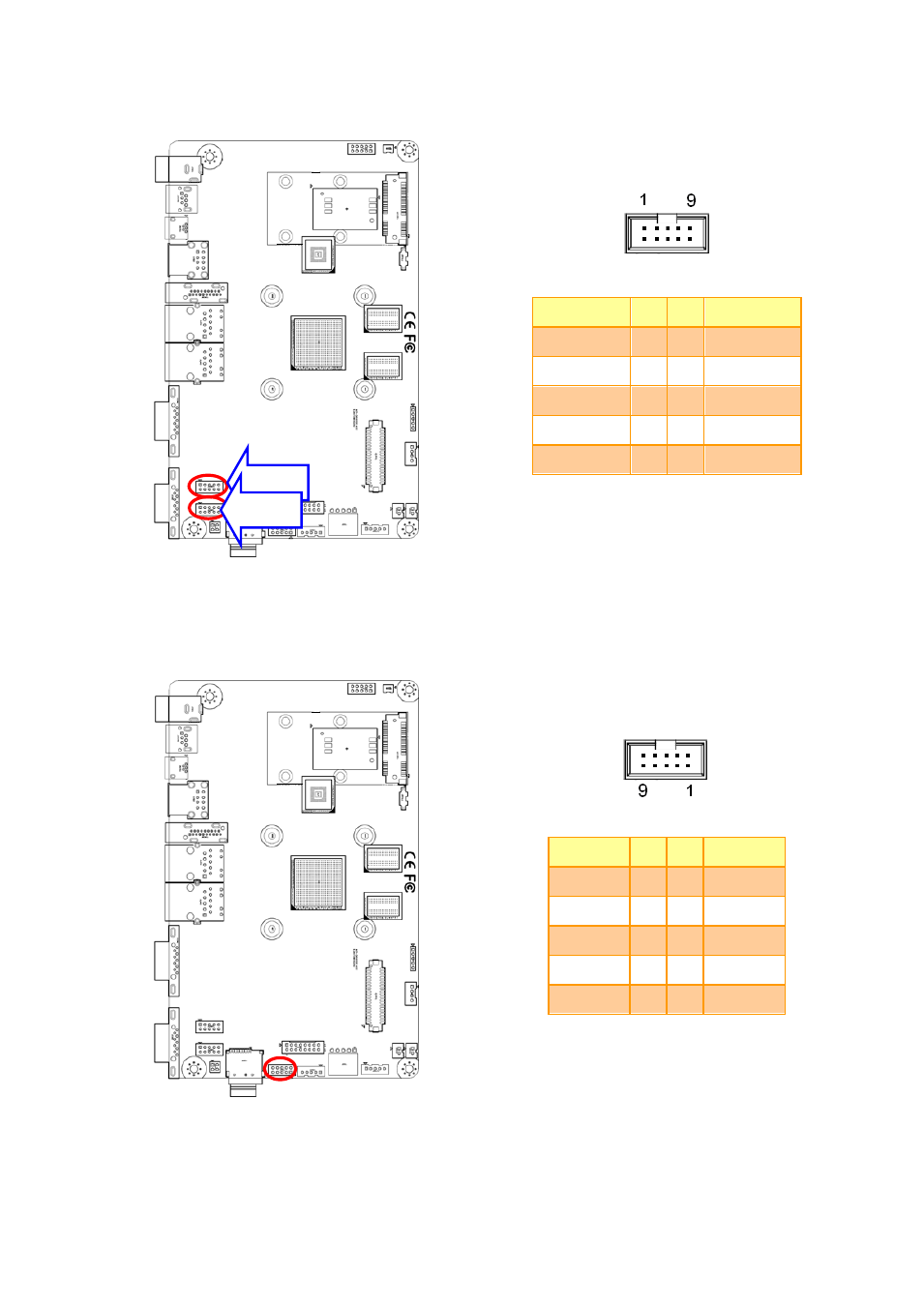

Serial port connector 3/4 (JCOM3/4)

Signal

PIN PIN

Signal

COM_DCD#

1

2

COM_RXD

COM_TXD

3

4

COM_DTR#

GND

5

6

COM_DSR#

COM_RTS#

7

8

COM_CTS#

COM_RI_A

9

10

GND

2.3.3

USB connector 1 (JUSB1)

Signal

PIN PIN

Signal

+5V

1

2

+5V

USB_NP2

3

4

USB_NP1

USB_PP2

5

6

USB_PP1

GND

7

8

GND

GND

9

10

GND

JCOM4

JCOM3
