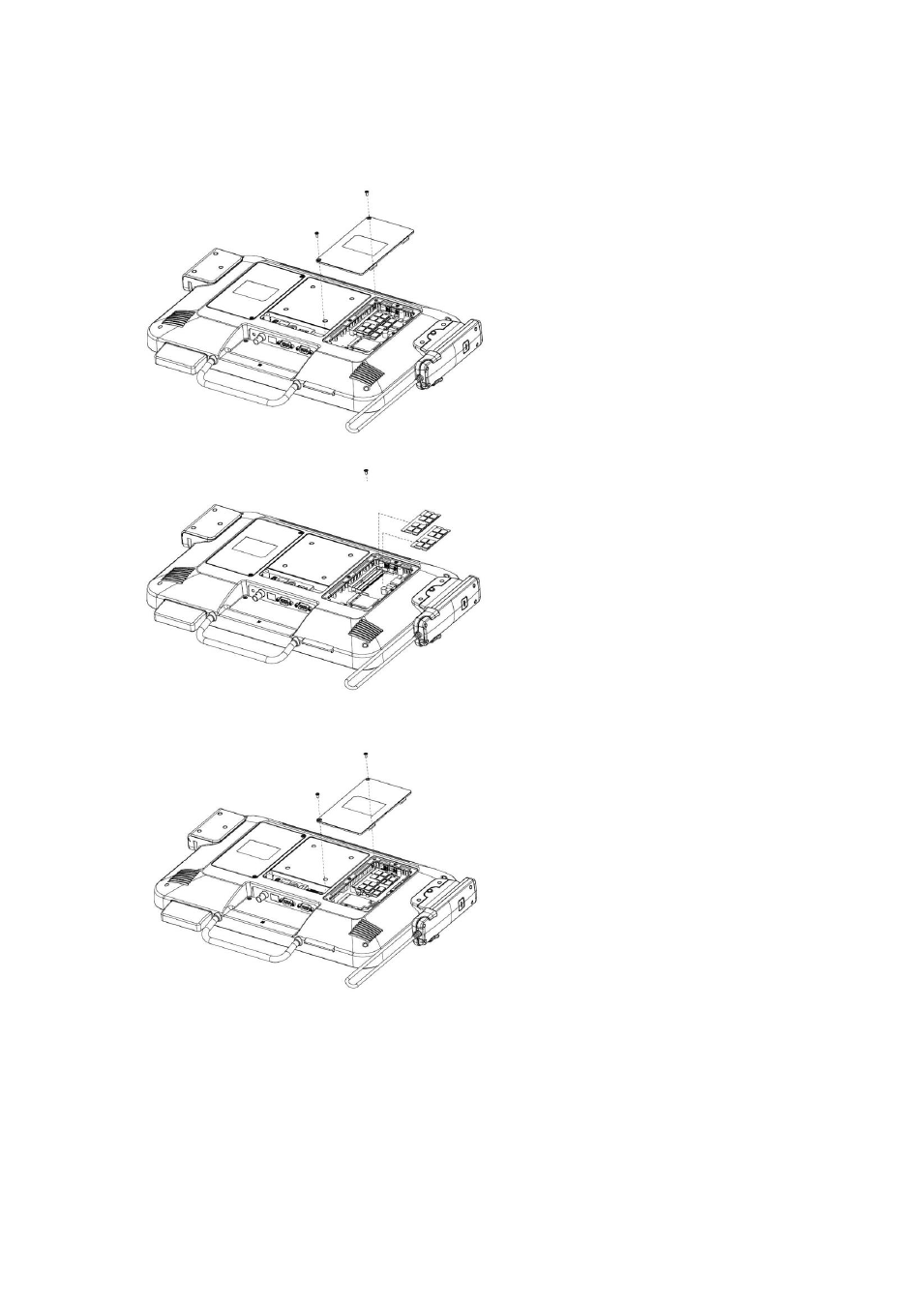

4.1 Adding/Removing/Replacing Memory
1. Remove the two screws from
the service door.
2. Open the service door.
1. Push the two latches of the
retaining clips away from the
memory module.
2. The memory module will pop
up at an angle.
3. Lift the memory module from
the memory socket.
1. Align the correct location of
the key slot on the connector
edge.
2. Slide the memory module into
the memory socket.
3. Push the memory module
down until the retaining clip
latches catch.
4. Close the service door.
5. Insert the two screws on the
service door.
Note: Please use the correct type of memory on both memory sockets.
