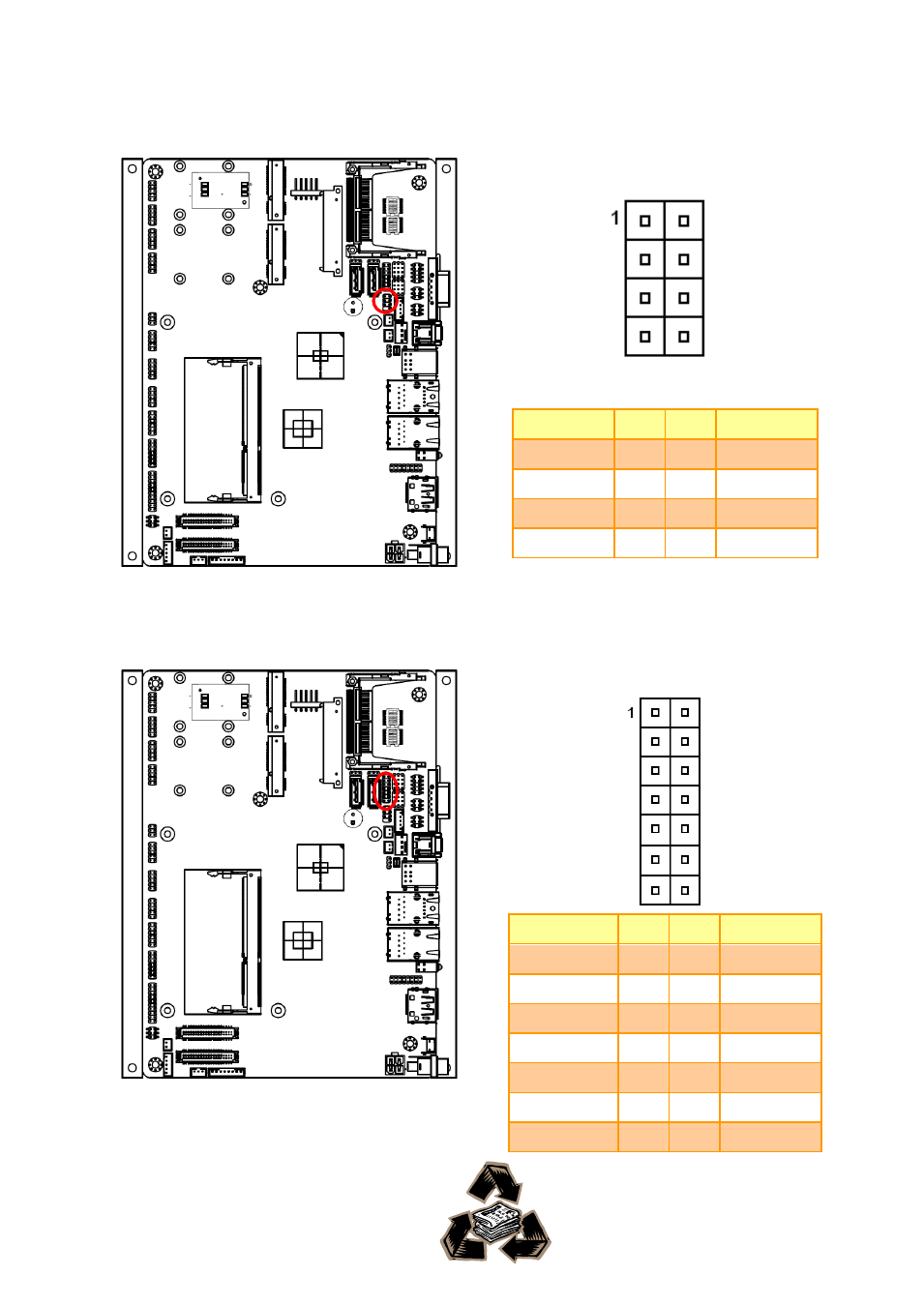

EBM-A50M Quick Installation Guide

24 EBM-A50M Quick Installation Guide

2.3.25

SPI connector (JSPI)

Signal

PIN

PIN

Signal

+3.3V

1

2

GND

CS#

3

4

CLK

DI_R

5

6

DO

HOLD

7

2.3.26

Low Pin Count Interface connector (JLPC)

Signal

PIN

PIN

Signal

AD0

1

2

+3.3V

AD1

3

4

A_RST#

AD2

5

6

FRAME#

AD3

7

8

JLPC

LPC_SERIRQ

9

10

GND

+5V

11

12

GND

+5V

13

14

LDRQ1#
