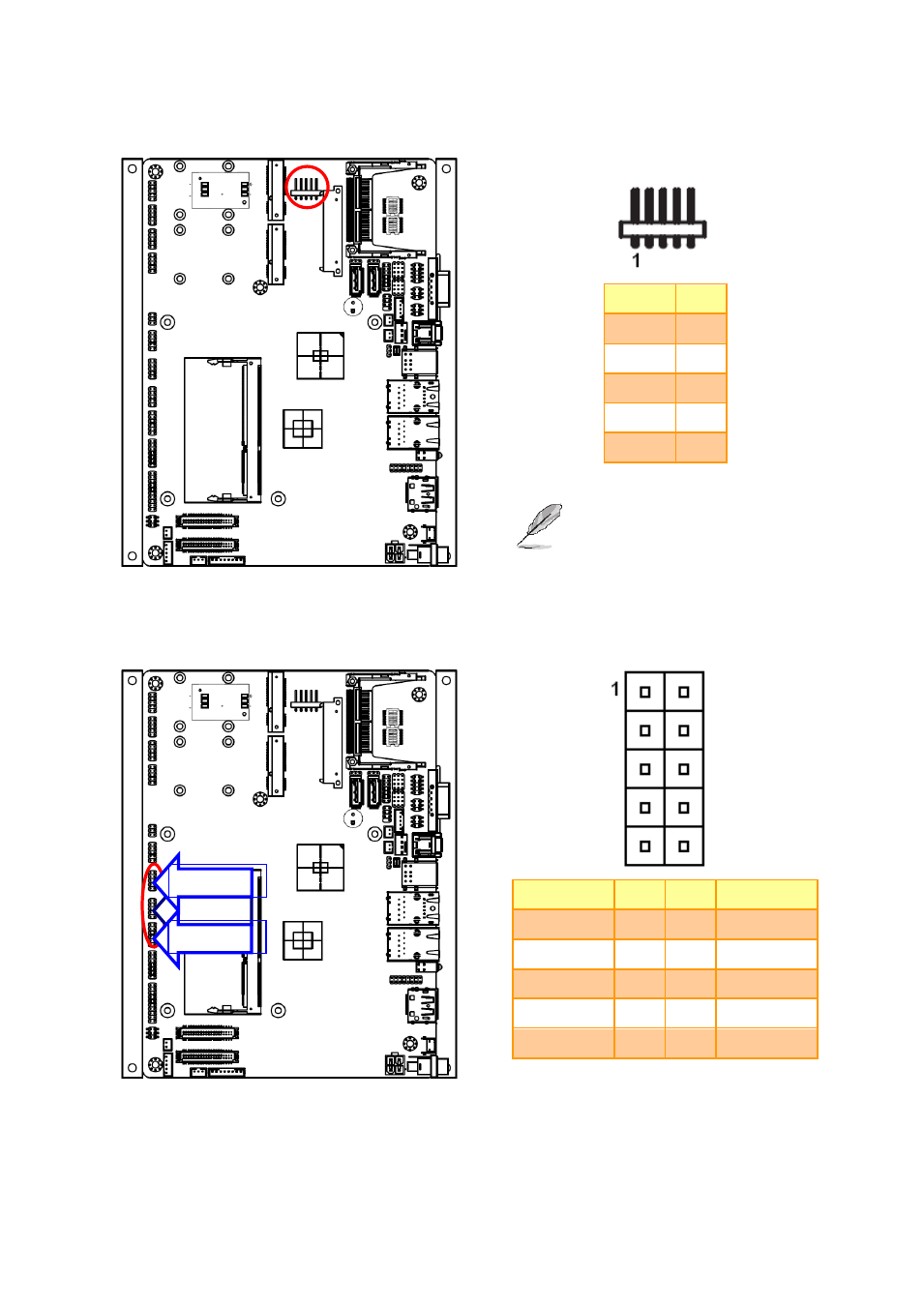

2.3.23 Touch panel connector (JTOUCH)
Signal PIN
UL 1
UR 2
PROBE 3
LR 4
LL 5
NOTE: Under 4W situation
UL=X+, UR=Y+, LR=Y-, LL=X-
2.3.24 USB connector 2&3, 4&5, 6&7 (JUSB1/ JUSB2 / JUSB3)
Signal PIN PIN Signal
+5V 1 2 GND
D- 3 4 GND
D+ 5 6 D+
GND 7 8 D-
GND 9 10 +5V
Note: JUSB3-3.3V
5V is (Optional)
JUSB2
JUSB1
JUSB3
