2.3.12

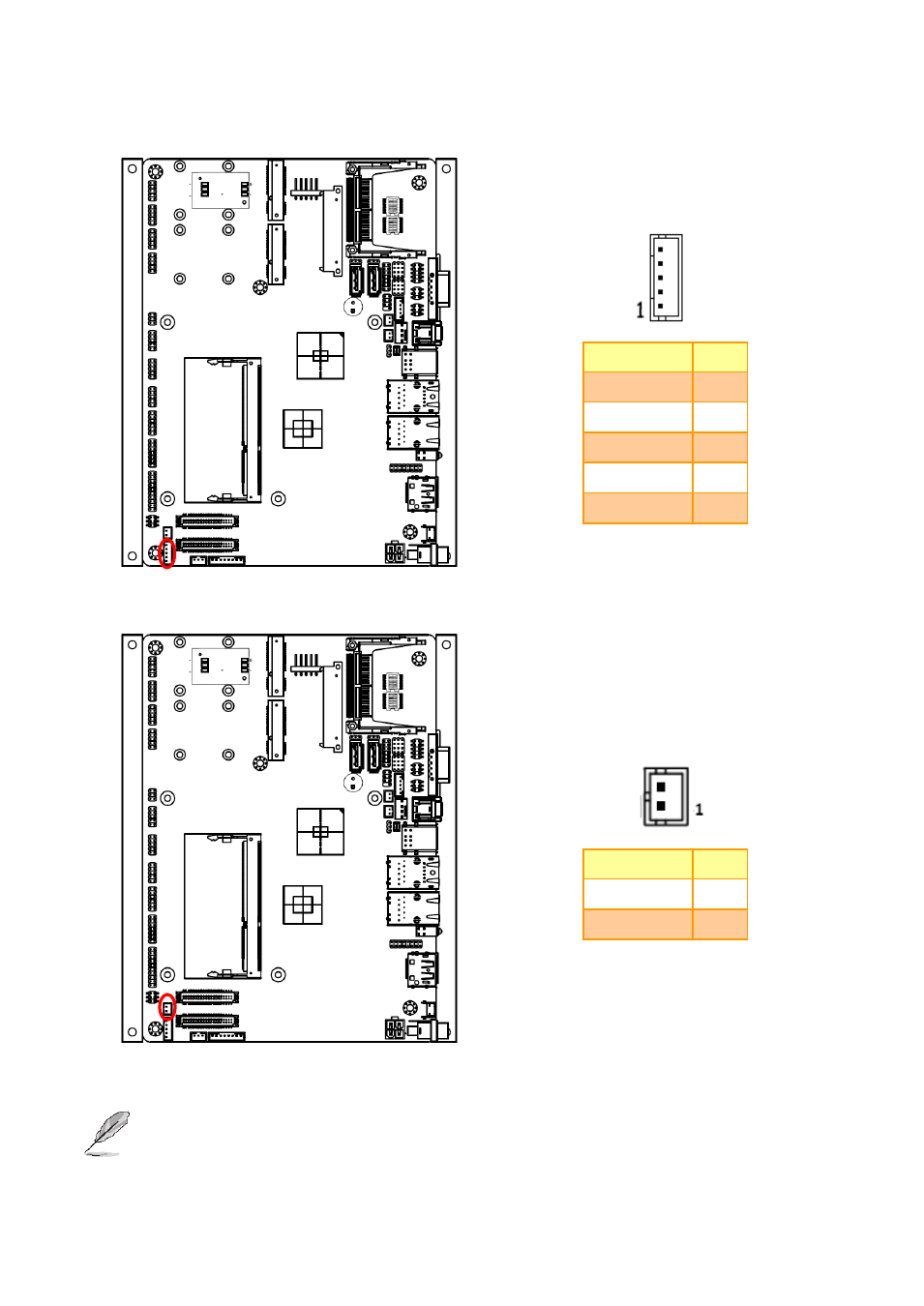

LCD Inverter connector (JBKL1)

Signal

PIN

+5V

5

BRIGHT

4

BLK_ON

3

GND

2

+12V

1

2.3.13

LCD Inverter connector (JBKL2)

Signal

PIN

GND

2

+12V

1

Note:

For inverters with adjustable Backlight function, it is possible to control the LCD brightness through
the VR signal controlled by JVR. Please see the JVR section for detailed circuitry information.
