Quick Installation Guide
EBM-PNV (B.2) Quick Installation Guide 5
2.2 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.

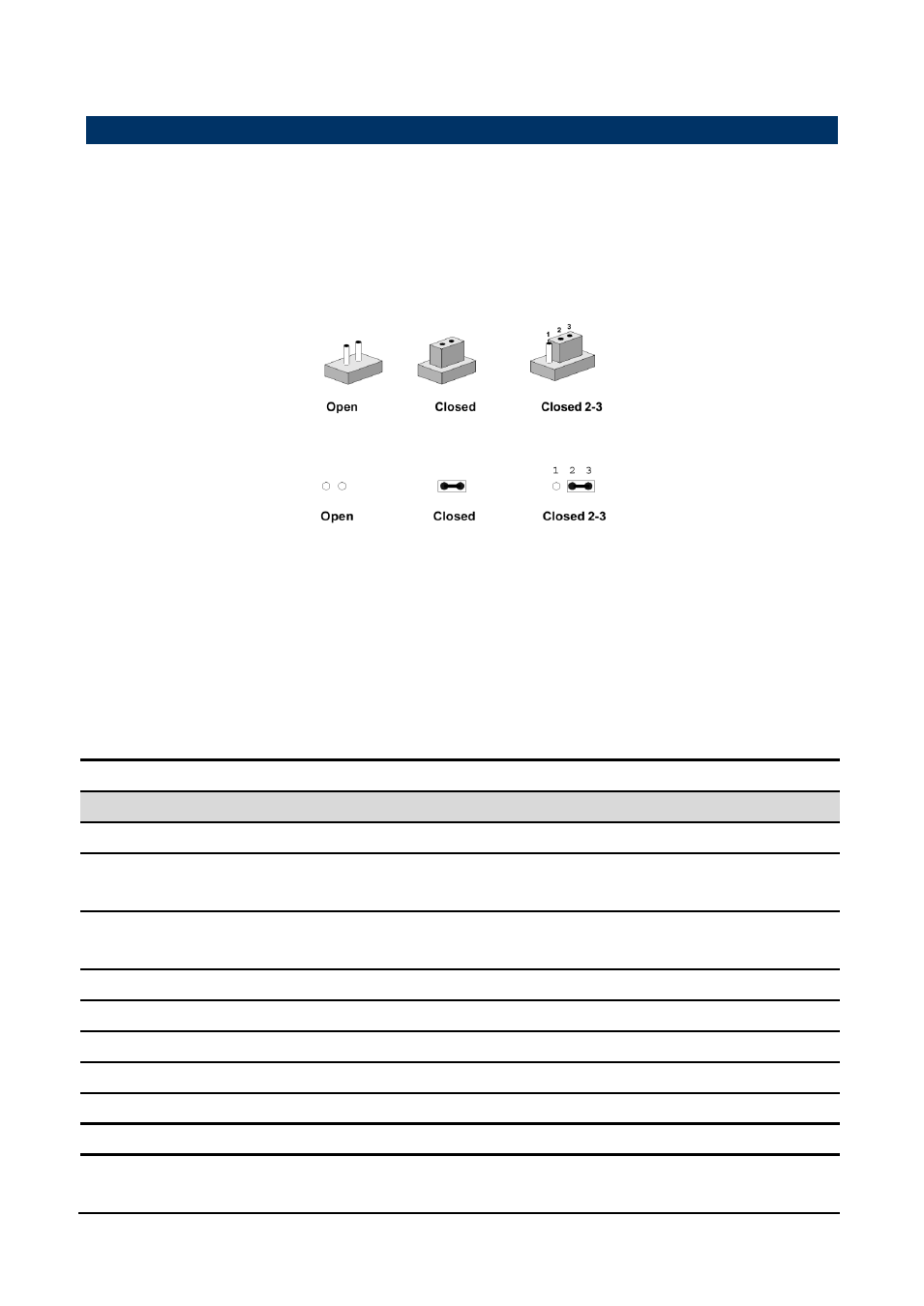

The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board ’s jumpers and connectors.
Jumpers
Label Function Note
JBAT Clear CMOS 3 x 1 header, pitch 2.54mm
JP1
Serial port 1
– RS232/ 422/ 485 mode
select
4 x 3 header, pitch 2.0mm
JP2
Serial port 2
– RS232/ 422/ 485 mode
select
4 x 3 header, pitch 2.0mm
JP4 SATA DOM Pin 7 Power mode selector 3 x 1 header, pitch 2.0mm
JRI1 Serial port 1 pin9 signal select 3 x 2 header, pitch 2.0mm
JRI2 Serial port 2 pin9 signal select 3 x 2 header, pitch 2.0mm
JVR1 LCD backlight brightness adjustment 3 x 2 header, pitch 2.0mm
JVR2 LCD backlight brightness adjustment 3 x 2 header, pitch 2.0mm
SW1 Multi-function select DIP switch 6pin
SW2
Serial port 1/ 2 – RS232/ 422/ 485 mode
select
DIP switch 6pin
