EBM-PNV (B.2) Quick Installation Guide

10 EBM-PNV (B.2) Quick Installation Guide

2.3.7

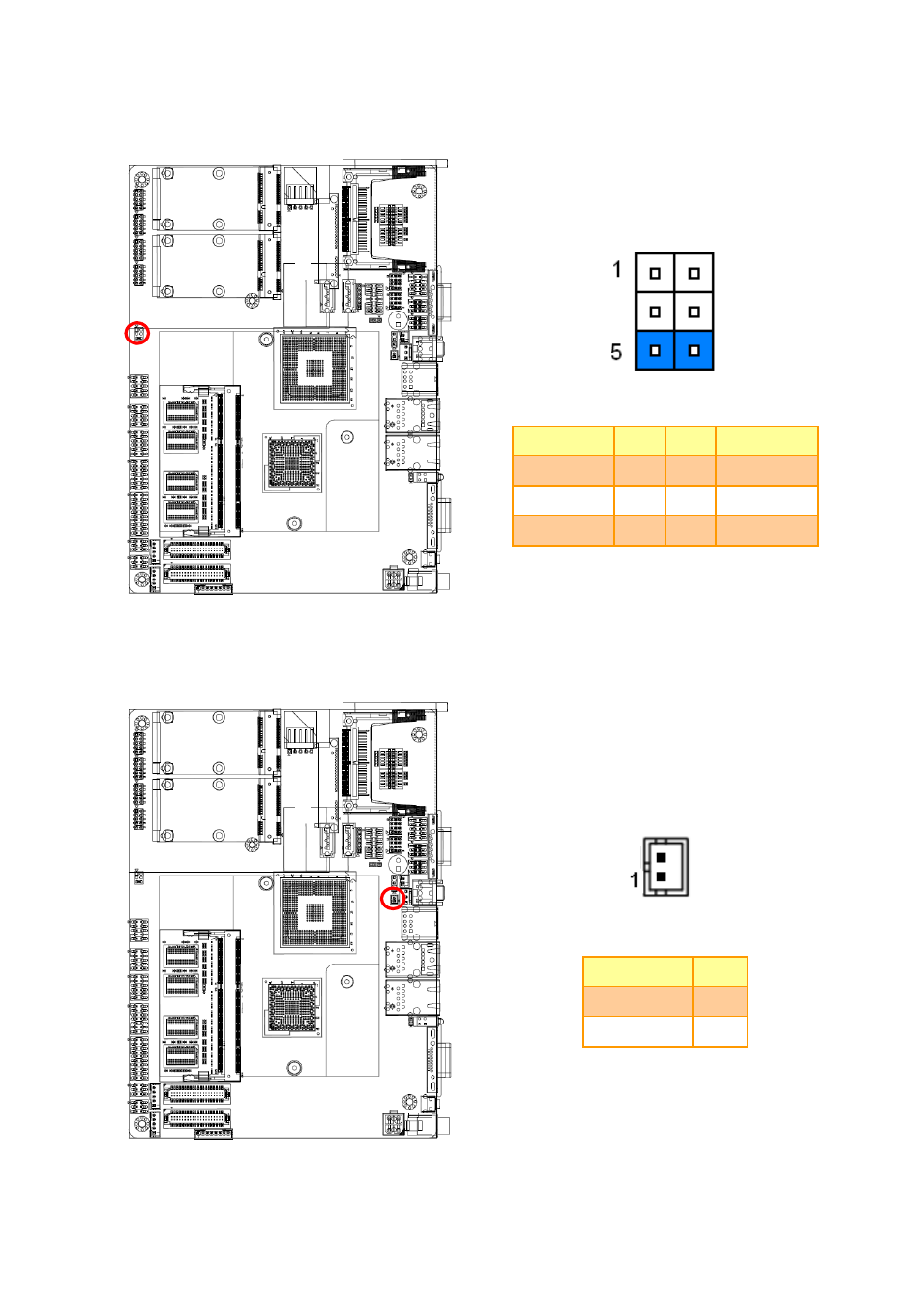

Handset speaker Mode selector (JHS)

Signal

PIN

PIN

Signal

HS_MIC+

1

2

HS_MIC-

HS_OUT+

3

4

GND

HOOK

5

6

GND

2.3.8

Battery connector (BAT)

Signal

PIN

GND

2

BAT

1
