Quick Installation Guide

EBM-PNV (B.2) Quick Installation Guide

23

2.3.24

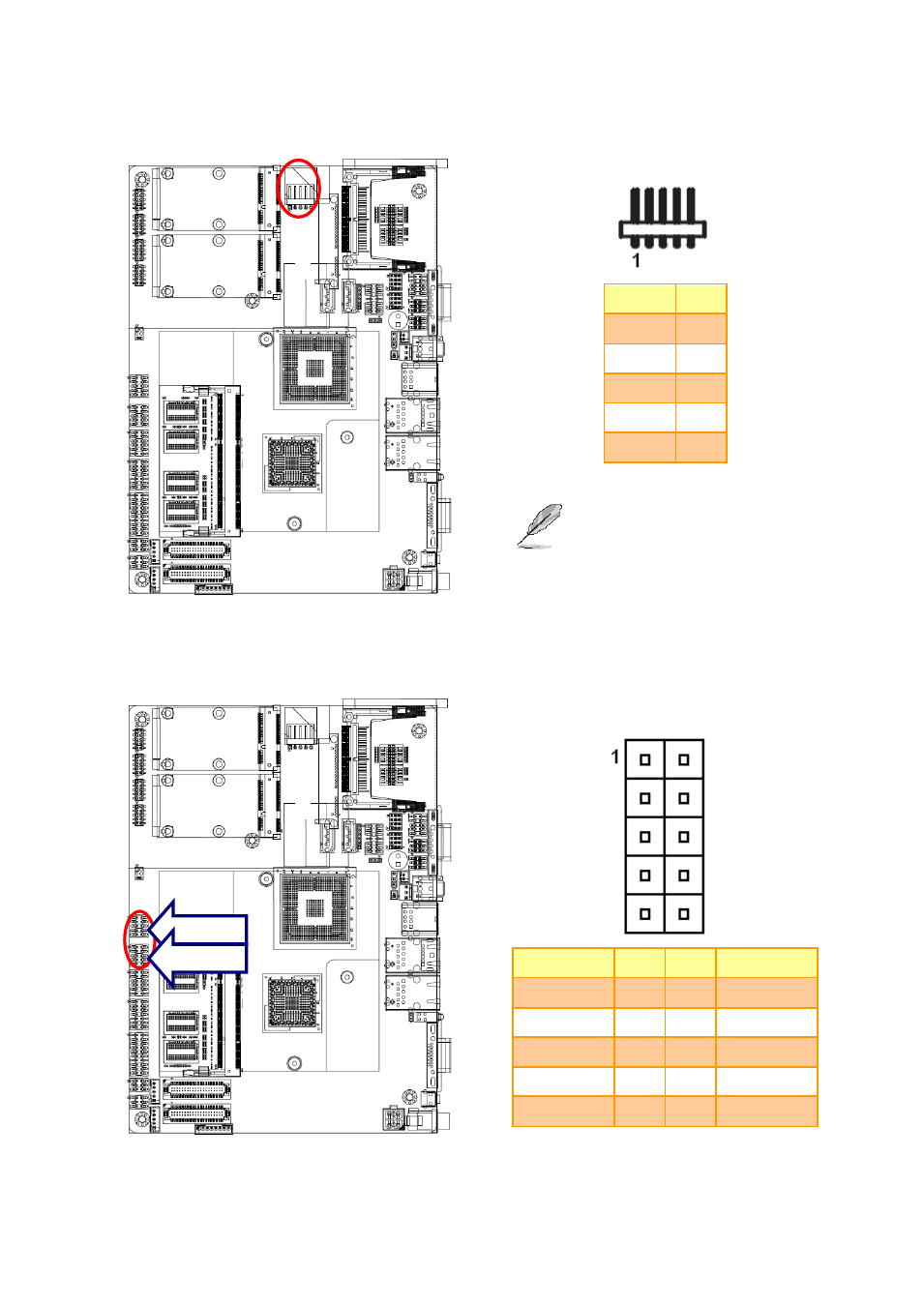

Touch panel connector (JTOUCH)

Signal

PIN

UL

1

UR

2

PROBE

3

LR

4

LL

5

NOTE: Under 4W situation

UL=X+, UR=Y+, LR=Y-, LL=X-

2.3.25

USB connector 4&5, 2&3 (JUSB1/ JUSB2)

Signal

PIN

PIN

Signal

+5V

1

2

GND

D-

3

4

GND

D+

5

6

D+

GND

7

8

D-

GND

9

10

+5V

JUSB2

JUSB1
