ECM-LX800W Series
54 ECM-LX800W Series User ‘s Manual

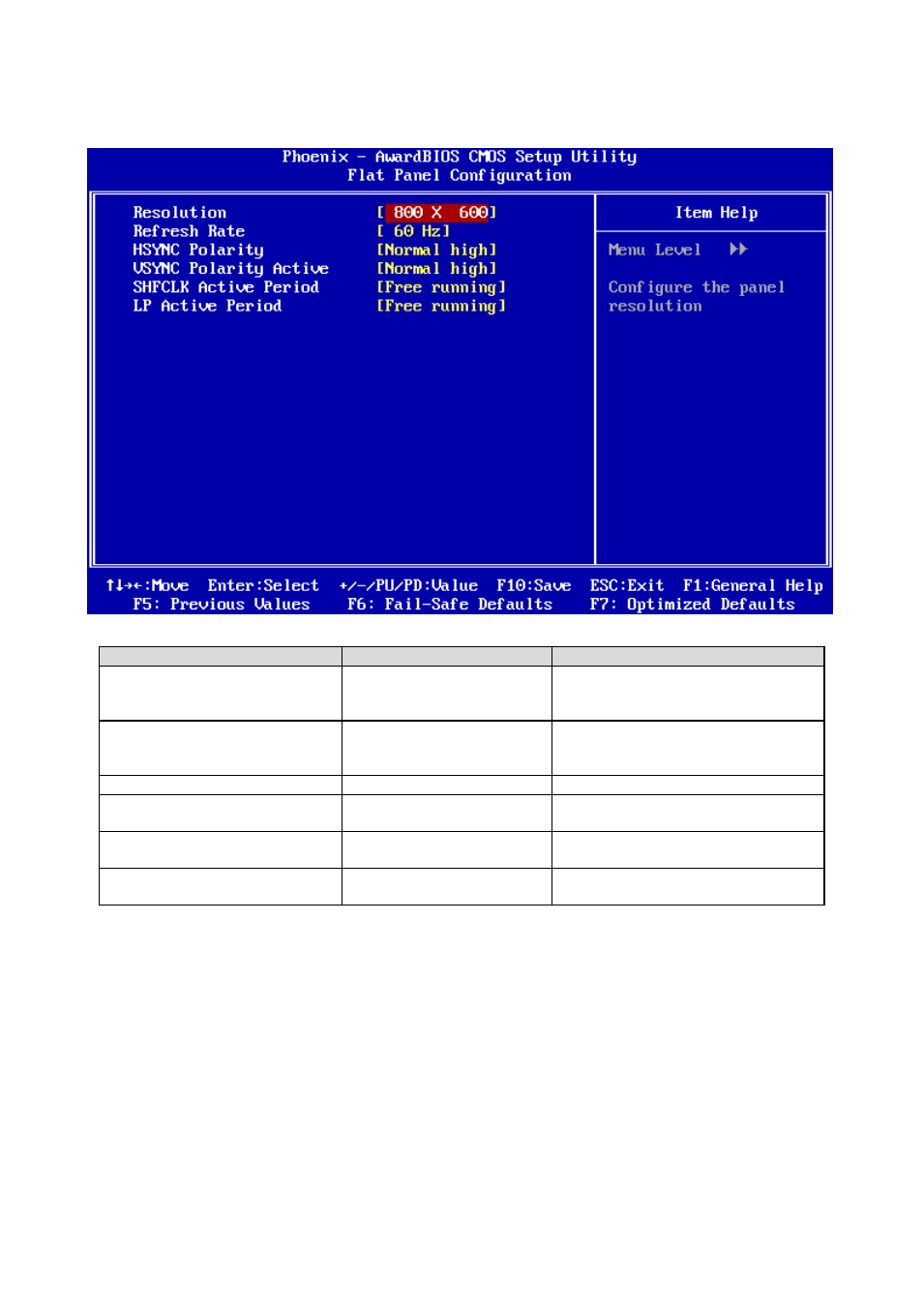

3.5.3.1 Flat Panel Configuration
Item Options Description
Resolution
320x240, 640x480, 800x600,
1024x768, 1152x864,
1280x1024, 1600x1200
This item allows to select the
resolution.
Refresh Rate
60Hz, 70Hz, 72Hz, 75Hz,
85Hz, 90Hz, 100Hz
This refresh rate is only the number of
time the image is being refreshed on
the monitor screen.
HSYNC Polarity Normal High, Normal Low Select polarity of HSYNC signals.
VSYNC Polarity Active Normal High, Normal Low
Set the polarity of VSYNC signals
active.
SHFCLK Active Period
Active only,
Free running
Shift clock or pixel clock for the flat
panel data.
LP Active Period
Free running
Active running
Latch Pulse is the line pulse or latch
pulse for the flat panel data.
