URR
Enabled
Disabled
PCI Express Unsupported
Request Reporting
Enable/Disable.
FER
Enabled
Disabled
PCI Express Device Fatal Error
Reporting Enable/Disable
NFER
Enabled
Disabled
PCI Express Device Non-Fatal
Error Reporting Enable/Disable.
CER
Enabled
Disabled
PCI Express Device correctable
Error Reporting Enable/Disable
CTO
Enabled
Disabled
PCI Express Completion Timer
TO Enable/Disable
SEFE
Enabled
Disabled
Root PCI Express System Error
on Fatal Error Enable/Disable
SENFE
Enabled
Disabled
Root PCI Express System Error
on Non-Fatal Error
Enable/Disable
SECE
Enabled
Disabled
Root PCI Express Error on
correctable Error Enable/Disable
PME SCI
Enabled
Disabled
PCI Express PME SCI
Enable/Disable.
Hot Plug
Enabled
Disabled
PCI Express Hot Plug
Enable/Disable
Extra Bus Reserved
0 - 7
Extra Bus Reserved (0 -7)for
bridges behind this Root Bridge.
Reserved Memory 1 – 20MB
Reserved memory and
Prefetchable Memory (1-20MB)
Range for this Root Bridge.
Reserved I/O 4K/8K/12K/16K/20K
Reserved I/O
(4K/8K/12K/16K/20K) Range for
this Root Bridge.

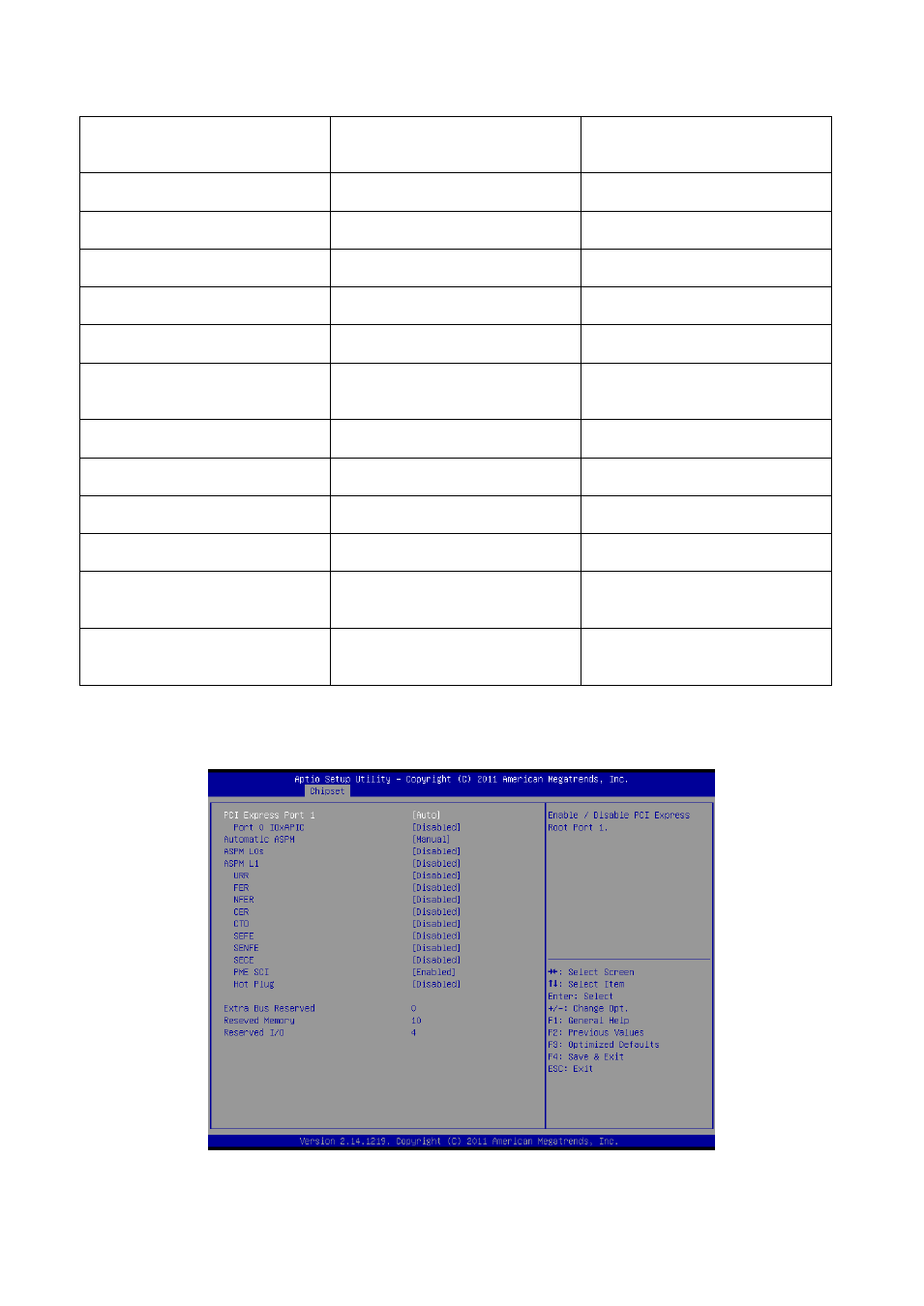

3.6.3.2.3 PCI Express Root Port 1/2/3
