ECM-CDV User ’s Manual
ECM-CDV User ’s Manual 27

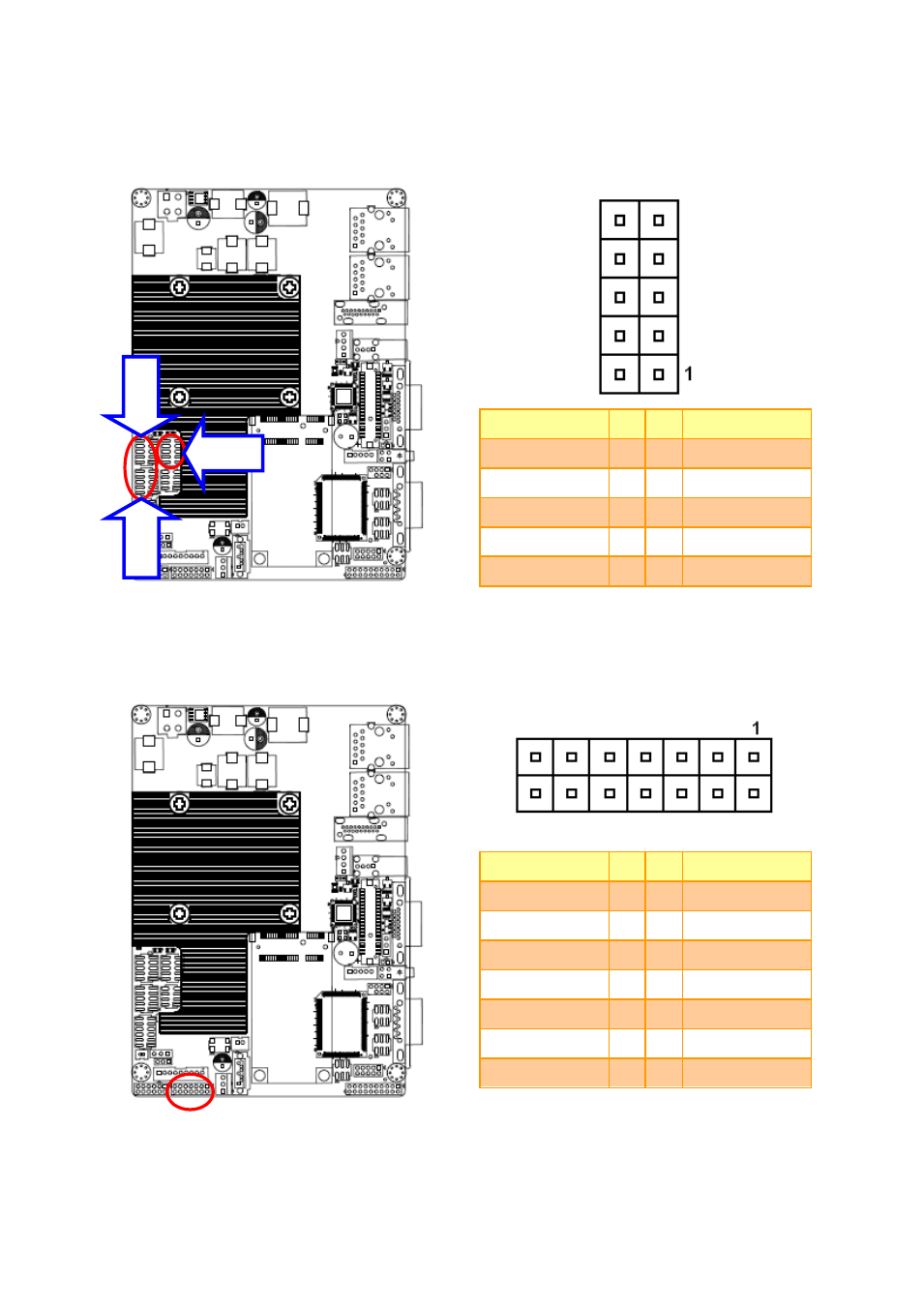

2.3.13 USB connector 0&1 / 2&3 / 4&5 (USB2/ 3/ 4)
Signal PIN PIN Signa
+5V 10 9 GND
USB_NP1/3/5 8 7 GND
USB_PP1/3/5 6 5 USB_PP0/2/4
GND 4 3 USB_NP0/2/4
GND 2 1 +5V
2.3.14 LPC connector (LPC1)
Signal PIN PIN Signal
AD0 1 2 +V3P3_S
AD1 3 4 PLTRST#
AD2 5 6 LPC_FRAME#
AD3 7 8 LPC1_PCI_CLK
SERIRQ 9 10 GND
+V5S 11 12 GND
+V5A 13 14 LPC_LDRQ0#
USB3
US
B2
US
B4
