ECM-DX2 Quick Installation Guide

ECM-DX2 Quick Installation Guide 19

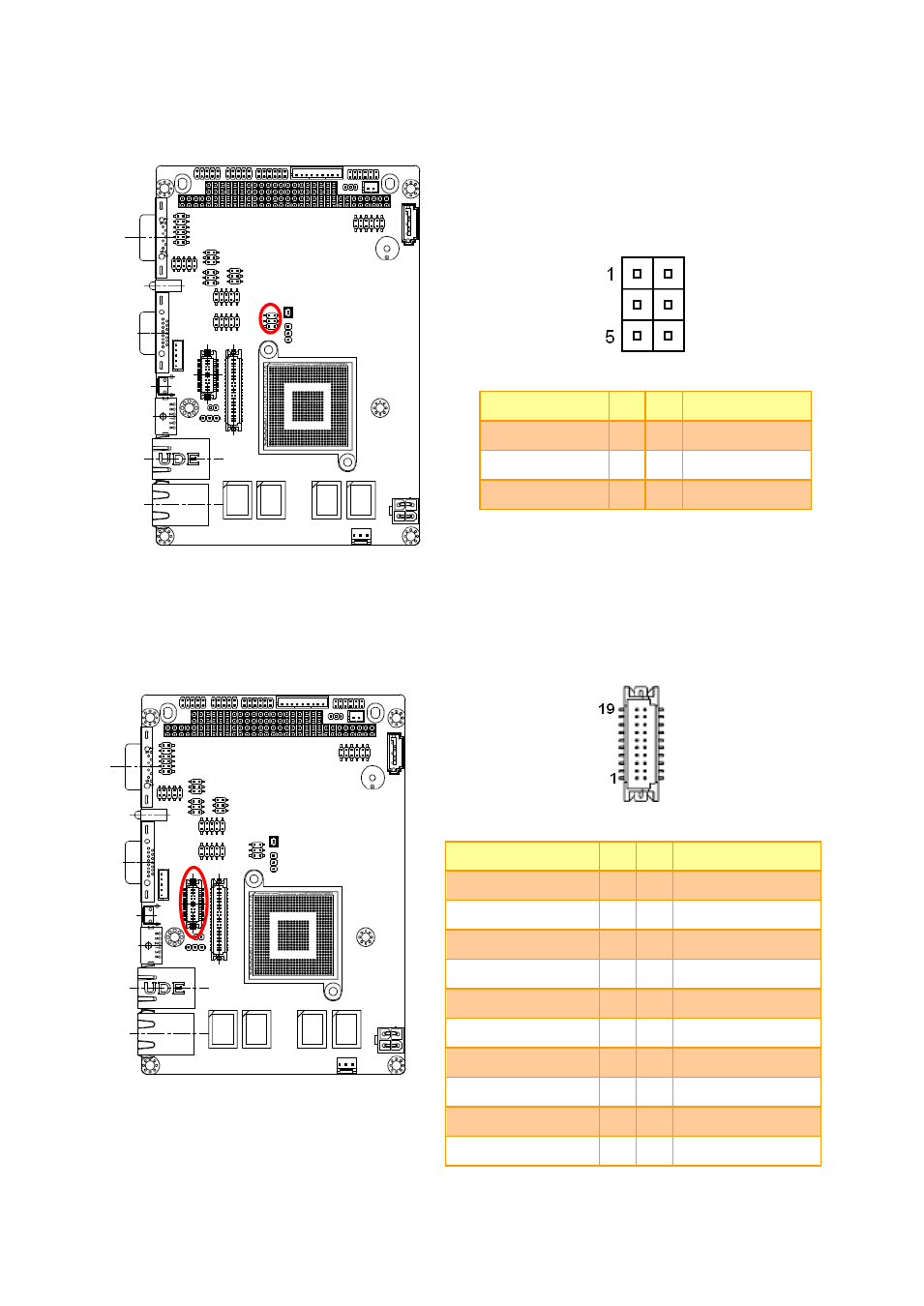

2.3.19 Reserved for Debug (JTG1)

Signal

PIN PIN

Signal

+5V

1

2

GND

TD0

3

4

TCK

TDI

5

6

TMS

2.3.20 LVDS connector (LVDS1)

Signal

PIN PIN

Signal

+3V

19

20

+5V

+3V

17

18

+5V

LVDS_DDC_DATA

15

16

LVDS_DDC_CLK

GND

13

14

GND

LVDS_CLKP

11

12

LVDS_CLKN

LVDS_TXD3P

9

10

LVDS_TXD3N

LVDS_TXD2P

7

8

LVDS_TXD2N

LVDS_TXD1P

5

6

LVDS_TXD1N

LVDS_TXD0P

3

4

LVDS_TXD0N

GND

1

2

GND
