ECM-DX2 Quick Installation Guide

ECM-DX2 Quick Installation Guide 15

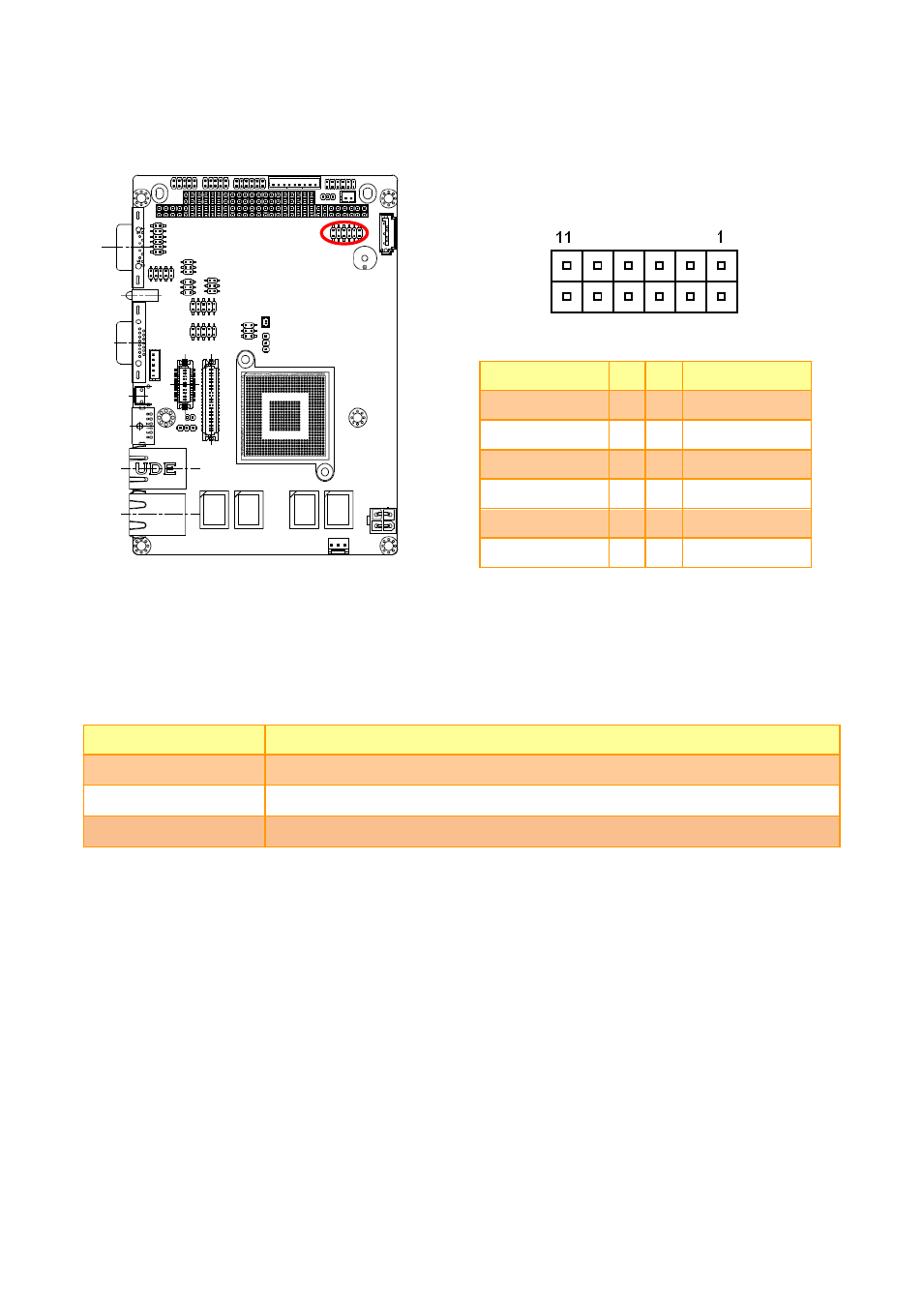

2.3.13 Audio connector (AUD1)

Signal

PIN PIN

Signal

LINEOUT_R

1

2

LINEOUT_L

GND

3

4

GND

LINE1-RIN

5

6

LINE1-LIN

MIC-RIN

7

8

MIC-LIN

FRONT-JD

9

10

LINE1_JD

MIC1_JD

11

12

GND

2.3.13.1 Signal Description

– Audio connector (AUD1)

Signal

Signal Description

LINE1_JD

AUDIO IN (LINE_RIN/LIN)sense pin

FRONT_JD

AUDIO Out(ROUT/LOUT) sense pin

MIC1_JD

MIC IN (MIC_RIN/LIN) sense pin
