ECM-QM87R/ ECM-QM87
52 ECM-QM87R/ ECM-QM87 User ’s Manual
Item Option Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=3F8h; IRQ=4,
IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12
Select an optimal setting for
Super IO device.
Device Mode
Normal[Default]
High Speed
Change the Serial Port mode.
Select or
mode.
UART 232 422 485
UART 232[Default],
UART 422,
UART 485
Change the Serial Port as
RS232/ 422/ 485

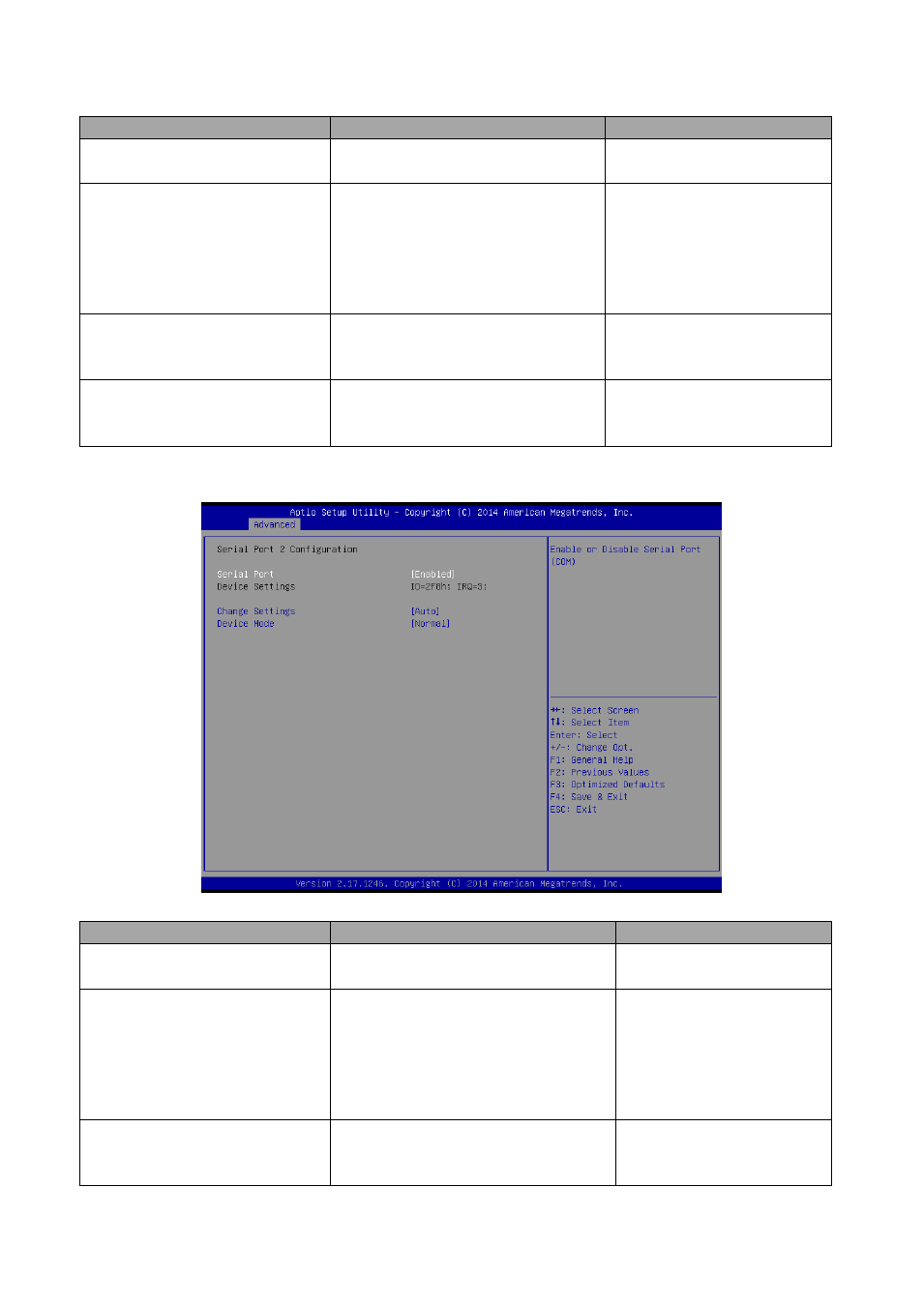

3.6.2.10.2 Serial Port 2 Configuration
Item Option Description
Serial Port
Enabled,
Disabled[Default]
Enable or Disable Serial Port
(COM).
Change Settings
Auto[Default]
IO=2F8h; IRQ=3
IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12
Select an optimal setting for
super IO device.
Device Mode
Normal[Default]
High Speed
Change the Serial Port
mode. Select
or mode.
