ECM-QM87R/ ECM-QM87
28 ECM-QM87R/ ECM-QM87 User ’s Manual

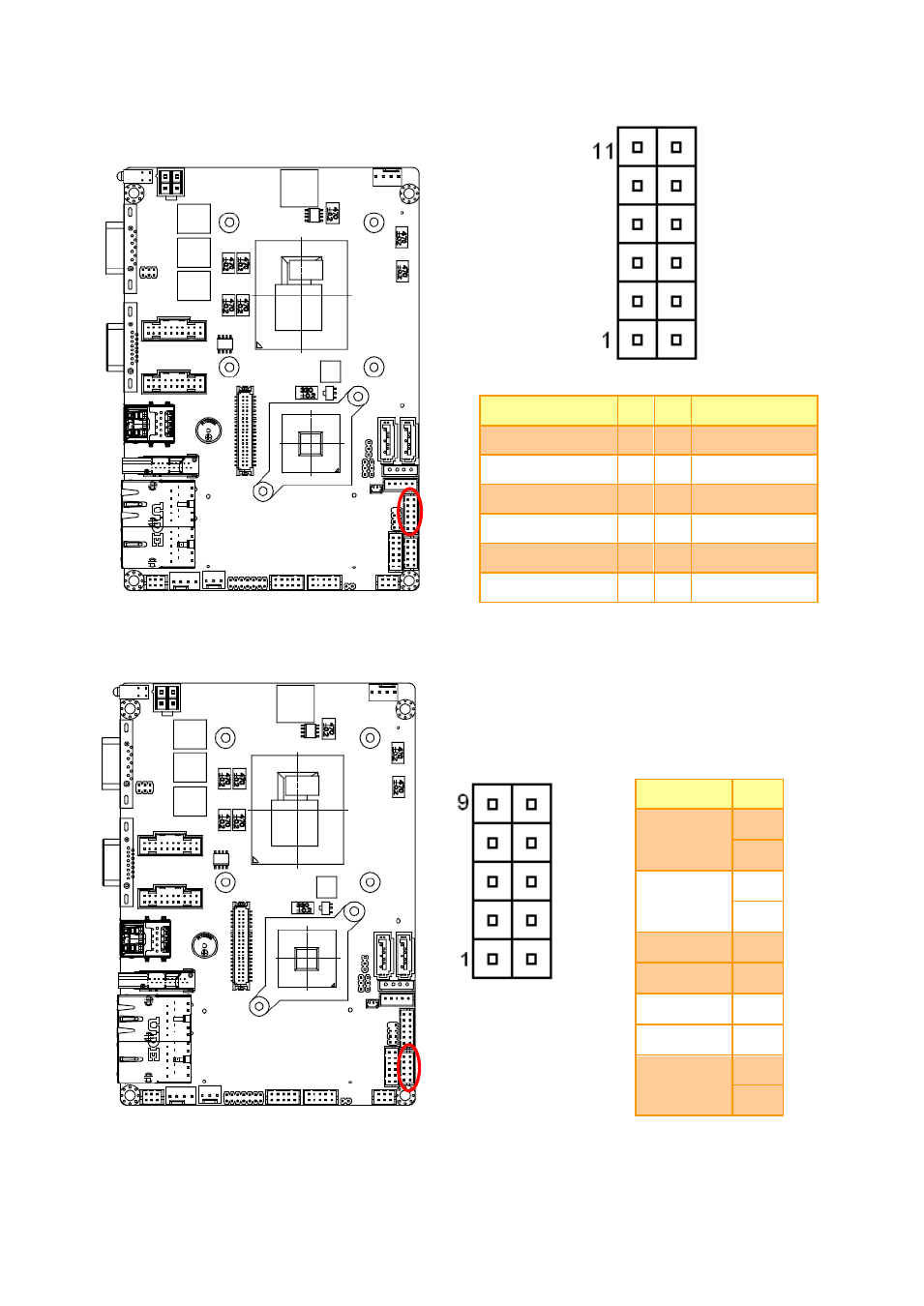

2.4.14 General purpose I/O connector (JDIO1)
Signal PIN PIN Signal
+5V 11 12 GND
SMB_DATA_9555 9 10 SMB_CLK_9555
DIO_GP13 7 8 DIO_GP23
DIO_GP12 5 6 DIO_GP22
DIO_GP11 3 4 DIO_GP21
DIO_GP10 1 2 DIO_GP20
2.4.15 Miscellaneous setting connector (JFP1)
Signal PIN
PWBT
1
2
RST#
3
4
PWR-LED- 5
PWR-LED+ 6
HDD-LED+ 7
HDD-LED- 8
COPEN#
9
10
