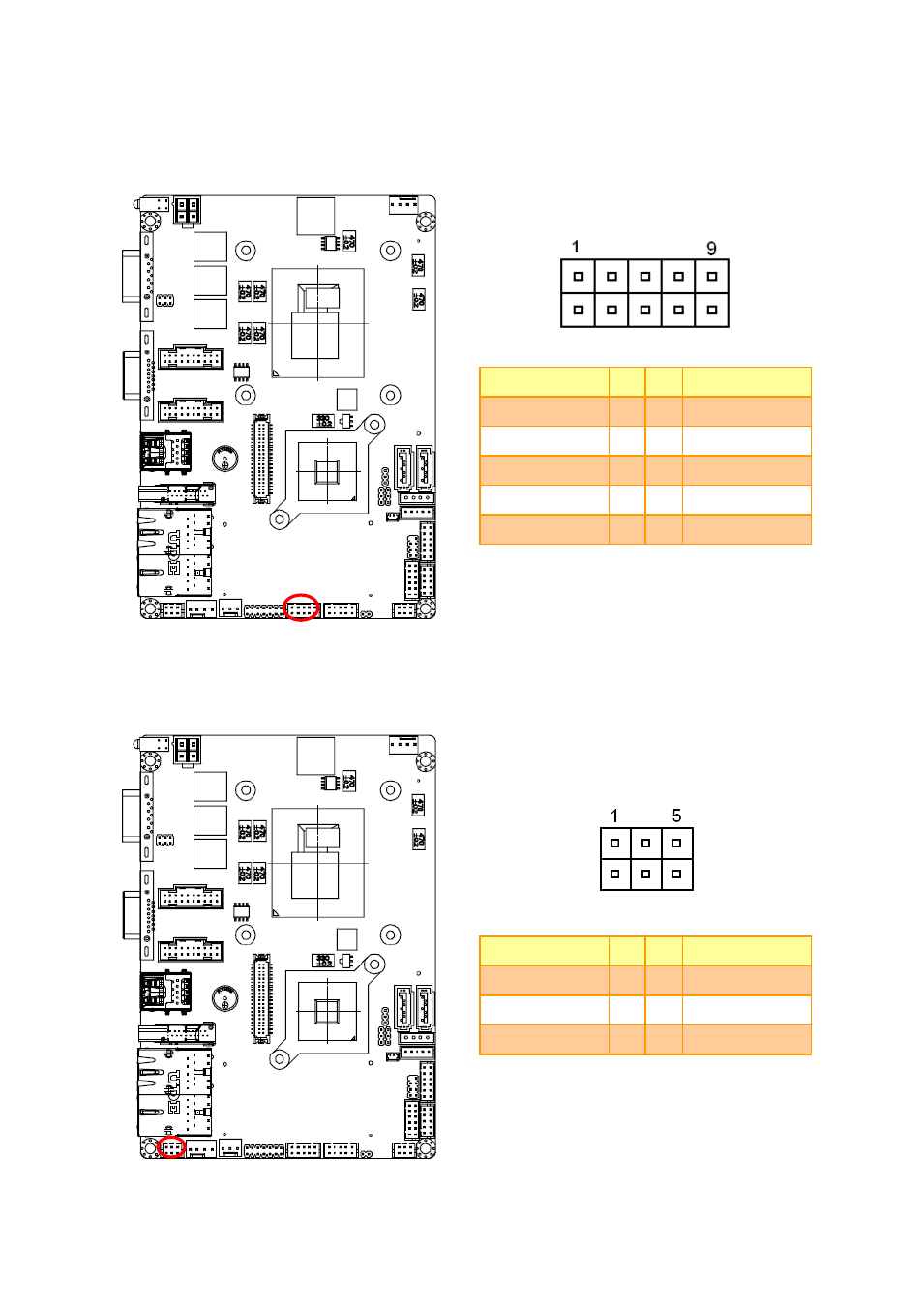

2.4.23 On-board box header for USB2.0 (JUSB7/8)

Signal

PIN PIN

Signal

USBVCC6

1

2

USBVCC6

USB_PN_Z_12

3

4

USB_PN_Z_13

USB_PP_Z_12

5

6

USB_PP_Z_13

GND

7

8

GND

GND

9

10

GND

2.4.24 PS/2 keyboard & mouse connector (JKB/ MS1)

Signal

PIN PIN

Signal

KBCK

1

2

KBDT

KBVCC

3

4

GND

MSCK

5

6

MSDT
