www.austin-hughes.com UM-PPS-02-S-Q214V1 P.13
< 1.9 > PPS-02-S IP dongle GUI software
Each IP dongle ( IPD-02-S ) provides a FREE built-in GUI software, PPS-02-S, which allows user, via an I.E. web
browser, to see PDU’s data and remotely manage the PDU over a TCP / IP Ethernet network.
Each I.E. supports only one IP dongle ( IPD-02-S ). If user installs more IP dongles,
multi windows will be required
PPS-02-S is a management software with very limited features. User can use more advanced software,
InfraPower Manager IPM-03

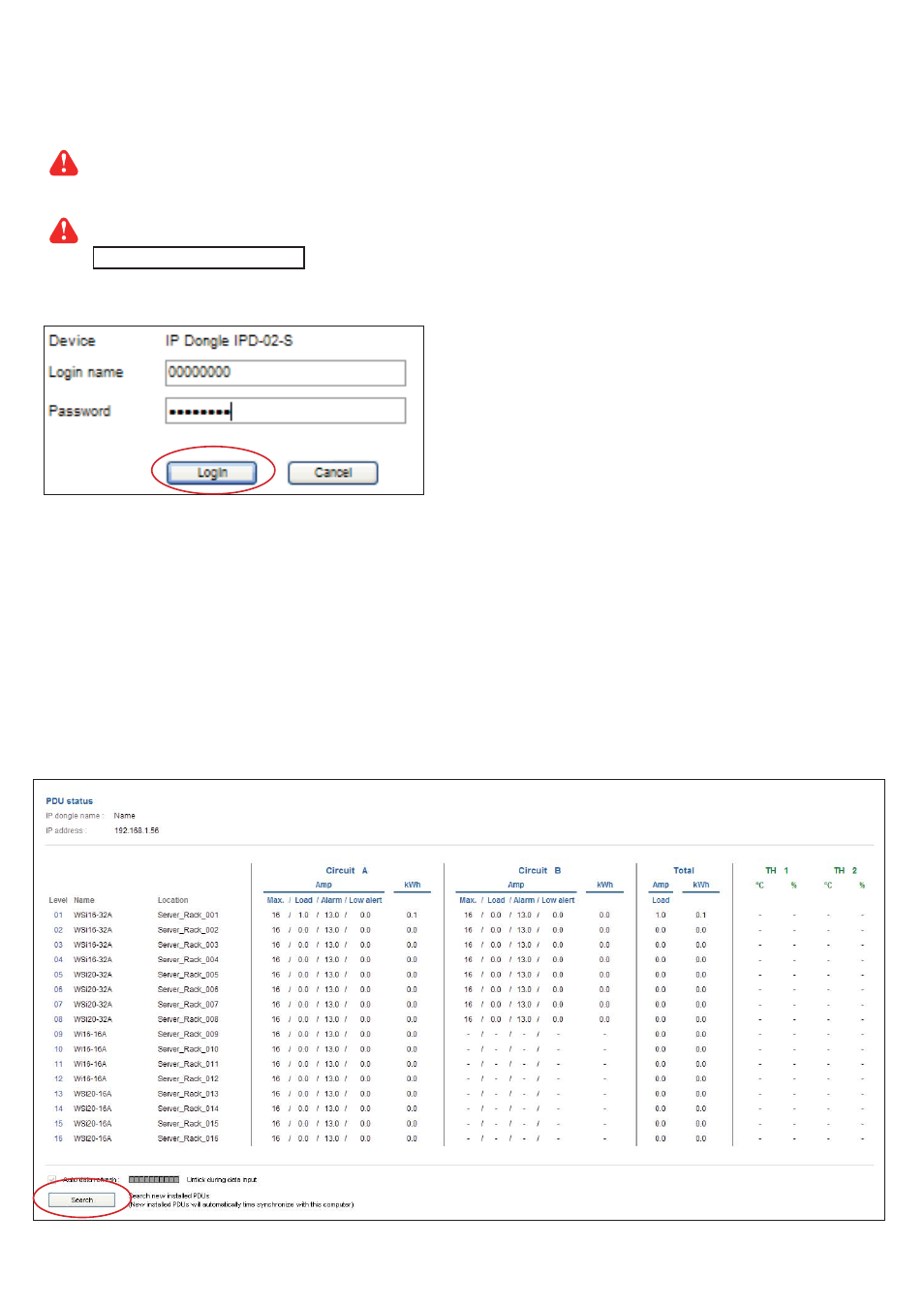

Step 1. Open Internet Explorer ( I.E. ), version 8.0 or above
Step 2. Enter the confi gured IP dongle address into the I.E. address bar ( Refer to P.11 )
Step 3. Enter “ Login name ” , “ Password ” & Click “ Login ” ( Refer to P.11 )
In < Status >,
- Click “ Search ” to search all new installed PDUs
( If search fails, please refer to P.17 for IP dongle fi rmware upgrade )
- View all installed PDUs’ status
- View latest loading on each PDU’s circuits
- View aggregate current & energy consumption on each PDU
- View status & lastest reading of Temp. & Humid sensors connected to each PDU
