www.austin-hughes.com UM-PPS-02-S-Q214V1 P.6
■
The PDU can be cascaded up to 16 levels
■
For IP PDU access simply connect 1 x IP dongle - IPD-02
■
1 x IP dongle allows access to 16 levels
< 1.4 > PDU cascade & connection

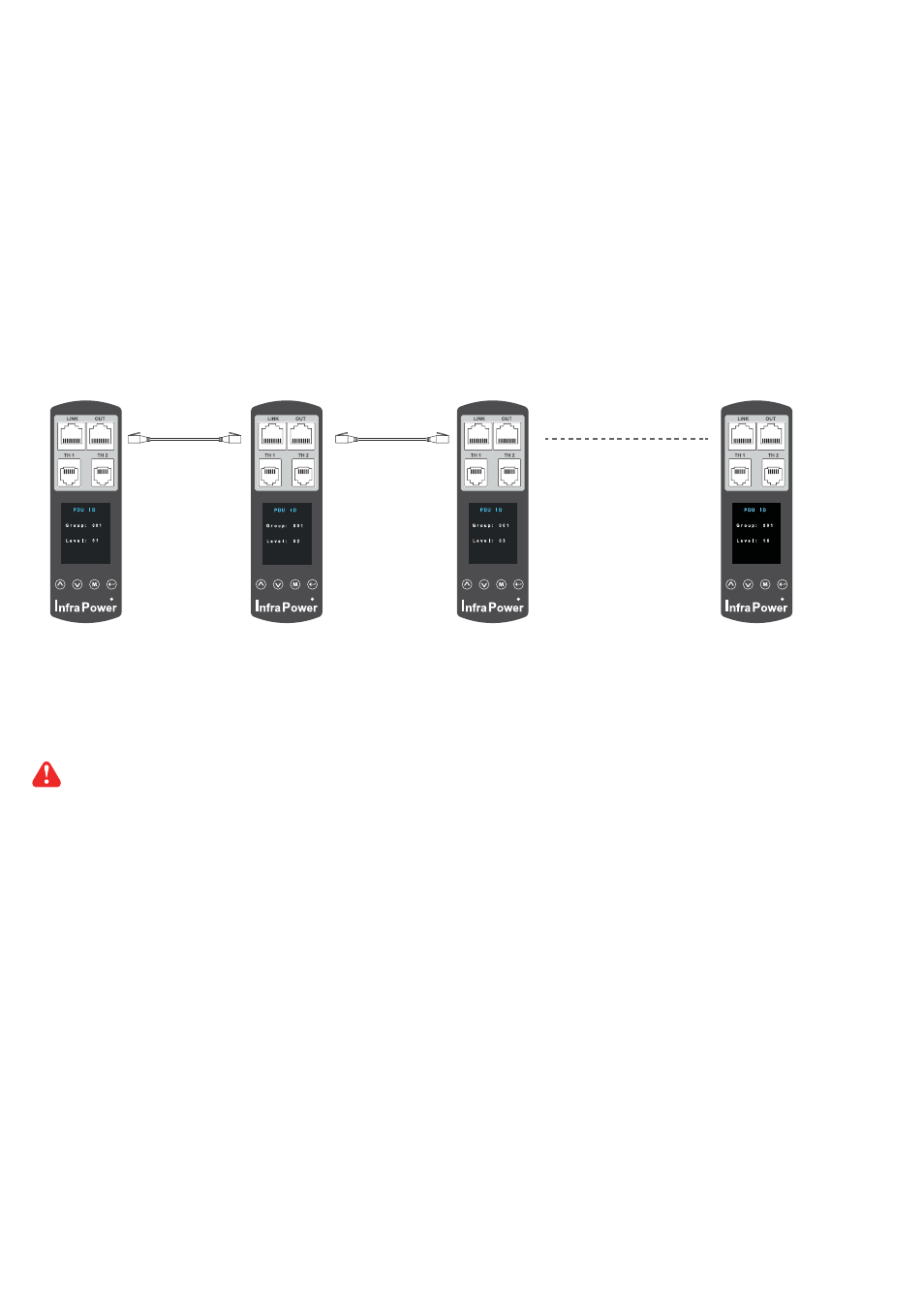

PDU Daisy Chain up to 16 Levels
The W meter built-in not only provides the local power monitoring, but also the connection ports for the PDU daisy chain.
For daisy chain connection, each PDU just simply to be connected in series to the next by Cat5/6 cables. Maximum 16
PDUs are supported in one daisy chain group.
1st level
PDU meter
Final level
PDU meter
3rd level
PDU meter
2nd level
PDU meter
Cat 5 / 6 cable
Up to 20M
Cat 5 / 6 cable
Up to 20M
For PDU level setting, please refer to the left side page.
