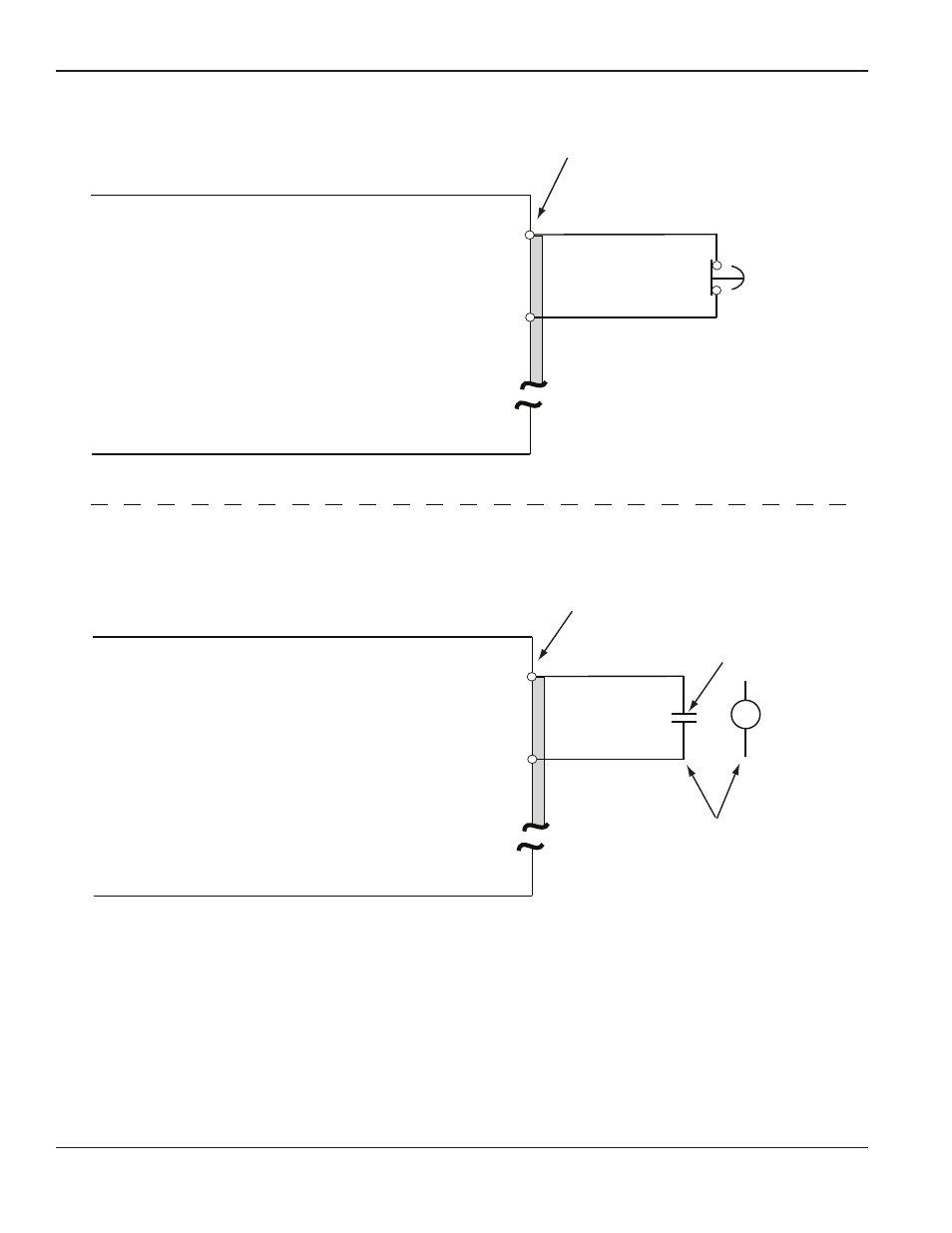

Figure 6-4 E-Stop Circuitry
iQ Auto
Enable Out
Enable In
Dedicated E-Stop Switch Wiring Diagram
System I/O Connector
(Pin 1)
(Pin 2)
User supplied
E-stop switch
iQ Auto
Enable Out
Enable In
Automation System Safety Circuit Wiring Diagram
System I/O Connector
(Pin 1)
(Pin 2)
User automation
control hardware
Master
control
relay
Relay contact block
