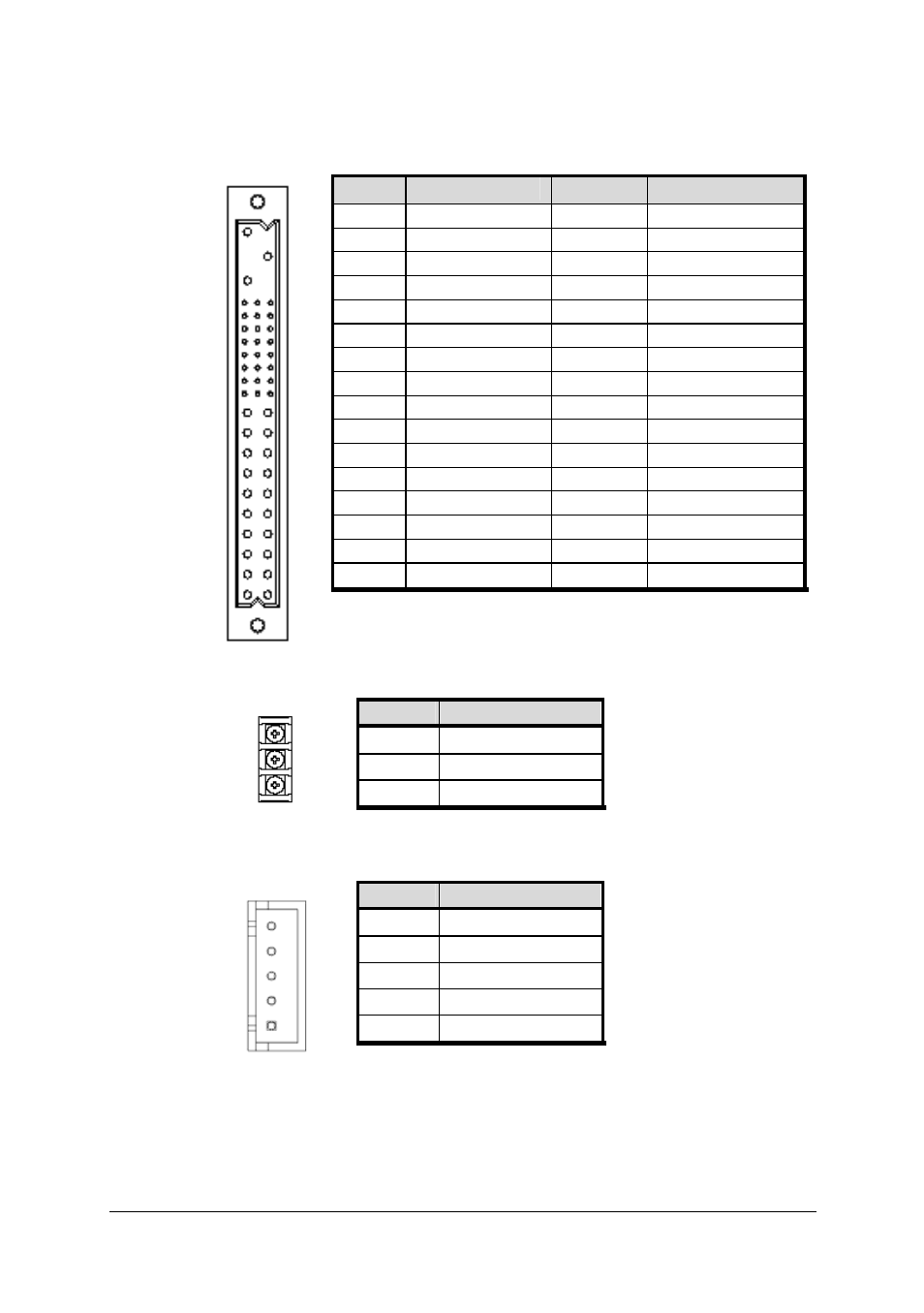

Pin Assignment
¾ CN1 / CN2 – Modular Power 47P Connector
Pin Signal Pin Signal
47 ACL/-DC IN 31 GA2
46 ACN/+DC IN 30 V1 SENSE
45 CGND 29 V1ADJ
44 V3
SHARE 28 GA1
43 IPMB_PWR 27 EN#
42 +FAL# 26 RESERVED
41 V2
SHARE 25 GA0
40 IPMB_SDA 24 RTN
39 INH# 23 RESERVED
38 DEG# 22 RTN
37 IPMB_SCL 21 V4
36 V3 SENSE 20 V3
35 V1 SHARE 19 RTN
34 S RTN 13-18 V2
33 V2 SENSE 5-12 RTN
32 V2ADJ 1-4 V1
¾ CN3 –AC/DC in Let Connector
Pin # Signal Name
1 ACN/DC+
2 ACL/DC-
3 CGND
¾ CN4 – Power Sense Connector
Pin # Signal Name
1 V1_Sense
2 GND_S
3 V2_Sense
4 V3_Sense
5 NC
2 1
20 19
44 4
2
47
