28 • Backplane
3.3 cBP-3062A Power Backplane
The cBP-3062A is a PICMG 2.11 CompactPCI 3U 47-pin power backplane
for two power modules. It is used by the cPCIS-1102[R]/cPCIS-ET1102.
Specifications
CompactPCI Compliancy: PICMG 2.11 CompactPCI Power Interface
Dimensions: 80.28 x 128.7 mm
Power Module Sockets: two
AC/DC input screw terminal: yes
DC output (ATX connector): two
Cascading Current Sharing: yes
Cascading Voltage Sense: Built-in ATX connector
INH#/FAL#/DEG# Distribution: Selectable common INH#/FAL#/DEG# or
separated INH# for each power module, dedicated connector
PICMG 2.0 IPMB Socket: yes

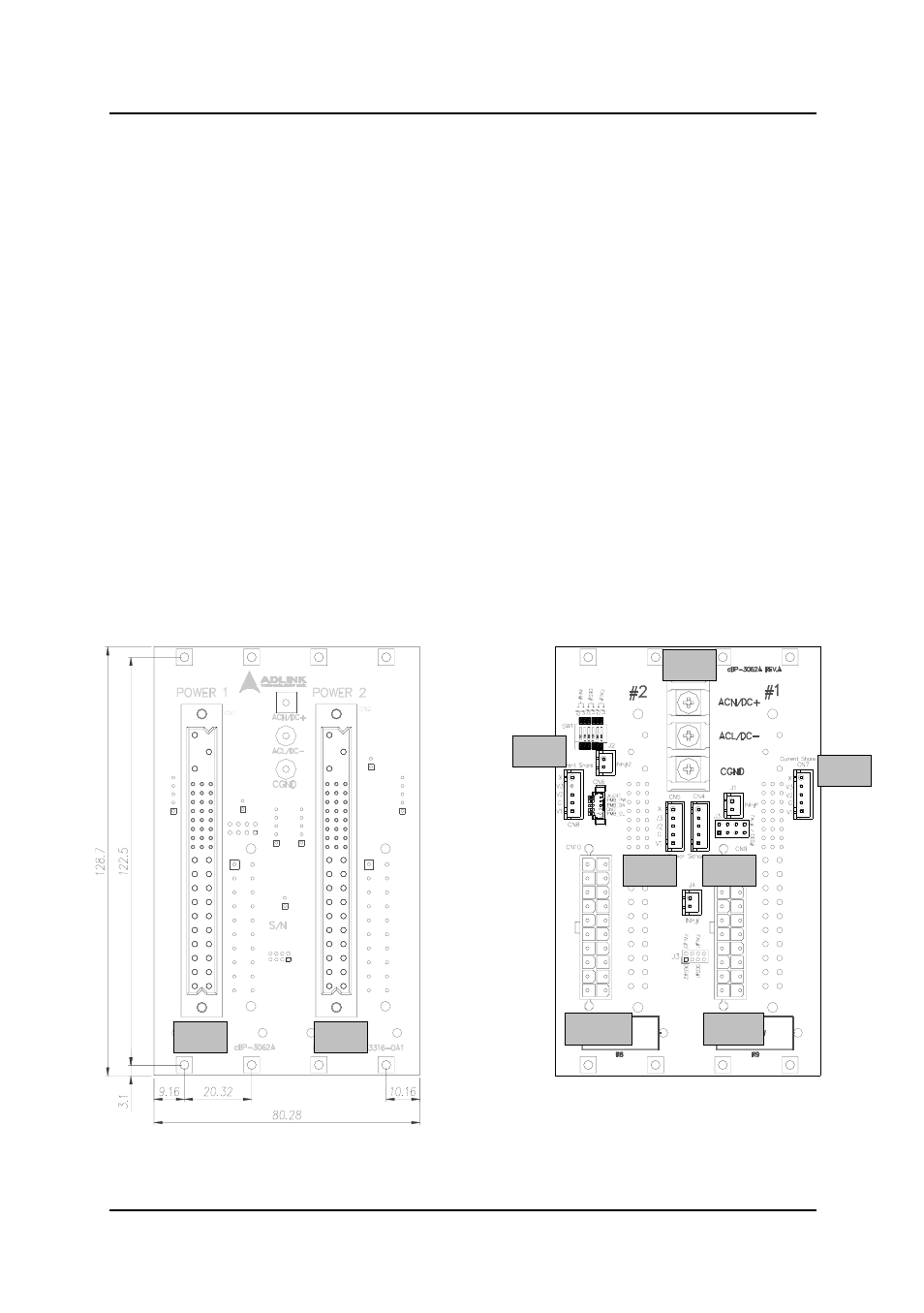

Mechanical Drawing
cBP-3062[R] Rear View cBP-3062[R] Front View
CN7
CN10 CN9
CN5 CN4
CN8
CN1 CN2
CN3
