Getting Started 27
cPCI-6625
5 Getting Started
This chapter describes the installation of the following components
to the cPCI-6625 and rear transition modules:
X Memory modules
X 2.5" SATA storage drive
5.1 Heatsink
The cPCI-6625 Series comes with heatsink pre-installed. Removal
of the heatsink by users is not recommended. Please contact your
ADLINK service representative for assistance.
5.2 Memory Module Installation
The cPCI-6625 provides two SODIMM sockets for DDR3-1333
memory modules. Memory modules should be pre-installed on
cPCI-6625 Series blades. Follow the steps below if it is necessary
to change the memory modules
Installing a memory module

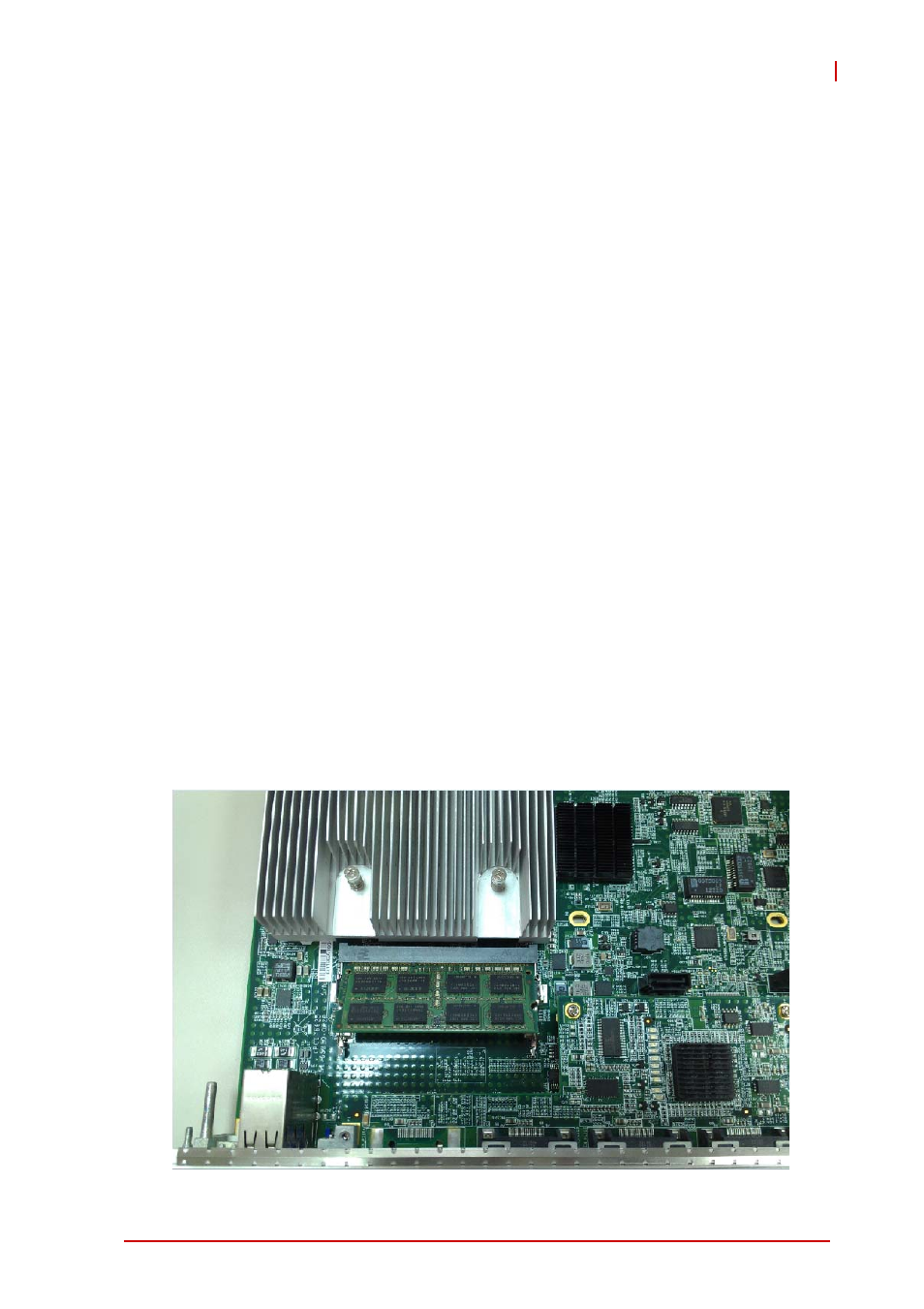

1. Insert the memory module until it properly seated shown
as below.
