Board Interfaces

cPCI-6625

Board Interfaces

This chapter describes the board layout, connector pin assign-
ments, and jumper settings of the cPCI-6625 Series.

4.1

cPCI-6625 Series Board Layout

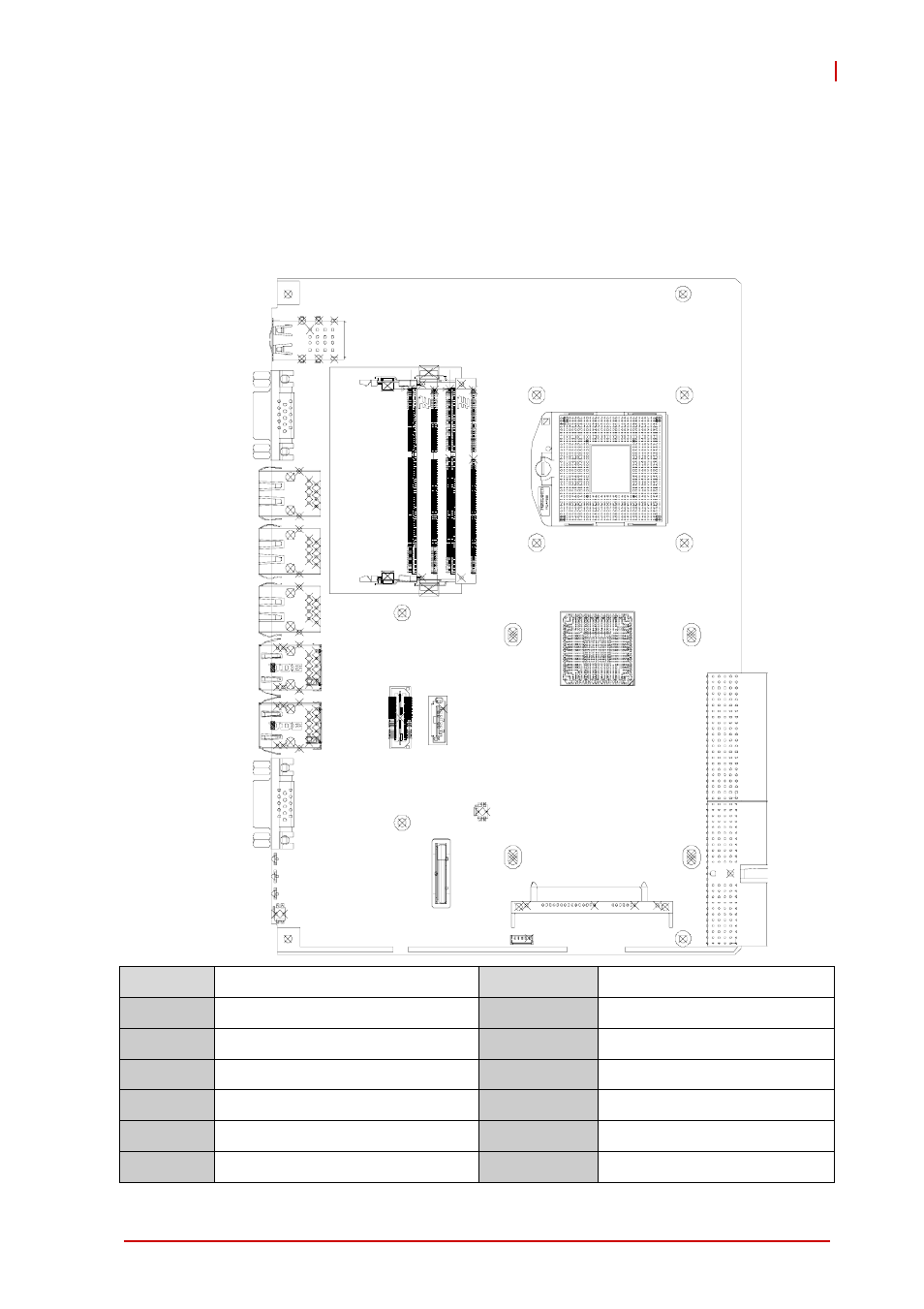

Figure 4-1: cPCI-6625 Series Board Layout

U1/U5

CPU/PCH

CN1/2

SODIMM sockets

J1/J2

CompactPCI connectors

CN3/4

RJ-45 LAN ports

SW1

Clear CMOS button

CN6

USB 2.0 ports

SW2

Reset button

CN7

SATA direct connector

LEDs

HDD/Power Status

CN8

SATA 7-pin connector

BT1

Battery socket

CN9

Board to board connector

VGA1/2

VGA ports

CN10/11/13 RJ-45 serial ports

CN1

LEDs

BT1

VGA1

CN7

CN6

CN13

CN11

CN10

CN3

CN2

SW2

CN9 CN8

CN4

VGA2

SW1
