BIOS Setup

cPCI-3965

8.7

Chipset Setup

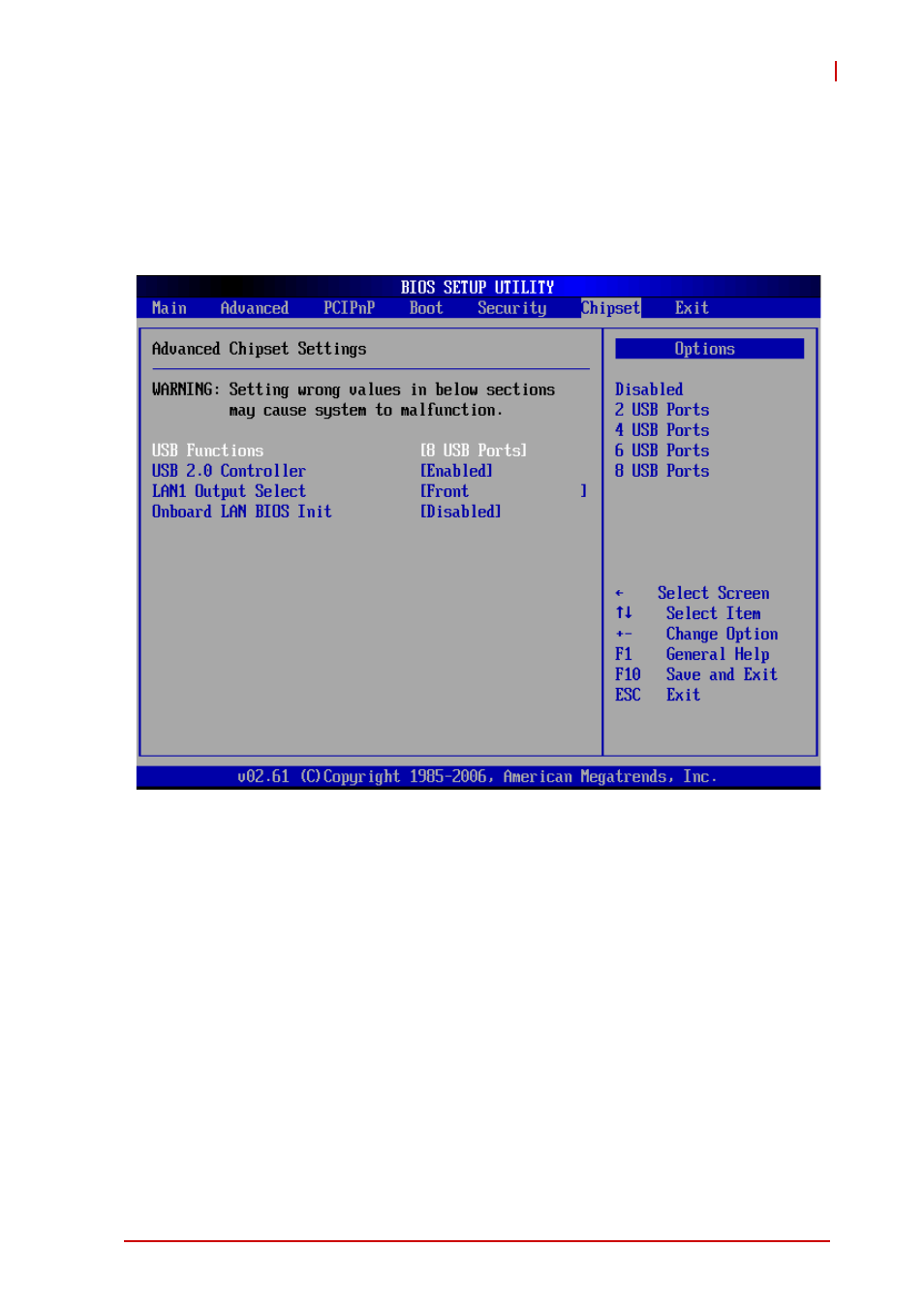

Select the Chipset tab from the setup screen to enter the Chipset

BIOS Setup screen. You can select any of the items in the left

frame of the screen to go to the sub menu for that item. The

Chipset BIOS Setup screen is shown below.

USB Functions

Set this value to allow the system to disable, enable, and select a

set number of onboard USB ports.

USB 2.0 Controller

This option takes effect only when USB Functions are enabled.

Enabling will allow USB 2.0 functionality to all USB ports.

LAN1 Output Select

Set the LAN1 output to Front or Rear.

Onboard LAN BIOS Init

Set this value to enable/disable the invoking of onboard LAN’s

PXE ROM. Disabling can shorten the POST time by not initializing

LAN PXE ROM. Enable it if boot from LAN is needed.
