BIOS Setup 57
cPCI-3965
8.3.2 IDE Configuration
You can use this screen to select options for the IDE Configuration
Settings. Use the up and down < Arrow > keys to select an item.
Use the < + > and < - > keys to change the value of the selected
option. A description of the selected item appears on the right side
of the screen. The settings are described on the following pages.

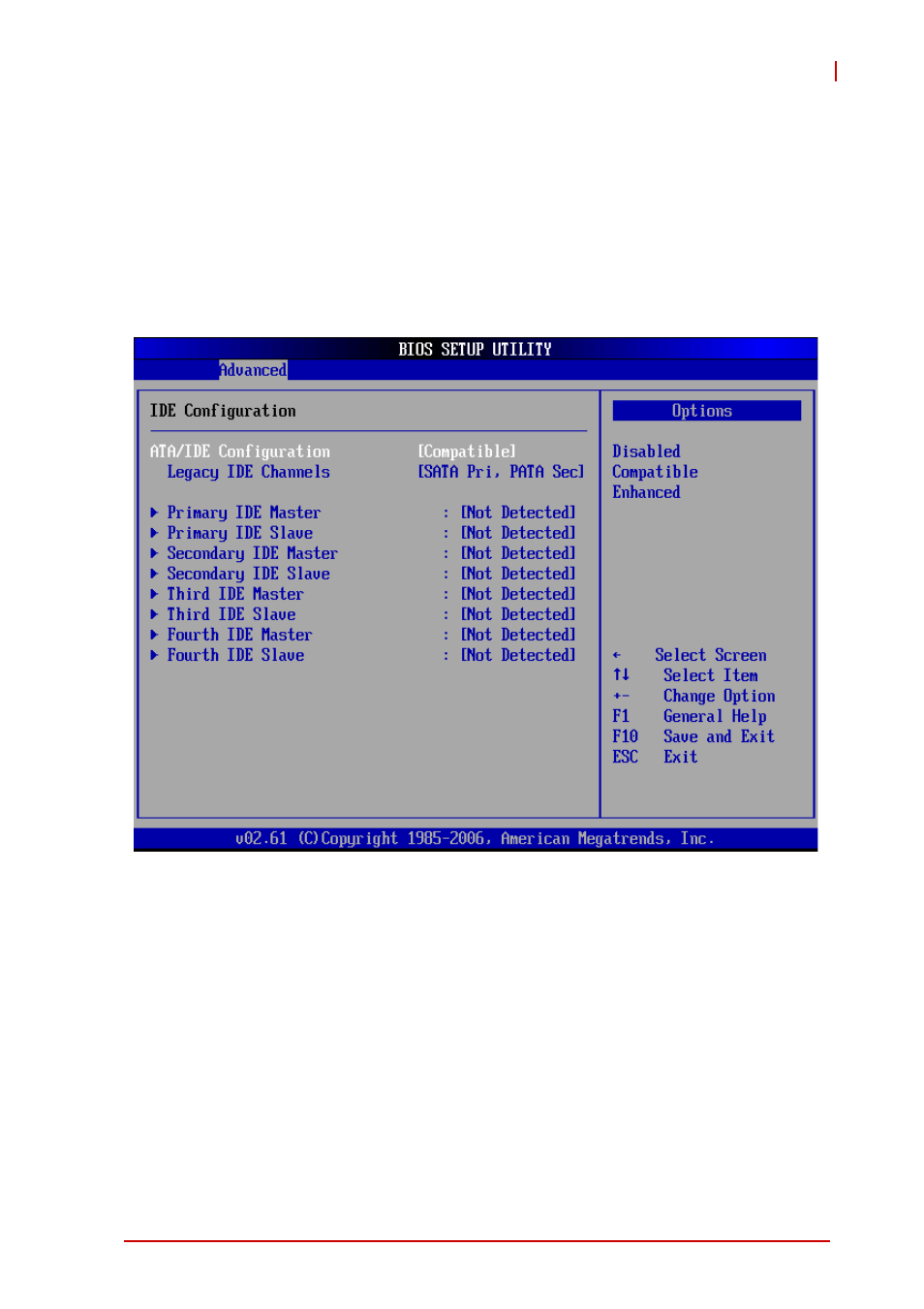

An example of the IDE Configuration screen is shown below.
ATA/IDE Configuration
This item specifies which mode the IDE channels should be ini-
tialized in. The settings are Disabled, Compatible and
Enhanced
. When running in Compatible mode, SATA channel
can be configured as a legacy IDE channel.
IDE Master/Slave
Select one of the hard disk drives to configure it. Press
< Enter > to access its sub menu.
