Functional Description

3.4

Switches

Switch SW1 is for Blade Operation Mode Control (Pins 1 & 2) and
PICMG 3.1 Option Control (Pins 3 & 4). Switch SW2 is for debug-
ging purposes. Switches SWX1 and SWX2 are used to set the
COM port function to RS-232 mode or IPMC debug mode. SW7 is
provided to clear CMOS.

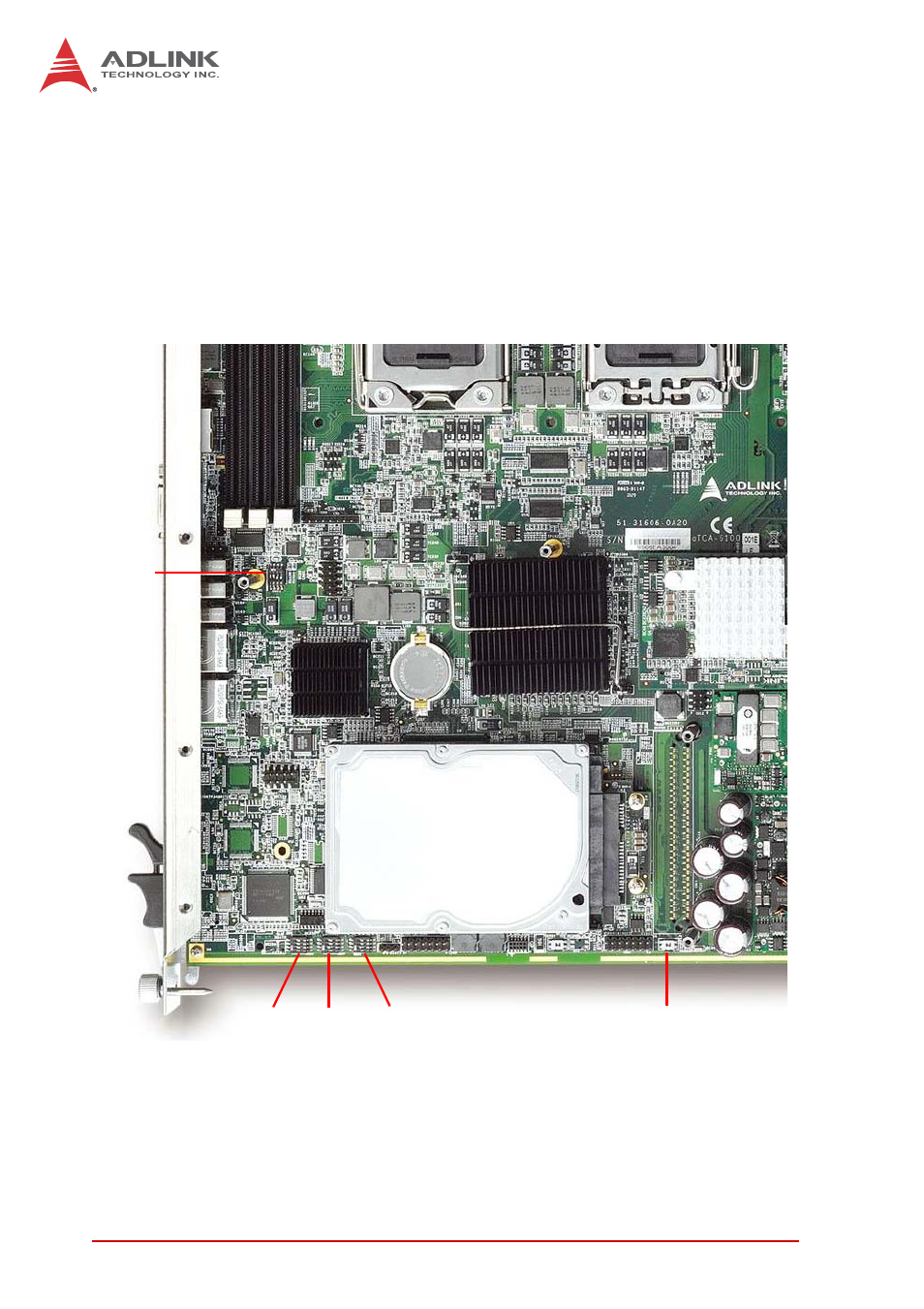

Figure 3-1: aTCA-6155 Switch Locations

SW2

SW1

SWX2

SW7

SWX1
