Introduction

19

EOS-4000

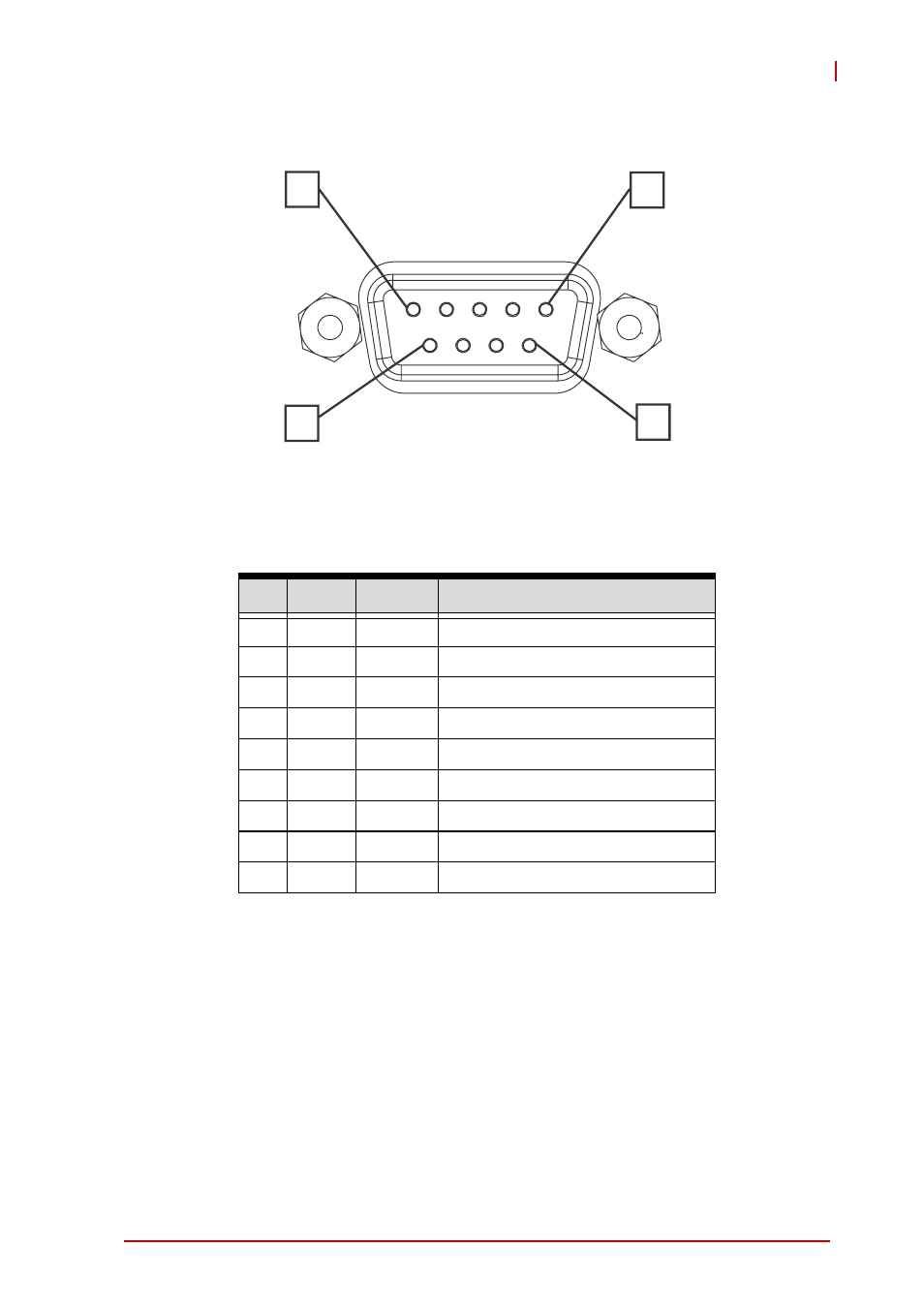

Figure 1-14: Encoder Input Port

Table 1-14: Encoder Input Port Pin Assignment

Pin Name In/Out

Description

1

EA+

IN

Encoder trigger A+ (EIA-422)

2

EB+

IN

Encoder trigger B+ (EIA-422)

3

EZ+

IN

Encoder trigger Z+ (EIA-422)

4

GND

N/A

System digital ground

5

GND

N/A

System digital ground

6

EA-

IN

Encoder trigger A- (EIA-422)

7

EB-

IN

Encoder trigger B- (EIA-422)

8

EZ-

IN

Encoder trigger Z- (EIA-422)

9

GND

--

System digital ground

1

5

9

6
