Installation • 11
2.4 Jumper Setting
The PCI-7256 is a ‘plug and play’ add-on card for PCI bus. It is not necessary
for user to setup its base address and IRQ level to fit the hardware of your
computer system. However, to fit user’s versatile operation, there are still a
few jumpers to set for the digital input.
The jumpers on PCI-7256 card are used to configure the digital input
channels as AC-Filtered or Non-AC-Filtered inputs. Each digital input channel
and their corresponding jumpers are shown in the following Table2.1.
JUMPER INPUT SIGNAL
JP1 DI0 ~ DI7
JP2 DI8 ~ DI15
Table 2.1 The jumpers and DI channels
The default setting of the input signal selection is Non-AC-Filtered ( DC
signal input), which is shown as below :

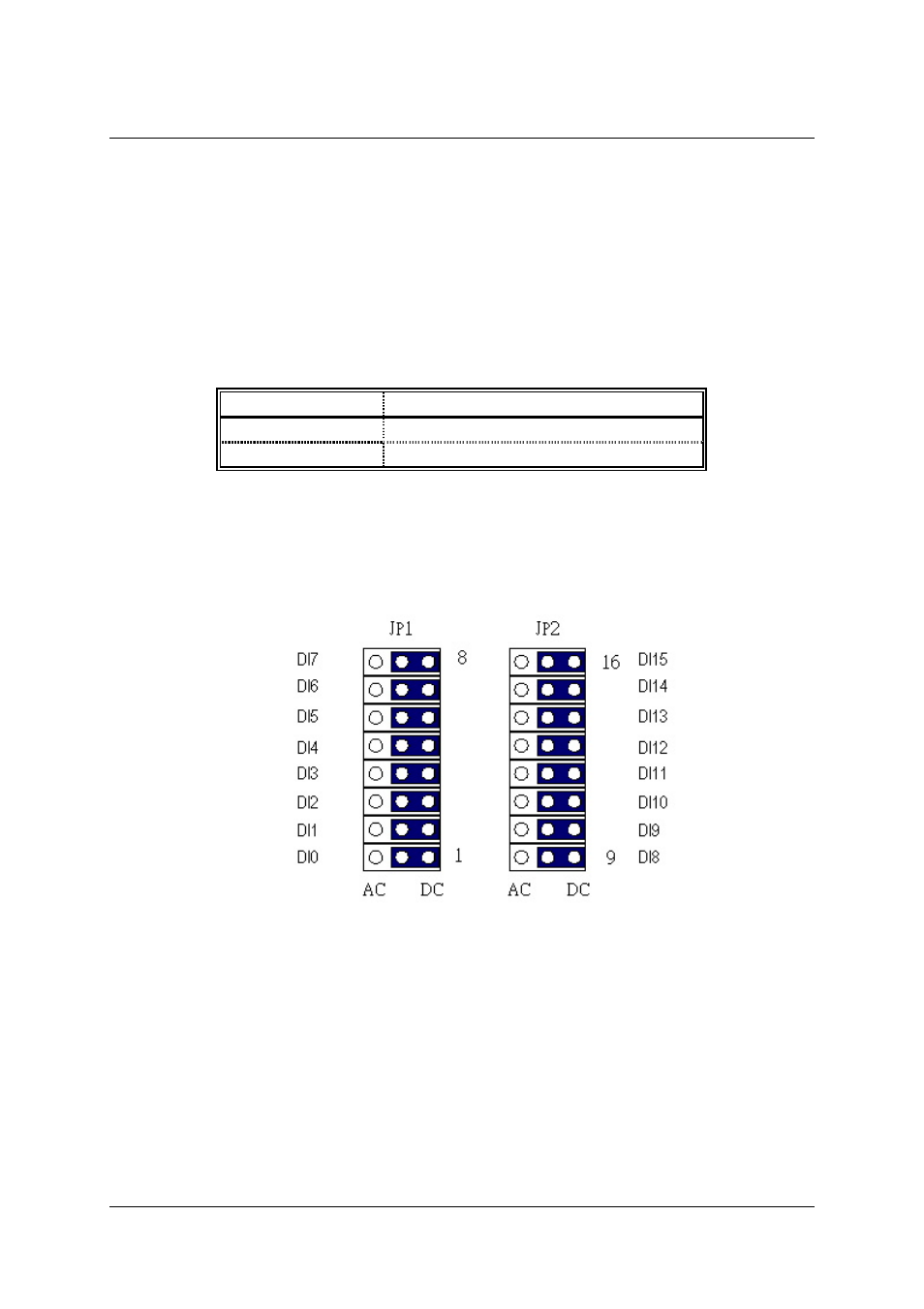

Figure 2.2 Default Input Signal Jumper Setting
