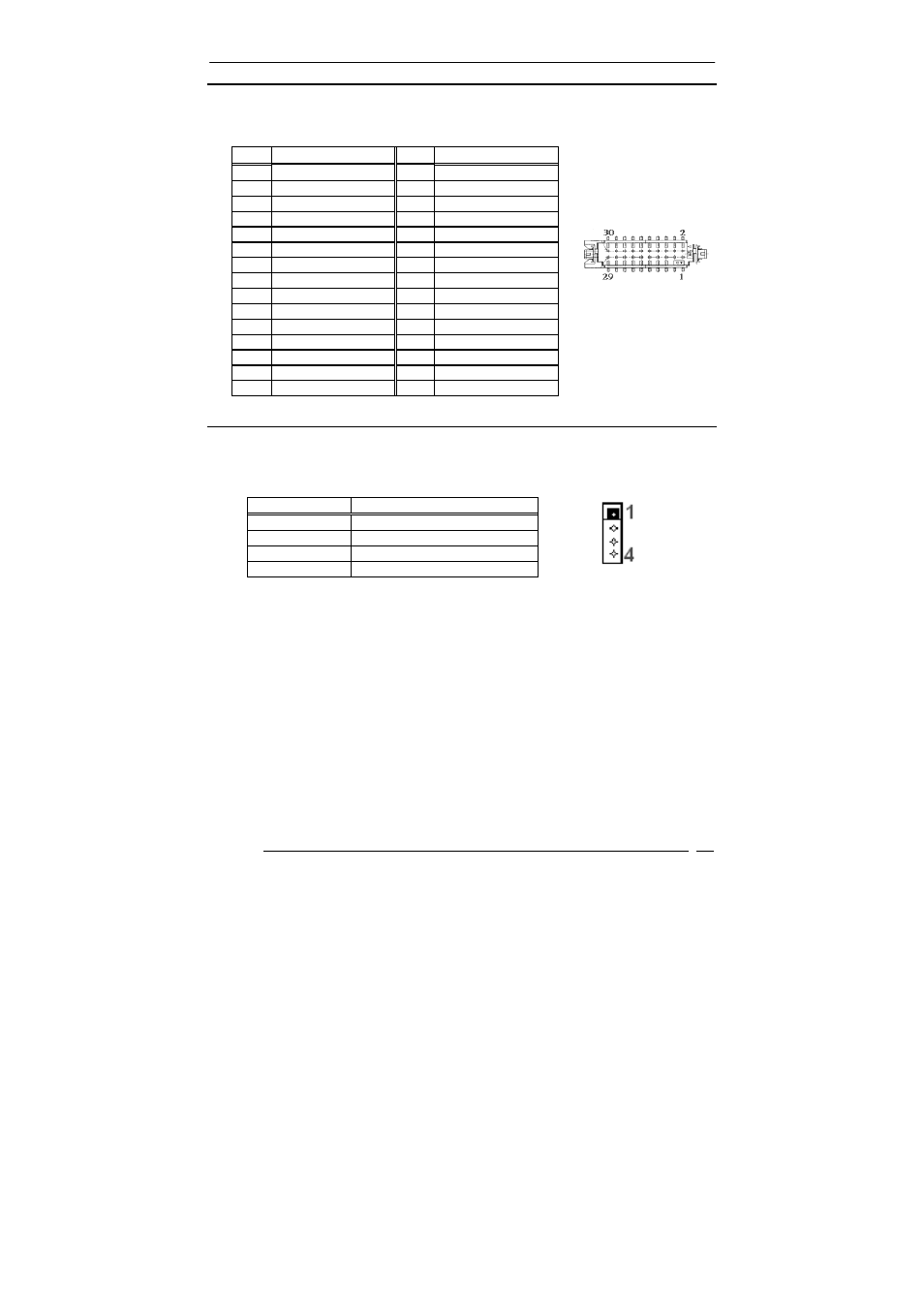

3.13 LVDS Connector(LVDS1)
• LVDS1 : LVDS Interface Connector
3.14 Speak Connector(SPK1)
• SPK1 : Speak out Connector(through Amplifier)
PIN DESCRIPTION PIN DESCRIPTION
2 GND 1 LVDS_PWR
4 LVDS_CLKBP 3 LVDS_CLKBM
6
LVDS_YBM2 5 GND
8 GND 7 LVDS_YBP2
10 LVDS_YBP1 9 LVDS_YBM1
12 LVDS_YBM3 11
LVDS_YBP3
14 LVDS_YBM0 13 LVDS_YBP0
16 LVDS_CLKAP 15 GND
18 GND 17 LVDS_CLKAM
20 LVDS_YAM2 19 LVDS_YAP2
22 LVDS_YAP1 21 DDCPCLK_X
24 DDCPDATA_X 23 LVDS_YAM1
26 LVDS_YAM0 25 LVDS_YAP0
28 LVDS_YAM3 27 LVDS_YAP3
30 LVDS_PWR 29 LVDS_PWR
PIN NO. DESCRIPTION
1 SPKR
2 GND
3 SPKL
4 GND
