AR-B1851 User’s Guide
AR-B1851 10

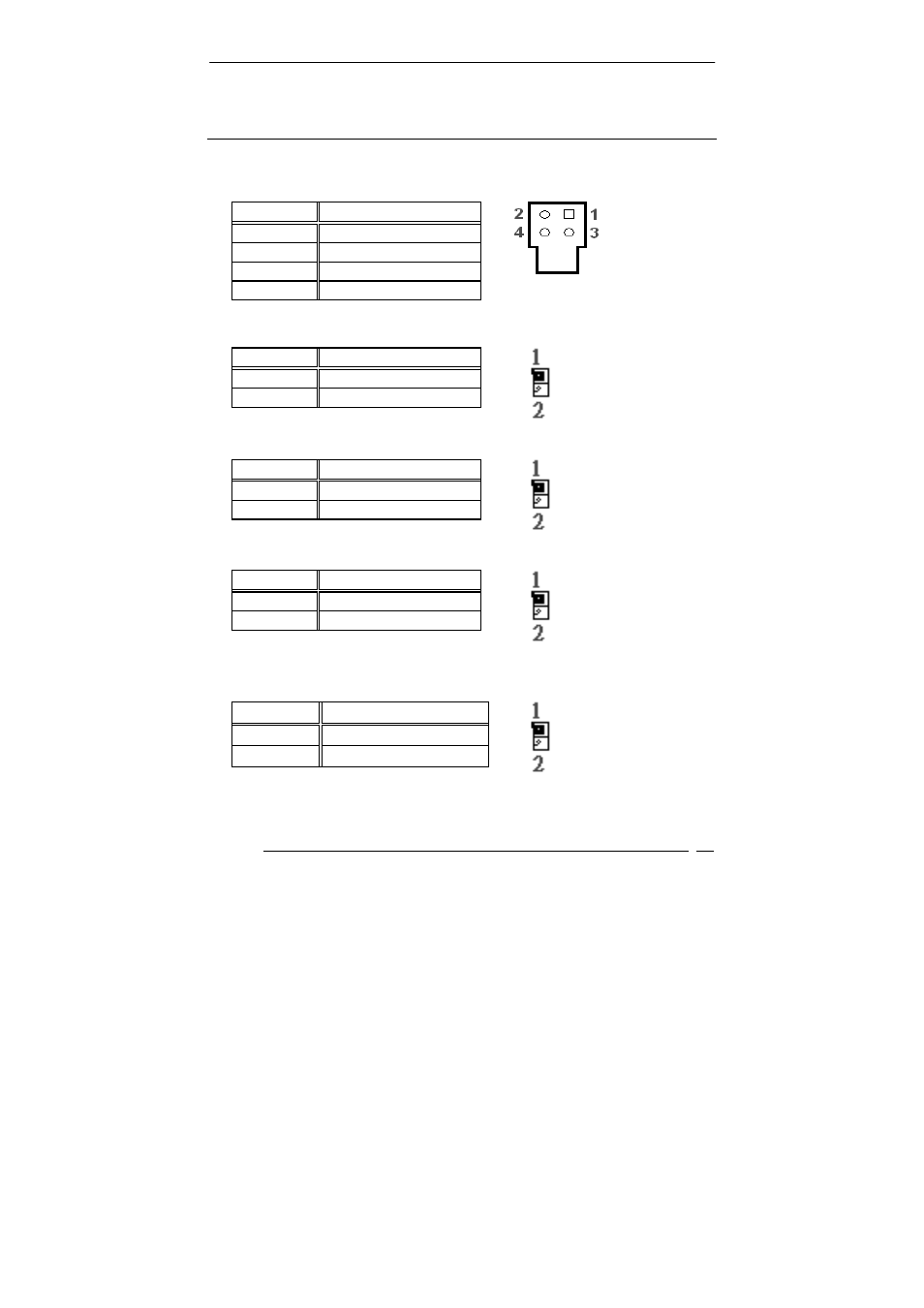

2.2 Power Button Setting
• ATX1 : Power Connector
• CN5 : Power Button
Connector
• JP7 : Power LED
• JP8 : HDD LED
• CN6 : Reset Button Connector
Pin DESCRIPTION
1 +12V
2 GND
3 +5V
4 GND
Pin DESCRIPTION
1 +5VSB
2 Power
ON
Pin DESCRIPTION
1 +5V
2 GND
Pin DESCRIPTION
1 +5V
2 GND
Pin DESCRIPTION
Open Normal
Short Reset System
