AR-B1565/1565A User’s Guide
20

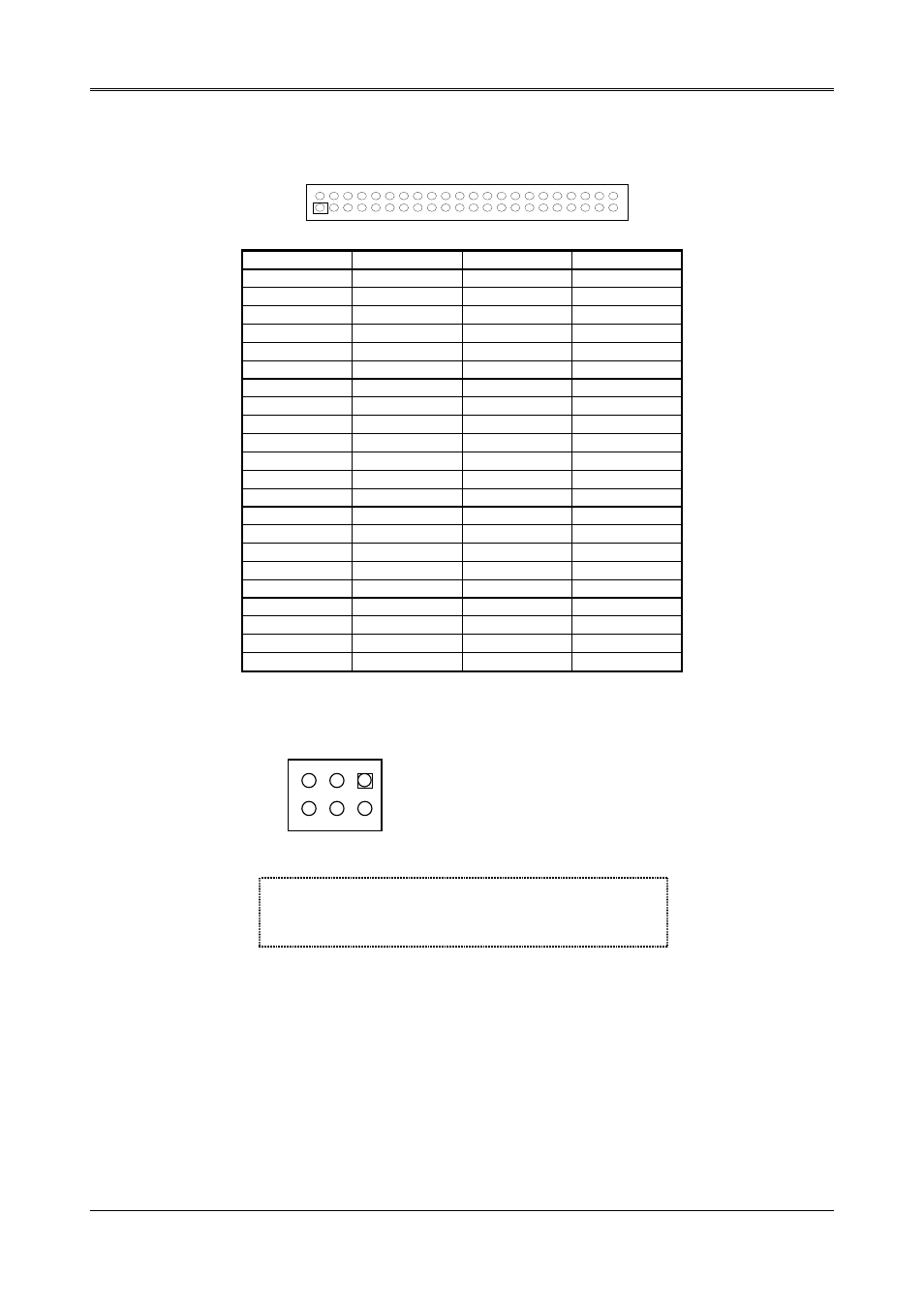

3.2.10 LCD Connector (LCD1) (Only For AR-B1565)
Attach a display panel connector to this 44-pin connector with pin assignments as shown below:
1
2
Figure 0-4 LCD1: LCD Display Connector
Pin Signal Pin Signal
1 GND 2 SHFCLK
3 GND 4 LP
5 FLM 6 GND
7 NC 8 NC
9
P0 (B0) 10 P1 (B1)
11 P2 (B2) 12 P3 (B3)
13 GND 14 DB2 (B4)
15 P5 (B5) 16 NC
17 NC 18 P6 (G0)
19 P7 (G1) 20 GND
21 P8 (G2) 22 P9 (G3)
23 P10 (G4) 24 P11 (G5)
25 NC 26 NC
27 GND 28
P12 (R0)
29 P13 (R1) 30 P14 (R2)
31 P15 (R3) 32 P16 (R4)
33 P17 (R5) 34 GND
35 VCC 36 VCC
37 +12V 38 +12V
39 GND 40 GND
41 DE 42
ENABLK
43 GND 44 VEE
Table 0-2 LCD Display Pin Assignment
3.2.11 LED Header (J12)
1 3 5
2 4 6
1.HLEDP+
2.HLEDP-
3.HLEDS+
4.HLEDS-
5.P/WLED+
6.P/WLED-
HLEDP: External LED connector for primary IDE channel.
HLEDS: External LED connector for secondary IDE channel.
P/WLED: External LED connector for power status indication.
