Acrosser AMB-D255T3?(Mini-ITX) - Manual (Page 10)

10

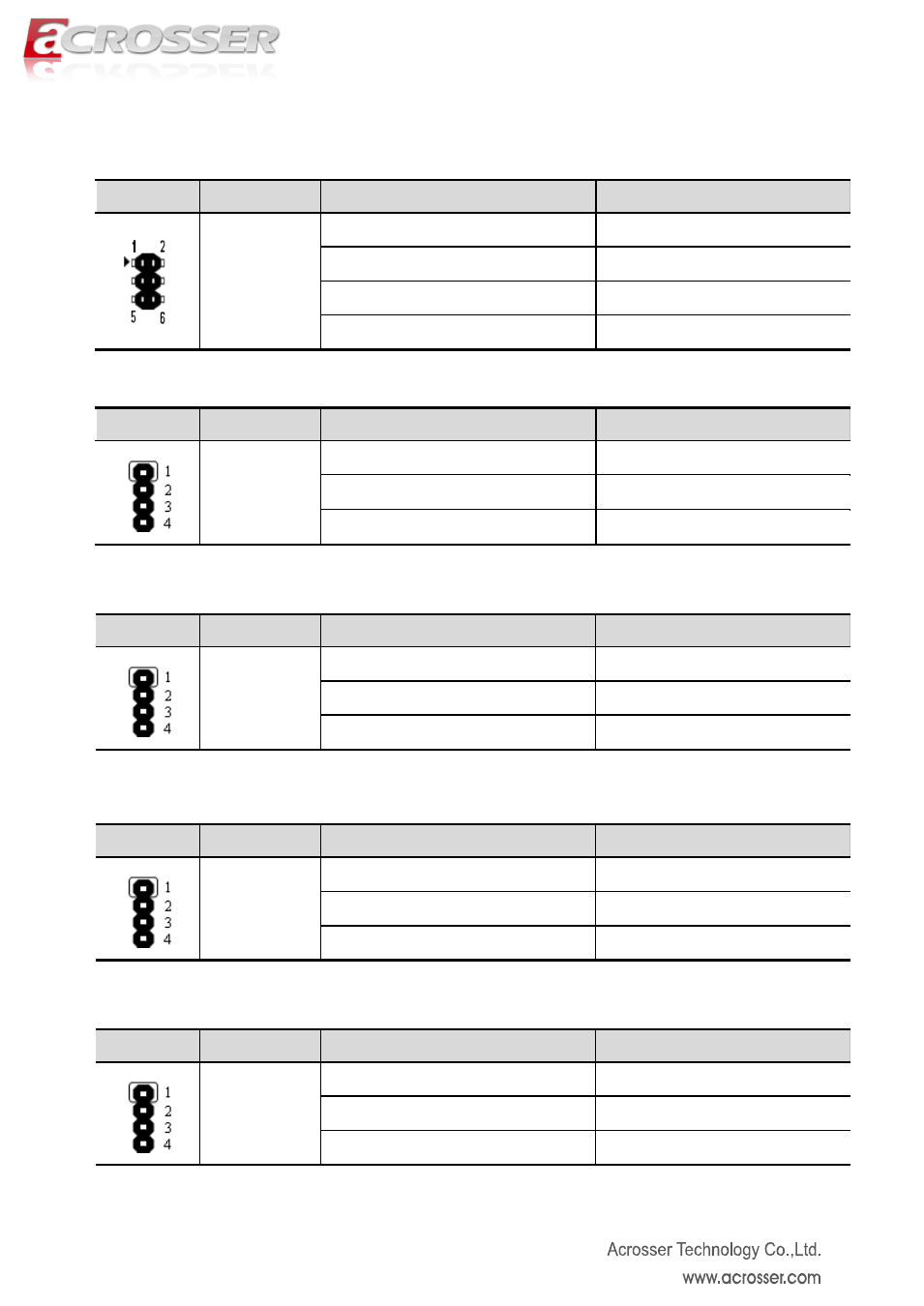

9. COM2 Control Jumper（3*2 Pin 2.00mm）
Location Jumper Setting Function
J7
1-3(Default) Pin1: DCD
3-5 Pin1: + 5V
2-4 Pin9: + 12V
4-6(Default) Pin9: RI
10. COM3 Control Jumpers（4*1 Pin 2.00mm）
Location Jumper Setting Function
J10
1-2(Default) Pin1: N/C
2-3 Pin1: + 5V
3-4 Pin1: + 12V
11. COM4 Control Jumper（4*1 Pin 2.00mm）
Location Jumper Setting Function
J13
1-2(Default) Pin 1: N/C
2-3 Pin 1: + 5V
3-4 Pin 1: + 12V
12. COM5 Control Jumper（4*1 Pin 2.00mm）
Location Jumper Setting Function
J14
1-2(Default) Pin 1: N/C
2-3 Pin 1: + 5V
3-4 Pin 1: + 12V
13. COM6 Control Jumper（4*1 Pin 2.00mm）
Location Jumper Setting Function
J15
1-2(Default) Pin 1: N/C
2-3 Pin 1: + 5V
3-4 Pin 1: + 12V
