2.2. Memory Module Installation

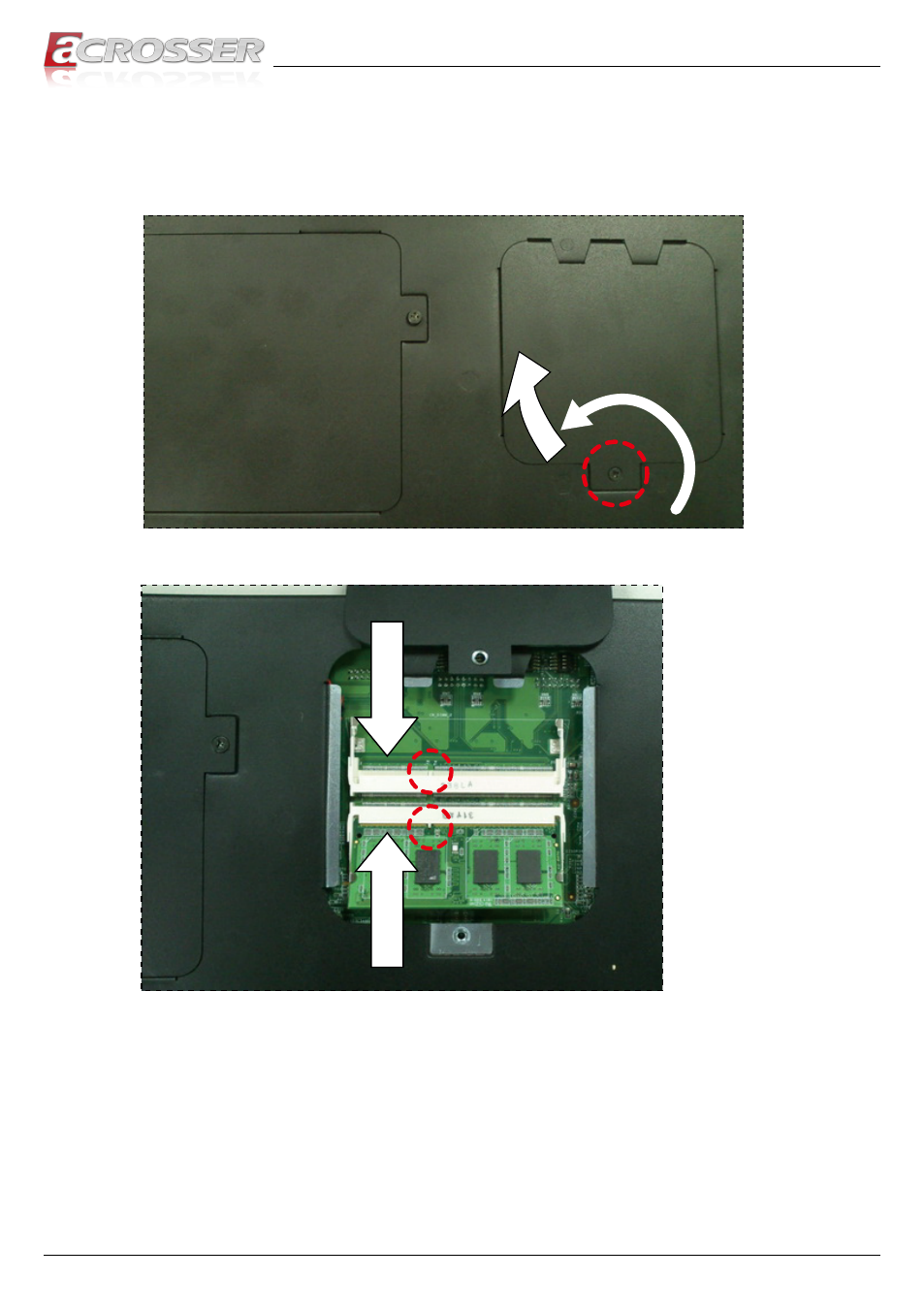

Step 1: Loosen the screw located at the chassis bottom, and lift the memory compartment
cover.
Step 2: Install the DDR3 memory into the socket.
Align the notch key on the module with the one on the socket when
installing the memory module.
