AES-HM76Z1FL User Manual
15
www.acrosser.com

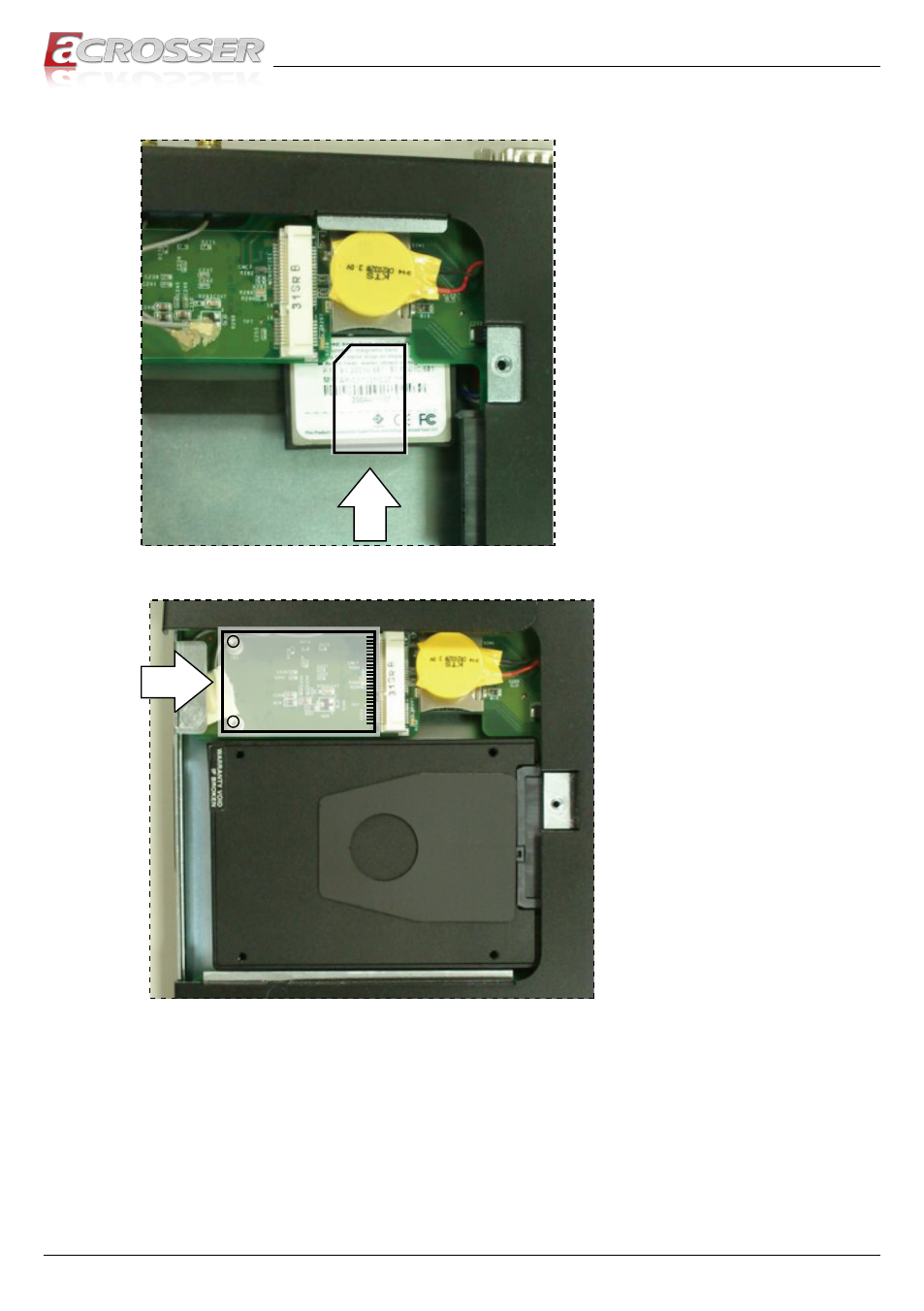

Step 5: Insert your SIM card according to your application.
SIM
Card
Step 6: Install your Mini PCIe card according to your application.
Mini PCIe
Card
For 3.5G or WiFi installation, you will have to connect both ends of the
antenna cables to the feed point on the Mini PCIe card first, and then
connect the two antennas found in the package to the ANT1 & ANT2
port at the rear I/O panel.
