3DLABS Wildcat 4210 User Manual
Page 16
9
3. Remove the existing card. Keep the screws; you will use them to secure the Intense3D
Wildcat 4210 card to the chassis.
4. Align the Wildcat 4210 card with the AGP Pro 110 expansion slot and one of the
adjacent PCI slots. Make sure the gold-fingered connections on the card’s edges are
aligned properly with the slot connectors (see Figure 2; these connections are labeled on
the right side of the image).

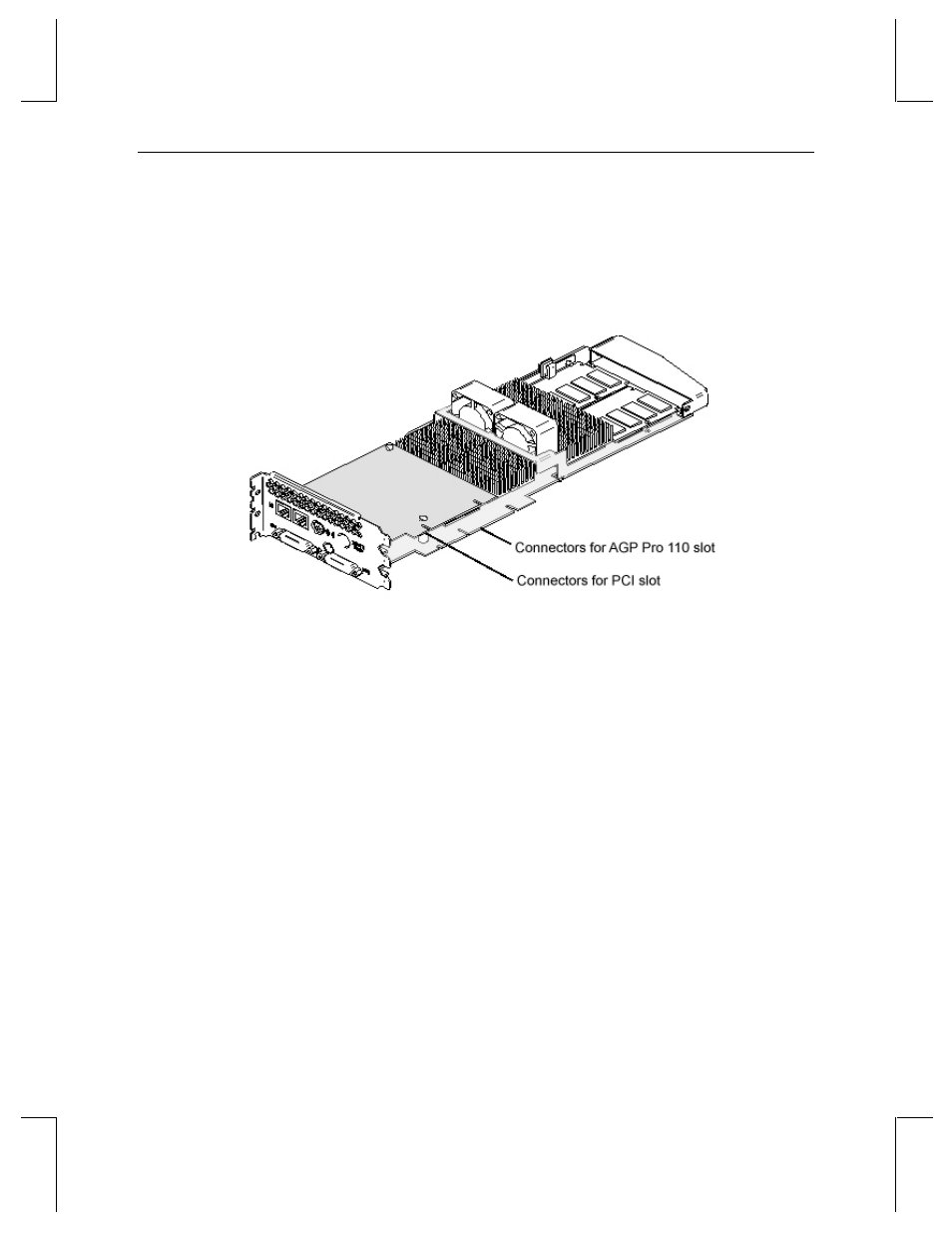

Figure 2. Wildcat 4210 Video Card
5. Push the connections into the expansion slots firmly and evenly until they are fully seated
in the slot connectors.
6. Visually inspect the connections. If they do not appear to be correct, remove and reinstall
the card.
7. Use the screws you removed previously to secure the card to the computer’s chassis.
8. Close the workstation and reconnect the power cord. See “Connecting the Monitor” in
this chapter for instructions on connecting a display device to the Wildcat 4210 video
card.
