Technical Parameter:
Model PDS-320FZA
Image Sensor 1/3"SONY CCD
Digital Singnal Processor SONY DSP
Signal System PAL / NTSC
Scanning System 2:1 Interlace
Scanning Frequency(H) NTSC:15.734KHZ , PAL:15.625KHZ
Sync. System Internal
Horizontal System540TVL
Effective Pixels
(HxV)
PAL:795×596
NTSC:811×508
Shuttle Speed
PAL=1/50 ~1/100,000 sec ；NTSC=1/60 ~1/100,000
sec
Mini Illumination 0.01 Lux
S/N Ratio > 48dB （Auto Gain Off）
Gamma 0.45
Lens 5-15mm F2.2 2.0MP auto focus lens
White Balance Auto
BLC Open
Video Output 1.0V P-P,75Ω
AGC Auto
Power Voltage Super Wide Voltage (8V~18V)
Current 800mA
Operating Temperature
14°F to 122°F (-10 ~ 50 ℃) （
humidity: up to 95% ）
Color White
SPECIFICATIONS

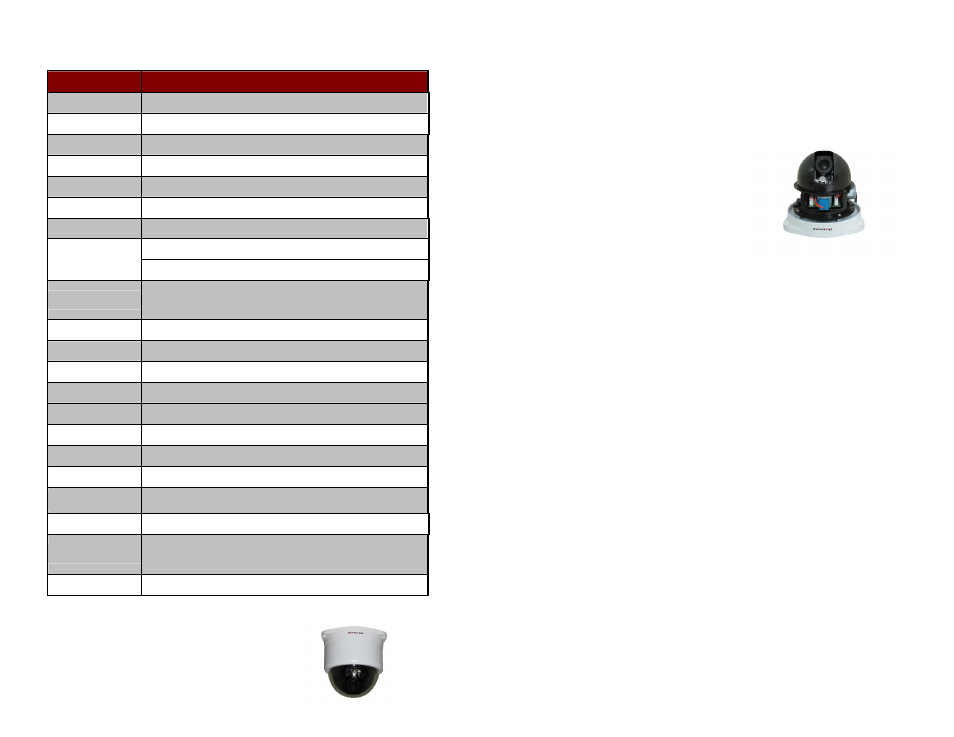

NAME ：4.2” Medium Speed Dome Intelligent
Camera
Model ：QSZ515D
Product features
1. Mini exquisite design with stable
performance
4.2” DOME cover
1.3 mega pixel lens
5-15mm F2.2 2.0MP auto focus lens
Auto Focus; with the function of preset posit
ions in lens
Compatible with PelcoD & PelcoP Protocols
6. 128 preset positions, 2 auto
cruise routes
7. The lowest speed at 0.5°/s, no vibrating images
8. Built-in protective circuit for forced electricity and lightning
9. Easy installation
Module Index of Variable Speed Pan/Tilt/Zoom:
1. Horizontal scanning: 360°rotation
2. Horizontal speed: 0.5°—50°/s
3. Vertical scanning: >90°
4. Vertical speed: 0.5°—30°/s
5. 128 preset positions (PTZ and vari-focal lens included)
6. Speed of preset positions: 50°/s
7. PTZ scanning precision: ±0.5°
8. 3X zoom
Electric Index:
1. Input Voltage: DC12V+/_20% 50/60Hz
2. Input power ：1.2A above
Environment Index:
1. Operational Temperature: -10 ～45℃
2. Preserve Temperature: -30 ～70℃
3. Humidity: Relative humidity 0% ～90%, no congealing
Control Protocol (standard solution):
