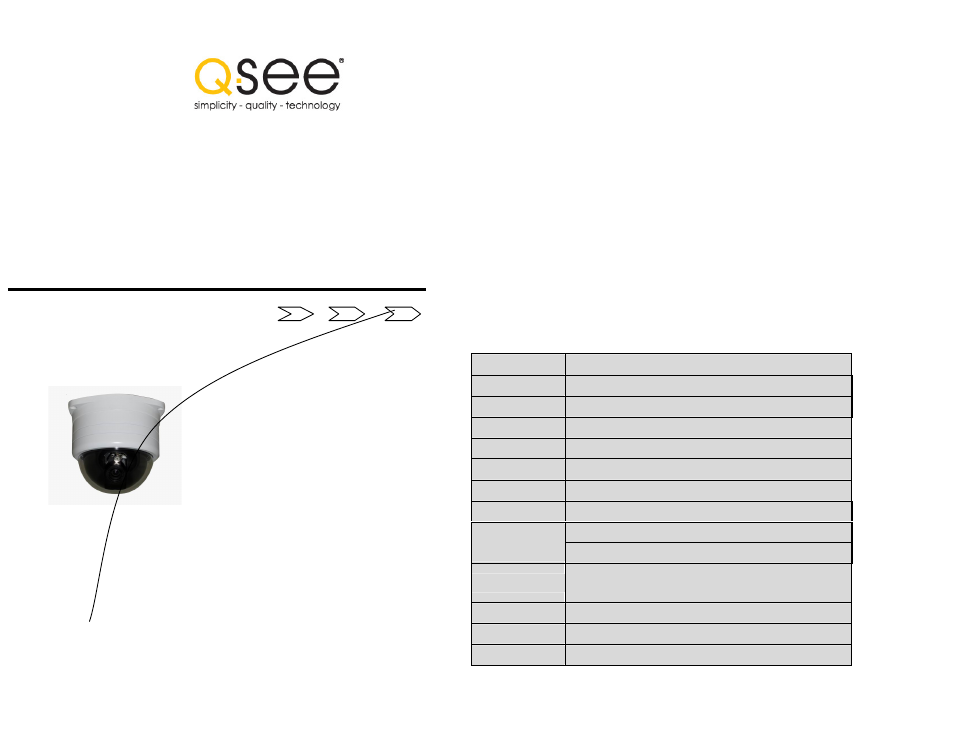

Medium Speed Intelligent Dome PTZ
User’s Manual
Rev 120110
Part 1 Performance Features
◇4.2”Vandalproof Pan/Tilt Dome Camera
◇1/3” SONY CCD + SONY DSP
◇540TVL
◇Super wide voltage board: 8-18V
◇High transparent vandal-proof dome cover
◇5-15mm F2.2 2.0MP auto focus lens
◇With RS485 remote control, With 128 preset points
◇360° Horizontal endless rotation, 90° vertical movement
◇A panoramic view
◇body rotates flexibly with less noise and
wider view shooting
◇Memory function at accidental power-off (Settings saved)
Technical Specifications:
Model
PDS-320FZA
Image Sensor
1/3"SONY CCD
Digital Signal Processor
SONY DSP
Signal System
PAL / NTSC
Scanning System
2:1 Interlace
Scanning Frequency(H)
NTSC:15.734KHZ , PAL:15.625KHZ
Sync. System
Internal
Horizontal System540TVL
Effective Pixels
(HxV)
PAL:795×596
NTSC:811×508
Shuttle Speed
PAL=1/50 ~1/100,000 sec
;NTSC=1/60 ~1/100,000
sec
Mini Illumination
0.01 Lux
S/N Ratio
> 48dB
(Auto Gain Off)
Gamma
0.45
