23
23
www.desatech.com 116647-01A

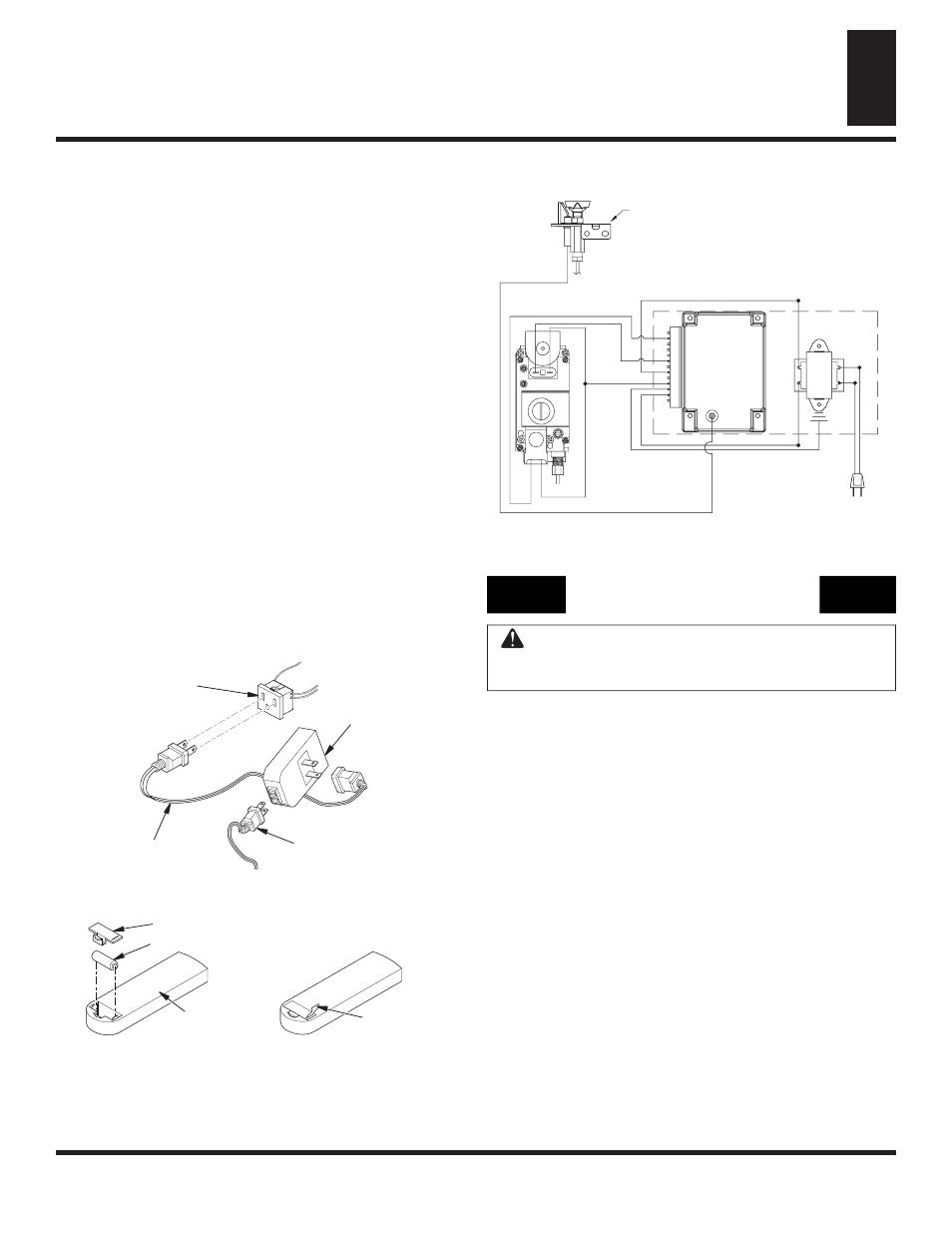

Figure 46 - Installing the WRC Remote Receiver
Fireplace
Receptacle
Remote Control
Receiver
Extension Cord
Ignition
Module Plug
Figure 47 - Installing Battery into Back of Handset
Pull to Remove
Insulation Tab
Battery Cover
12 Volt Battery
Back of
Handset
WALL SWITCH INSTALLATION
The installation of a wall switch allows you to activate the gas
control valve and turn the fireplace on and off. The wall switch
is to be connected to the incoming 120 volt regular household
wiring that supplies the electricity to the fireplace.
OPTIONAL REMOTE CONTROL
INSTALLATION (Model WRC)
Note: If using optional wireless hand-held remote control, the wall
switch must be in the ON position to be operational. The remote control
then becomes the switching mechanism for fireplace operation.
1. Open lower louver panel.
2. The WRC model receiver does not require a battery. The
receiver can be installed by first plugging the short extension
cord into the fireplace receptacle. Then plug the receiver unit
into the extension cord. Finally plug the ignition module plug
into the receiver unit (see Figure 46).
3. Activate the remote handset battery by removing the insulating
tab on the back of the handset (see Figure 47). The battery is
included pre-installed.
4. Once the battery is activated the unit is ready to use.
5. Close lower louver panel.
FIREPLACE INSTALLATION
Continued
EV2
EV1
ORANGE
IGNITOR LEAD
GREEN
PILOT
TRANSFORMER
IS1070
B
SYNETEK CONTROLS IN
C
24V AC
E4
E2
E3
E6
RED
E8
E12
BLUE
120V AC
GROUND
BLACK
WHITE
WIRING DIAGRAM
OPERATING FIREPLACE
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
A. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot
by hand.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighborʼs
phone. Follow the gas supplierʼs instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
