English, Connecting video components – Denon AVR-2801 User Manual
Page 7
ENGLISH
7
IN
IN
OUT
SIGNAL
GND
DVD
EXT. IN
VDP
TV/
DBS
VCR-2/
V.AUX
COAXIAL
VCR-2/
V.AUX
CDR/
TAPE
CDR/
TAPE
VCR-1
VCR-1
OPT.-1
OPT.-2
OPT.-3
FR
LOOP
ANT.
AM
FM
COAX.
75
SW
SR
CD
PHONO
FL
C
SL
SPEAKER SYSTEMS
AUDIO
DIGITAL
C-VIDEO
MONITOR
S-VIDEO
PRE OUT
L
R
L
R
L
R
L
R
L
R
L
R
L
R
B
R
L
A
FRONT
SURROUND
SURROUND
CENTER
FRONT
FRONT
SUB
CENTER
WOOFER
9kHz
10kHz
IN
DVD
IN
VIDEO
R
L
R
OUT
IN
AUDIO
VIDEO
OUT
IN
L
R
L
R
L
R
L
R
OUT
IN
AUDIO
VIDEO
OUT
IN
L
R
L
R
L
R
L
R
OUT
VIDEO
OUT
L
AUDIO
L
R
R
OUT
VIDEO
OUT
L
AUDIO
L
R
R
L
R
L
R
L
R
L
R
L
ANTENNA

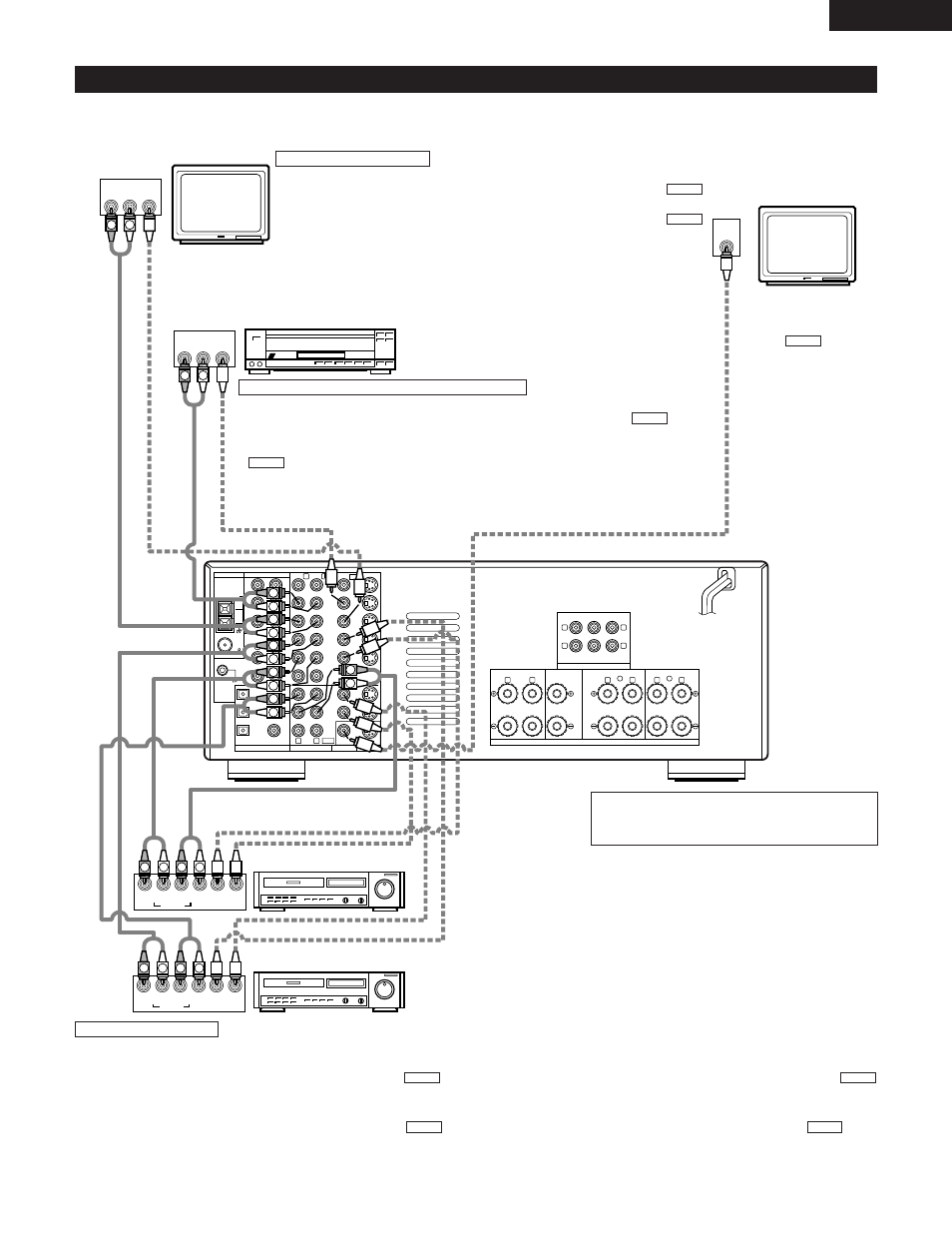

Connecting video components
• To connect the video signal, connect using a 75
Ω
/ohms video signal cable cord. Using an improper cable can result in a drop in video quality.
• When making connections, also refer to the operating instructions of the other components.
TV or DBS tuner
Connecting a TV/DBS tuner
TV/DBS
• Connect the TV’s or DBS tuner’s video output jack (VIDEO OUTPUT) to the
(yellow) TV/DBS IN jack using a 75
Ω
/ohms video coaxial pin plug cord.
• Connect the TV’s or DBS tuner’s audio output jacks (AUDIO OUTPUT) to the
TV/DBS IN jacks using pin plug cords.
AUDIO
VIDEO
DVD player or video disc player (VDP)
Connecting a DVD player or a video disc player (VDP)
VDP
• Connect the video disc player’s video output jack (VIDEO OUTPUT) to the
(yellow)
VDP/DVD IN jack using a 75
Ω
/ohms video coaxial pin plug cord.
• Connect the video disc player’s analog audio output jacks (ANALOG AUDIO OUTPUT) to the
VDP/DVD IN jacks using pin plug cords.
• A DVD player can be connected to the DVD jacks in the same way.
• It is also possible to connect a video disc player, DVD player, video camcorder, game machine,
etc., to the VCR-2/V.AUX jacks.
AUDIO
VIDEO
Monitor TV
MONITOR OUT
• Connect the TV’s video
input jack (VIDEO INPUT)
to the
MONITOR
OUT jack using a 75
Ω
/ohms video coaxial pin
plug cord. (See pages 21.)
VIDEO
Note on connecting the digital input jacks
• Only audio signals are input to the digital input jacks.
For details, see page 6.
Video deck 2
Video deck 1
Connecting a video decks
• There are two sets of video deck (VCR) jacks, so two video decks can be connected for simultaneous recording or video copying.
Video input/output connections:
• Connect the video deck’s video output jack (VIDEO OUT) to the
(yellow) VCR-1 IN jack, and the video deck’s video input jack (VIDEO IN) to the
(yellow) VCR-1 OUT jack using 75
Ω
/ohms video coaxial pin plug cords.
Connecting the audio output jacks
• Connect the video deck’s audio output jacks (AUDIO OUT) to the
VCR-1 IN jacks, and the video deck’s audio input jacks (AUDIO IN) to the
VCR-1
OUT jacks using pin plug cords.
*
Connect the second video deck to the VCR-2/V.AUX jacks in the same way.
AUDIO
AUDIO
VIDEO
VIDEO
