ENGLISH

35

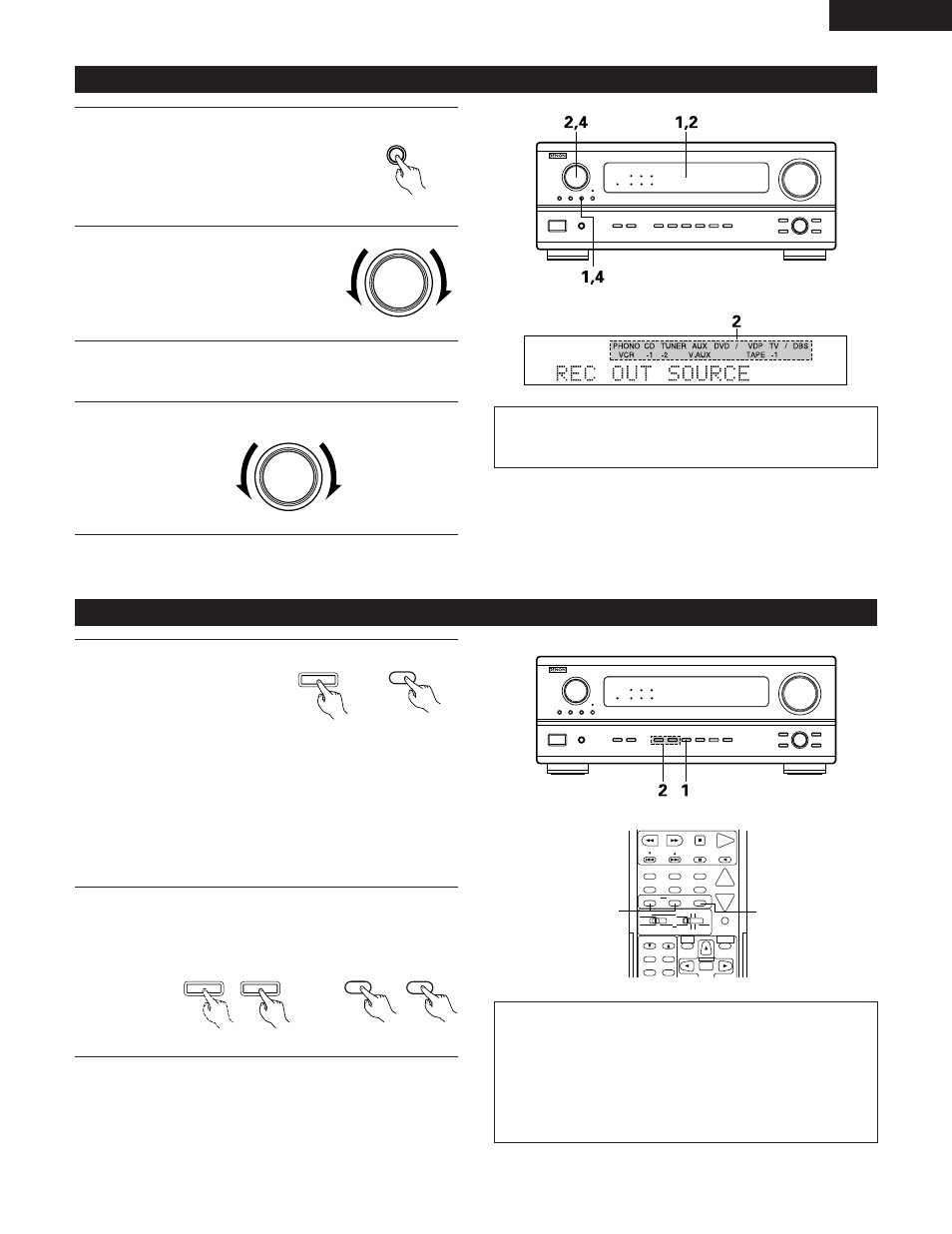

Recording using the REC OUT selector

1

REC SELECT

2

With “REC OUT SOURCE” displayed,
turn the FUNCTION knob to select the
source you wish to record.
• The “REC” indicator and the indicator

of the selected source light.

FUNCTION

3

Set the recording mode.
• For operating instructions, refer to the manual of the

component on which you want to record.

4

To cancel, turn the function knob and select “SOURCE”.

FUNCTION

Display

NOTES:
• Digital signals are not output from output jacks.
• Only the currently playing source can be recorded to CDR/TAPE.

Press the REC SELECT button.

(Main unit)

(Main unit)

(Main unit)

Playback using the external input (EXT. IN) jacks

1

Set the external input (EXT.
IN) mode.
Press the EXT. IN to switch
the external input.

EXT.IN

EXT.IN

(Main unit)

(Remote control unit)

Once this is selected, the input signals connected to the FL
(front left), FR (front right) and C (center) channels of the EXT.
IN jacks are output directly to the front (left and right) and
center speaker systems as well as the pre-out jacks without
passing through the surround circuitry.
In addition, the signal input to the SW (subwoofer) jack is
output to the PRE OUT SUBWOOFER jack.

2

Cancelling the external input mode
To cancel the external input (EXT. IN) setting, press the INPUT
MODE (AUTO, PCM, DTS) or ANALOG button to switch to
the desired input mode. (See page 32.)

INPUT MODE

ANALOG

INPUT MODE

ANALOG

(Main unit)

(Remote control unit)

• When the input mode is set to the external input (EXT. IN), the play

mode (DIRECT, STEREO, DOLBY/DTS SURROUND, 5CH STEREO
or DSP SIMULATION) cannot be set.

NOTES:
• In play modes other than the external input mode, the signals

connected to these jacks cannot be played. In addition, signals
cannot be output from channels not connected to the input
jacks.

• The external input mode can be set for any input source. To

watch video while listening to sound, select the input source to
which the video signal is connected, then set this mode.

SPEAKER

TUNING

BAND

TITLE

MENU/GUIDE

MODE

DOLBY / DTS

SURROUND

DIRECT

DSP SIMULATION

5CH STEREO

STEREO

INPUT MODE

ANALOG

EXT.IN

MUTING

MASTER VOL.

VOLUME

DISC SKIP+

AVR/AVC

VIDEO

DVD

TV

AUDIO

VDP

VCR

CD

CDR/MD

DECK

SYSTEM

SETUP

SURROUND

PARAMETER

CH SELECT

SELECT

ENTER

2

1
