16 Installing the DLL2020-WO
B) Keyboard Wedge direct power
For those systems which supply electrical power on the keyboard
port (minimal requirements: +5 V dc, 250 mA), the following set-up
is applicable.
Plug the cable with the 10-pin modular jack into the scanner port
until a firm ‘click’ is heard.
Connect the female connector at the other cable end to the
keyboard.
Plug the male connector into the keyboard port of your computer.

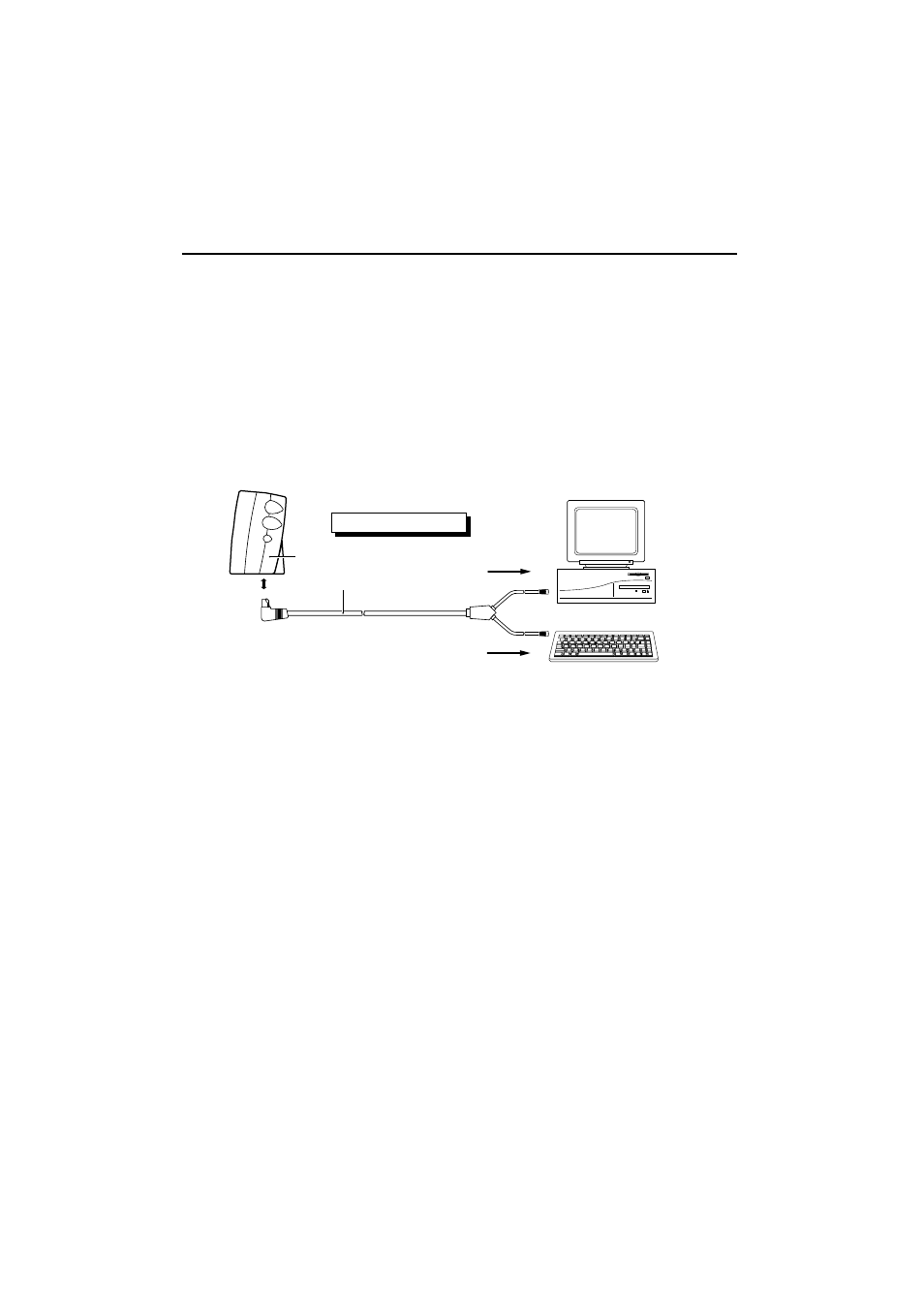

Keyboard Wedge direct power
Polaris
Cable
computer
To computer
To keyboard
DLL2020-WO
