www.desatech.com 119303-01A 16
PRESSURE TESTING FIREPLACE GAS
CONNECTIONS
1. Open equipment shutoff valve (see Figure 21,
page 15).
2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP
supply tank valve.
3. Make sure control knob of fireplace is in the
OFF position.
4. Check all joints from equipment shutoff valve
to gas control valve (see Figures 22 or 23).
Apply noncorrosive leak detection fluid to all
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light fireplace (see Operating Fireplace, page
17. Check all other internal joints for leaks.
7. Turn off fireplace (see To Turn Off Gas to
Appliance, page 18, depending on your
model).
insTallaTion
Continued
INSTALLING LOGS
WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specifically
approved with this heater may
result in property damage or
personal injury.
CAUTION: Do not remove
the data plates attached to the
heater base assembly. The data
plates contain important safety
and warranty information.
It is very important to install these logs exactly
as instructed. Do not modify logs. Only use logs
supplied with heater.
1. Place bottom log in center of the base assem-
bly as shown in Figure 24.
2. Rest rear log in back corner sections of base
assembly as shown in Figure 24. Make sure log
is completely vertical and not leaning in toward
burner where the flame will touch the log.
3. Position front right log against right side of
grate prongs (see Figure 24).
4. Position front left log against left side of grate
prongs (see Figure 24).
5. Place middle right log over front right and
bottom logs as shown in Figure 25, page 17.
Be sure hole in middle right log seats over pin
in bottom log.
6. Place middle left log over front left and bot-
tom logs as show in Figure 25. Be sure hole in
middle left log seats over pin in front left log.

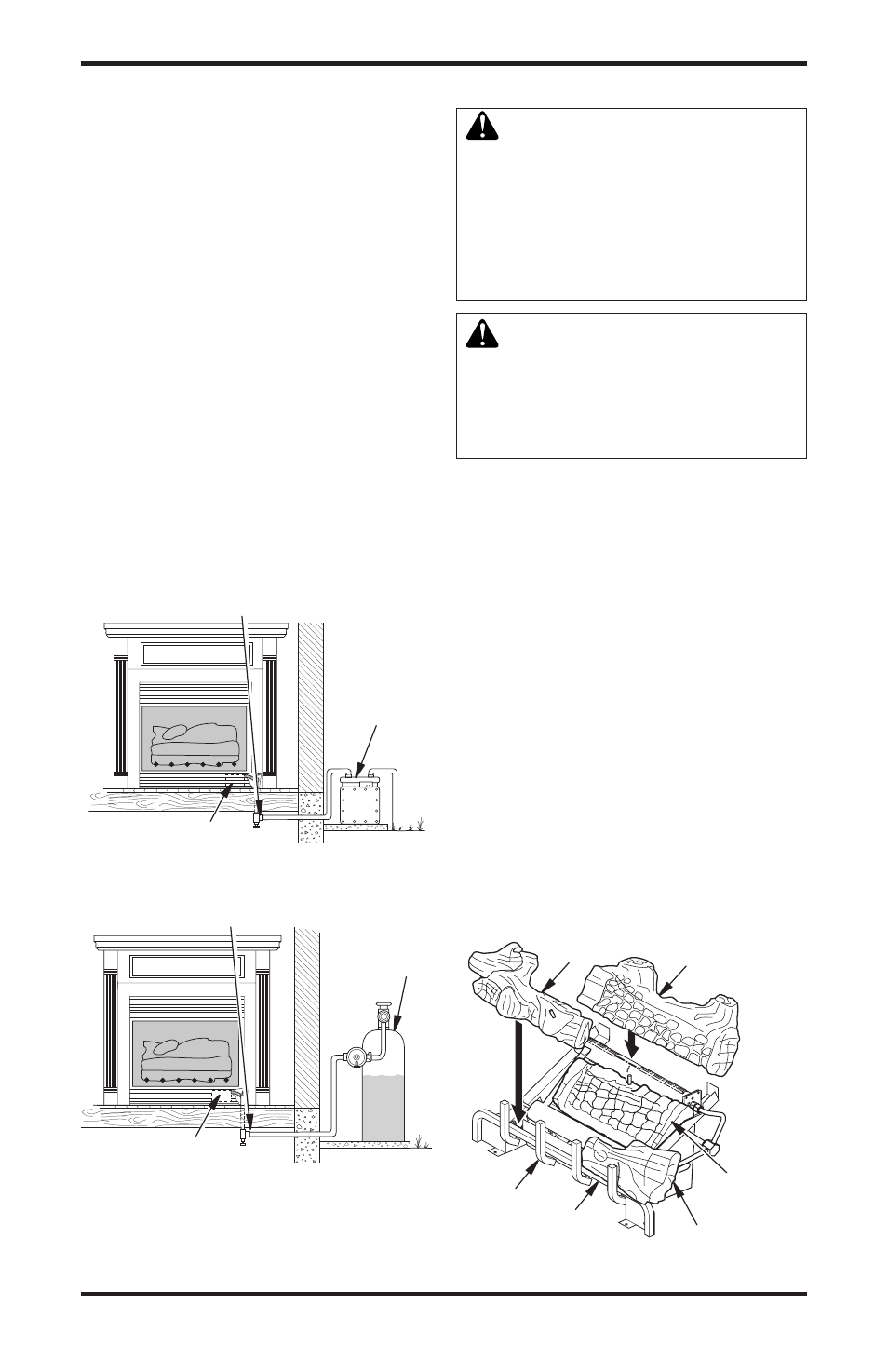

Figure 23 - Checking Gas Joints for
Propane/LP Gas
Propane/LP
Supply Tank
Figure 22 - Checking Gas Joints for
Natural Gas
Gas Control Valve
Equipment Shutoff Valve
Equipment Shutoff Valve
Gas Meter
Gas Control Valve
Figure 24 - Installing Bottom Logs
Rear Log
Grate
Prongs
Bottom
Log
Base
Assembly
Front Right
Log
Front
Left Log
