www.desatech.com 119303-01A 11
insTallaTion
Continued

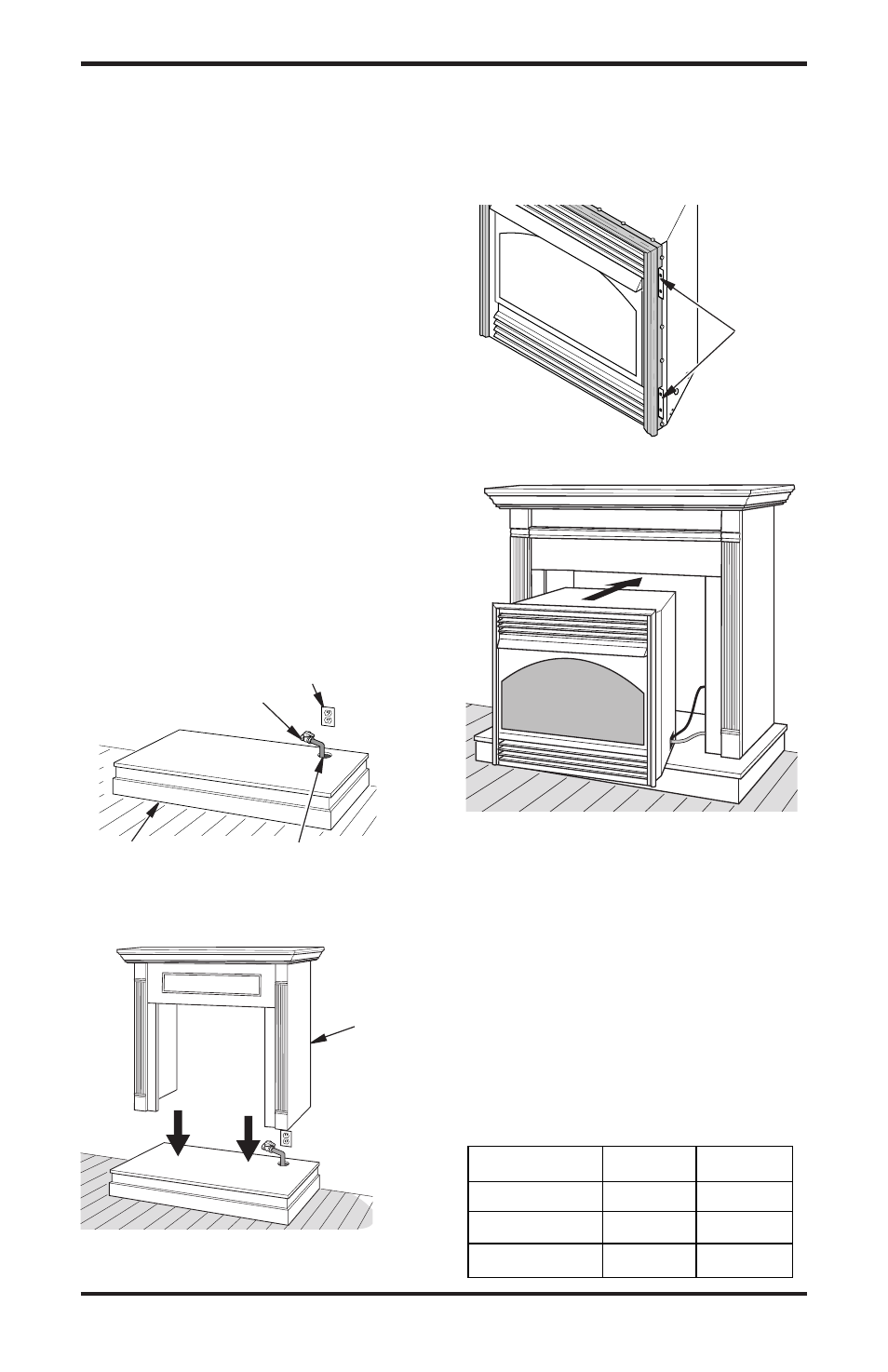

Figure 9 - Placing Hearth Base
Accessory Against Wall
Electrical Outlet
Hearth Base
Rigid Pipe and Gas
Shutoff Valve
Gas Line Access Hole
Figure 10 - Installing Cabinet Mantel
Cabinet
Mantel
Figure 11 - Location of Nailing Flanges
Nailing
Flanges
5. Route flexible gas line through access hole in
hearth base.
6. Center cabinet mantel on hearth base (see Figure
10). Make sure mantel is flush against wall.
7. Break off nailing flanges (see Figure 11) with
hammer or pliers.
8. Place cardboard or other protective material
on top of hearth base. Carefully set fireplace
on protective material, with back of fireplace
inside mantel opening.
9. If blower is installed, route blower electrical cord
through access holes in either side of fireplace.
Note: Bushing may be moved if necessary. Plug
electrical cord into electrical outlet.
10. Carefully insert fireplace into cabinet mantel.
Be careful not to scratch or damage hearth base,
cabinet mantel, or any laminate trim on hearth
base. Remove protective material from top of
hearth base and from front of fireplace (if any).
Note: You can secure fireplace to hearth or
floor. Open lower louver. Locate screw holes in
bottom of base. Tighten wood screws through
these holes and into hearth or floor.
11. Attach flexible gas line from fireplace gas
regulator to gas supply. See Connecting
Fireplace to Gas Supply, page 14.
12. Check all gas connections for leaks. See
Checking Gas Connections, page 15.
Actual Framing
Height 3 3 /
8
" 33"
Front Width 34 5 /
16
" 35 1 / "
Depth 16 11 /
16
" 17 3 /
4
"
BUILT-IN FIREBOx INSTALLATION
Built-in installation of this firebox involves install-
ing firebox into a framed-in enclosure. This makes
the front of firebox flush with wall. Optional brass
trim accessories are available (see Accessories,
page 20). The brass trim will extend past sides
of firebox approximately 1/2". This will cover
the rough edges of the wall opening. If installing
a mantel above the firebox, you must follow the
clearances shown in Figure 6, page 10. Follow
the instructions below to install the firebox in
this manner.
Figure 12 - Inserting Fireplace into
Cabinet Mantel
