Directed Video DV2602 - Manual (Page 13)

V VE EH HIIC CL LE E P PO OW WE ER R C CO ON NN NE EC CT TIIO ON N

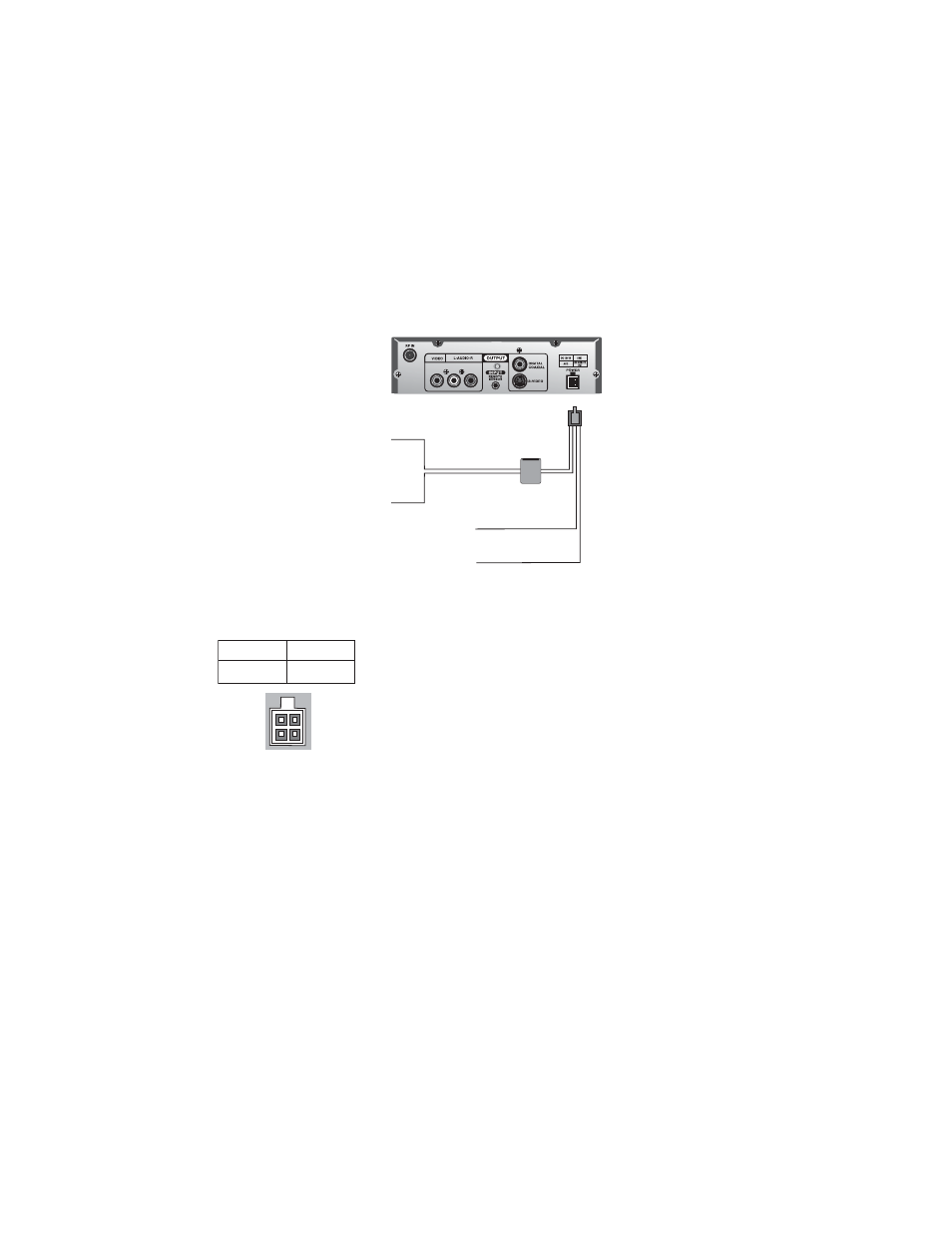

For vehicle power applications, use the following connection diagram. The cable
provided for this connection has two in-line fuses and a choke assembly with fuse.
N NO OTTEE:: The +RED wire should be connected directly to the vehicle’s car
battery.
D DIIS SC C P PL LA AY YE ER R P PO OW WE ER R R RE EC CE EP PT TA AC CL LE E
The power receptacle at the rear of the player is shown at
the left. If the power from the car is shut-off using the
ignition key (ACC). The disc player will automatically shut-
off. If a disc was playing, the player will remember the
position of the playback at the time of shut-down. When
the disc player is turned on again, the disc will continue
play from the point at which it was shut-down.
If the disc player is off, a disc can be ejected by momentarily pressing the Power
button on the front of the player. The disc will eject and a few seconds later the
player will automatically power off.
The output receptacle has a 12V remote output. This connection provides +12V at
0.5A when the disc player is on. This output is for use as an extra on/off control
for an external amplifier or other device.
DC 12V IN
ACC
GND
12V REMOTE
OUT
-BLACK
YELLOW
CHOKE
+RED
BLUE
+12V
BATTERY 12VDC
GROUND
ACC (IGNITION SWITCH)
REMOTE OUT
© 2004 Directed Electronics, Inc.
1 13 3
